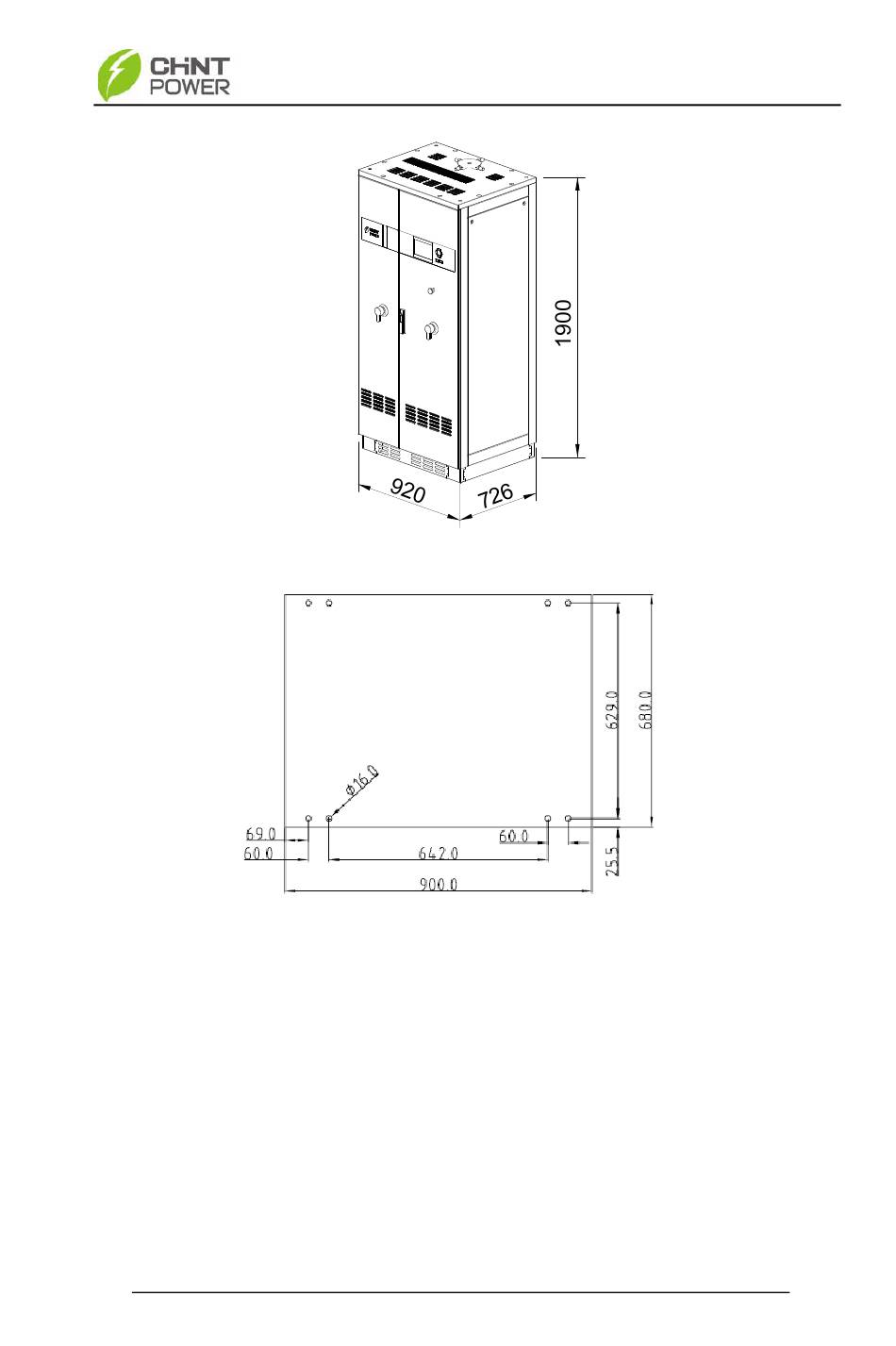

Figure 3-2 Sketch of foundation installation dimensions
(2) Requirements on inverter installation：
Front door: A 560mm space should be reserved to
ensure that the front door can be opened and closed freely.
Back: A 600mm space should be reserved to allow for
maintenance.
Top: A 600mm space should be reserved for heat
dissipation.
Figure 3-1 Sketch of dimensions
Chapter 3 Installation
7
