Summary of Contents for Infineon TRAVEO T2G Cluster 4M Lite Kit
- Page 1 QUICK START GUIDE TRAVEO™ T2G Cluster 4M Lite Kit KIT_T2G_C-2D-4M_LITE Kit contents 1. KIT_T2G_C-2D-4M_LITE REV-01 kit 2. USB Type-C to Type-C cable www.infineon.com/traveoc2d4mlitekit...
- Page 2 Powering up the kit 1. Ensure that you have the following: – X103 (shorted between 2-3) – X104 (shorted) – X402 (shorted) 2. Connect the Type-C cable between X500 and Type-C port of the PC. 3. Observe that the following power LEDs glow: –...

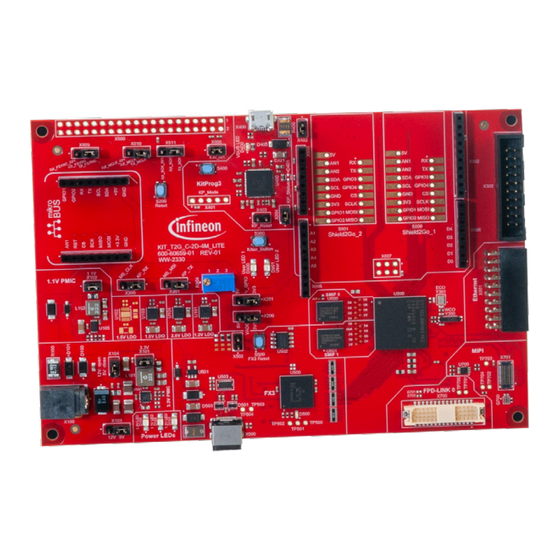

- Page 3 KIT_T2G_C-2D-4M_LITE REV-01 board details 12V input power jack (X100) 14 Connector compatible with Shield2Go (Shield2Go_1-S800)* Power LEDs (D104, D102, and D103) 15 Connector compatible with USB Type-C connector (X500) Shield2Go (Shield2Go_2-S801)* EZ-USB FX3 (CYUSB3014-BZXC – U500) 16 USB micro-B connector (X400) 64 Mb HYPERRAM (S27KL0642DPBHA020 -U601) 17 PSoC...
- Page 4 Contact Technical Support to obtain kit documents and so ware examples. Document number: 002-39115 Rev. ** Published by Infineon Technologies AG All rights reserved. © 2023 81726 Munich, Germany Date: 11 / 2023 Infineon Technologies AG...
