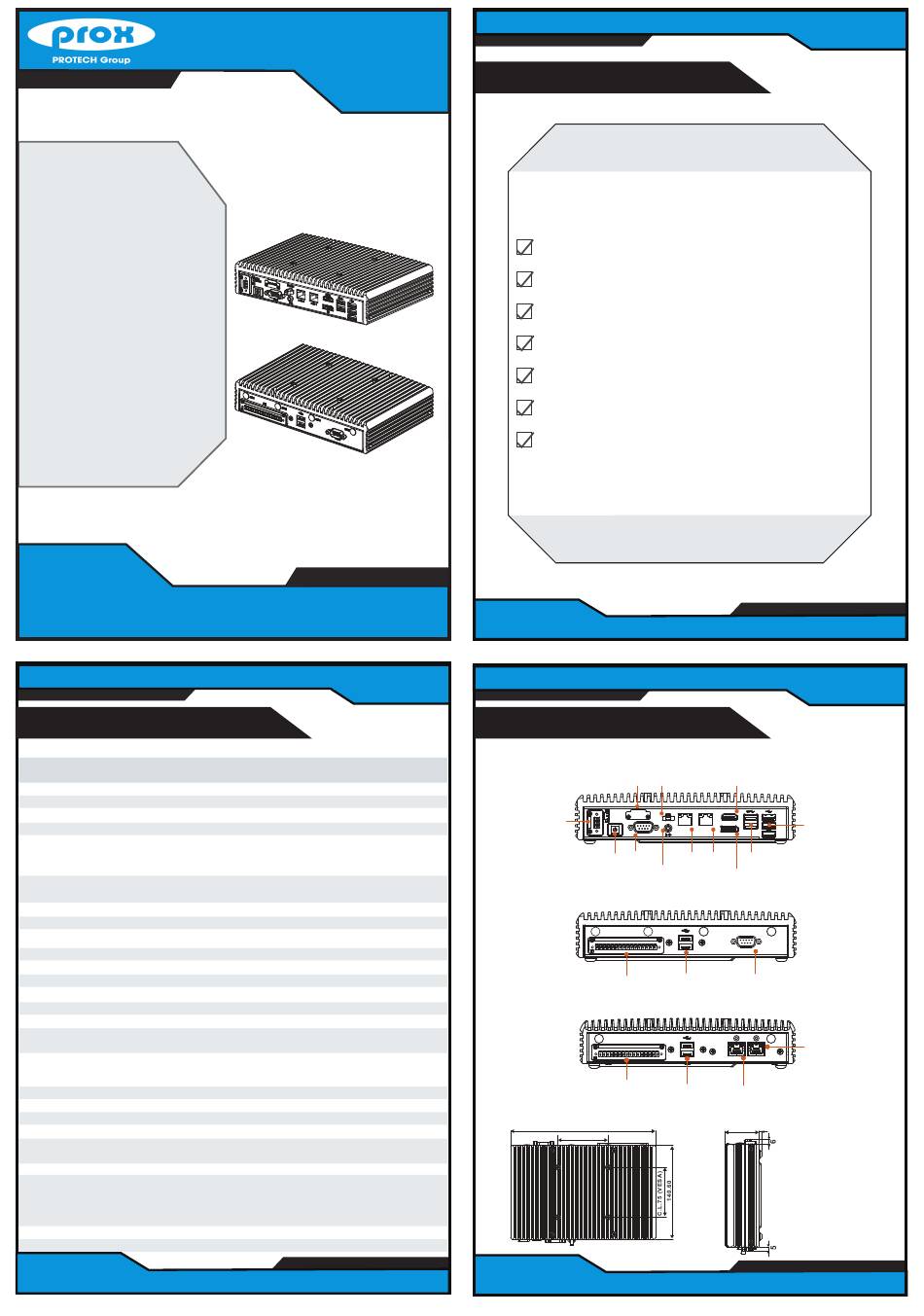

protech prox BS-U830 Quick Reference Manual

BS-U830
Quick
Reference
Guide

Specifications

System
Intel ® Elkhart Lake Atom
CPU Support
®
Intel Celeron
Memory Support 1 x DDR4 SO-DIMM sockets (up to 32GB) (non-ECC)
Storage Support 1 x 2.5" 7mm SATAIII HDD / SSD drive space
Power Supply Supports DC 12/24V power input
O.S. Support Windows ® 10 64bit / Windows
1 x full-sized mPCIe slot (with PCIe and USB signals)
Expansion Slots
1 x M.2 slot M-Key NVMe (PCIeX2), supports 2280 size only
1 x M.2 slot E-Key for wireless module
Dimensions (WxHxD) 217.5 x 140.6 x 49 mm (w/o root foot)
217.5 x 140.6 x 50 mm (with root foot)
Weight
2 Kg
Certifications FCC/CE
I/O Ports (Front Side)
USB 3 x USB 2.0 / 2 x USB 3.0
Display
1 x DP, 1 x HDMI
LAN
2 x 2.5GbE LAN, supports Wake-On-LAN
Sound 1 x Line Out
Serial Port
COM1: RS-232/422/485, support 5V/12V by jumper selection
SIM Slot 1 x Micro SIM slot
Power On / Off 1 x Power Button with Power LED
1 x 2-Pin Remote Switch
3-Pin DC In terminal block (lockable)
Power Input
I/O Ports (Rear Side)
Serial Port COM2: RS-232/422/485 for NORMAL Sku only
PoE 2 x PoE with GbE LAN for PoE Sku only
2 x USB 2.0
USB
DIO 6 in / 6 out (including 5V x2 & GND x2)
Normal Sku: 4 x Antenna holes for reservation
Antenna Holes
PoE Sku: 2 x Antenna holes for reservation
Environment
Operating Temp. SSD: -40°C ~60°C (-40°F~140°F) for Atom Sku
(Ambient with airflow) HDD: -40°C ~40°C (-40°F~104°F) for Atom Sku
SSD: 0°C ~50°C (32°F~122°F) for other Skus
HDD: 0°C ~40°C (32°F~104°F) for other Skus
Storage Temp. -40°C ~85°C (-40°F~185°F)
20% ~ 90%
Humidity
All Rights Reserved. Copyright 2023
BS-U830
® / Celeron ® SoC CPU
® ® ®
J6412 / Atom x6212RE / Atom x6425RE
(3-pin lockable terminal block)
® 11 / Ubuntu 20.04 64bit

Packing Checklist

If you discover any item below damaged or lost,
please contact your vendor immediately.
BS-U830
Power Adaptor
This Quick Reference Guide
Driver / Manual DVD
Mini Jumper (2.0 mm)
HDD Thermal Pad
M2 screw for mPCIe / M.2 module
Ver. Q5

System View

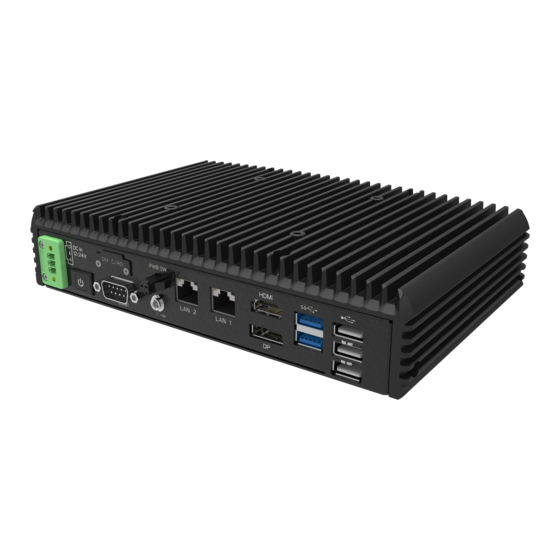

Front View
DC In
12/24V
Rear View (Normal Sku)
Rear View (PoE Sku)
Top View
C.L.75 (VESA)
SIM
Remote
Slot Switch
HDMI
PWR SW HDMI
DC-In
SIM CARD
12/24V
LAN 2
LAN 1
DP
COM1
Power LAN2 LAN1
COM1 USB 3.0
Button
Line Out
DP
ANT1 ANT3 ANT4
DIO
COM2
USB 2.0
COM2
DIO
ANT1
PoE
DIO
LAN3
DIO
USB 2.0
LAN3
Side View
217.50 46
BS-U830
x 1
x 1
x 1
x 1
x 4
x 1
x 3
BS-U830
USB 2.0
ANT2
ANT2
LAN4
(option)
LAN4
(option)
Unit: mm
