protech prox BS-E097 Quick Reference Manual

BS-E097
Quick
Reference
Guide
Specifications
System
®
CPU Type Intel Celeron
®
Intel Celeron
® ®
Intel Atom
Memory Support 1 x SO-DIMM socket, supporting 1600/1866 DDR3L DRAM
up to 8G (non-ECC)
API Hardware monitor / WatchDog
Storage Support 1 x 2.5" 7mm SATAIII HDD / SSD drive space
Power Supply Supports DC 12V and 16~24V power input
(3-pin lockable terminal block )
Power Adaptor 60W adapter w/ lockable 3-pin terminal block (optional)
Operating System Windows 10 64bit / Ubuntu 17.04 64bit (kernel: 4.4)
Expansion Slots 1 x full-sized mPCIe slot (with PCIe and USB signals)
1 x full-sized mSATA slot (with SATA and USB signals)
Dimensions / Weight 217.5mm x 46.6mm x 140.6mm (WxHxD) / 2kg
Certificate FCC/CE
I/O Ports (Front side)
USB Normal SKU: 2 x USB 2.0 / PoE SKU: N/A
Serial Ports COM1: RS-232
COM2: RS-232/422/485 selectable by BIOS(Default: RS-232)
COM3&4: RS-232 w/ RI/5V/12V selectable by jumper
Normal SKU: COM1~3 & COM4 or DIO (Default: COM4)
PoE SKU: COM2~3 & COM1 or DIO (Default: COM1)
Antenna Holes Normal SKU: 4 x antenna holes for reservation
PoE SKU: 2 x antenna holes for reservation
LAN Normal SKU: N/A / PoE SKU: 2 x PoE LAN or 2 x GbE LAN
I/O Ports (Rear side)
1 x HDMI1.4a, resolution: up to 4096x2160 @60Hz
Display
1 x VGA, resolution: up to 1920x1200@60Hz
USB / Sound 4 x USB 3.0 / Line Out
LAN 2 x GbE LAN (support Wake-on-LAN) / LAN1 & 2: Intel
Power On / Off 1 x Power Button & 1 x Extended Power Switch
LED 1 x Power LED
Environment
SSD: 0°C~60°C (32°F~140°F)
Operating Temp.
HDD: 0°C~40°C (32°F~104°F)
-40°C ~85°C (-40°F~185°F)
Storage Temp.
Humidity
20% ~ 90%
All Rights Reserved. Copyright 2021
BS-E097
®
J3455: 10w, 4C, 2.3GHz
®
N3350: 6w, 2C, 2.4GHz
x5-E3940: 10w, 4C, 1.8GHz
Packing Checklist
If you discover any item below damaged or lost,
please contact your vendor.
BS-E097
This Quick Reference Guide
Driver/ Manual DVD
3-Pin Terminal Block
Ver. Q2

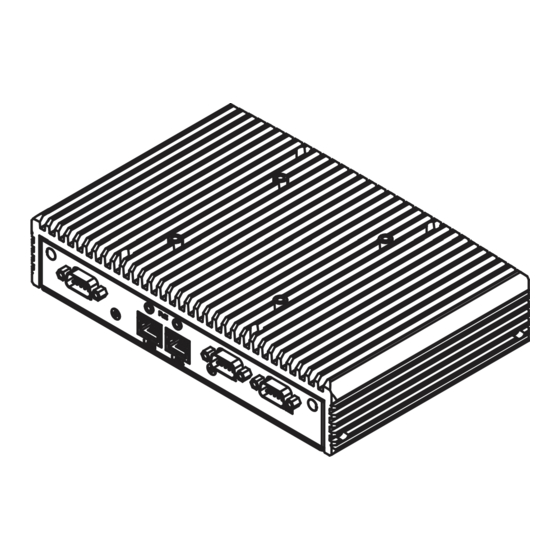

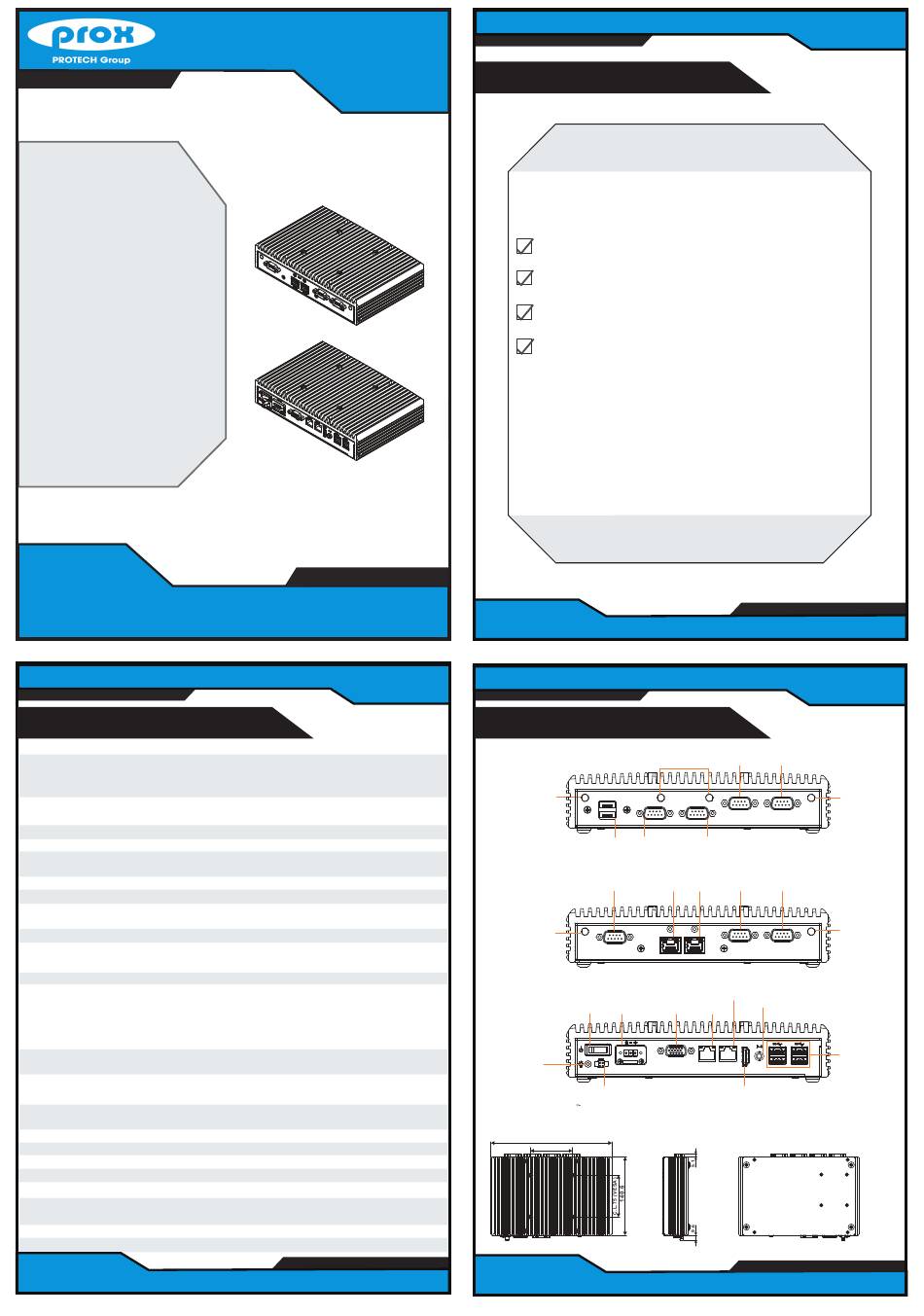

System View
Front View (Normal SKU)
Antenna
Front View (PoE SKU)
Antenna
Rear View
Power
Button
(Default: RI)
Power LED
Top View
217.5
®
I210AT
C.L.75 (VESA)
Antenna COM2
ANT3
ANT2
ANT1
COM2
USB2.0
DIO or COM4 COM3
USB 2.0 DIO/COM4 COM3
COM3 LAN3 LAN4 COM2
PoE
COM2
COM3
LAN3 LAN4
LAN1
DC Power
Input
VGA LAN2
LAN2 LAN1 HDMI
VGA
DC IN (12/24V)
Ext. PWR SW
Extended
HDMI
Power Switch
Side View Bottom View
BS-E097
x1
x1
x1
x1
BS-E097
COM1
Antenna
ANT4
COM1
DIO/COM1
Antenna
DIO or COM1
Line Out
4 x USB 3.0
