protech prox BS-E099 Quick Reference Manual

BS-E099
Quick
Reference
Guide
Specifications
System
®
CPU Intel Kabylake U Series
®
Intel Core™ i5-7300U
Intel ® Core™ i3-7100U
Intel ® Pentium
Memory Support 1 x DDR4 SO-DIMM sockets (up to 16GB)
Power Supply 4-pin ATX Power Input Connector (12V /19V / 24V)
Expansion Slots 1 x full-sized mSATA slot
1 x full-sized mPCIe
SATA 1 x SATAIII (6.0Gb/s)
Dimensions (WxHxD) 218 x 45 x 148mm
Weight Approx. 2kg
Operating System Windows 10 64bit / Ubuntu 16.04 64bit
Certifications FCC/CE
I/O Ports
Display 1 x DP (rear I/O) / 1 x HDMI (rear I/O)
USB For Core-i5 / i3 SKU:
2 x USB 2.0 (front I/O, option)
2 x USB 3.0 (rear I/O), 4 x USB 2.0 (rear I/O)
For Pentium SKU:
2 x USB 3.0 (rear I/O), 4 x USB 2.0 (rear I/O)
Serial Ports COM1 for RS-232
COM2 for RS-232/422/485 selectable under BIOS
COM3 /COM4 for RS-232, option
LAN 2 x GbE LANs
DIO Port 1 x DIO ( 8 in / 8 out), signal/power: 5V, option
Audio 3.5mm phone jack Line Out
Expansion Slots For Core-i5 / i3 SKU:
1 x full-sized mSATA slot (with USB signals)
1 x full-sized mPCIe slot (with SATA / USB signals)
For Pentium SKU:
1 x full-sized mSATA slot (with SATA signals only)
1 x full-sized mPCIe slot (with PCIe / USB signals)
I 2 C Port 1 x 4-pin I 2 C port, option
Environment
Operating Temp. 0°C ~ 60°C (32°F~140°F)
Storage Temp. -40°C ~ 80°C (-40°F~185°F)
Humidity 20% ~ 95%
All Rights Reserved. Copyright 2020
BS-E099
® 4415U
(default: RS-232)
Packing Checklist
If you discover any item below damaged or lost,
please contact your vendor immediately.
BS-E099
This Quick Reference Guide
Driver/ Manual DVD
Mini Jumper (2.0 mm)
Ver. Q1

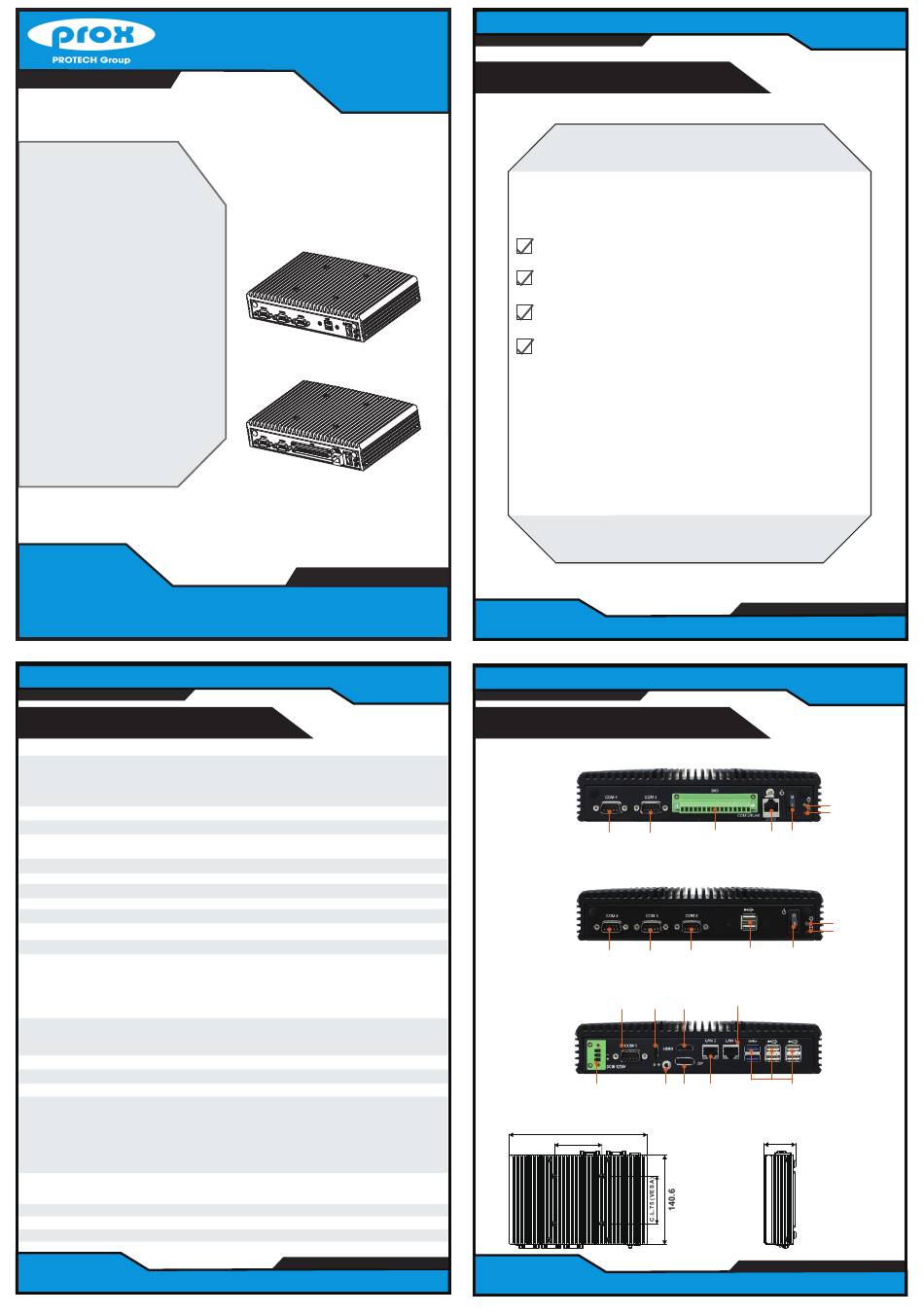

System View

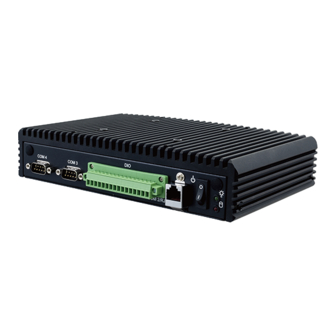

Front View (Type 1)
Front View (Type 2)
Rear View
Top View
218
C.L.75 (VESA)
DIO
COM2
COM3
COM4
(option) (option)
USB
COM4 COM3 COM2
(option) (option)
LAN1
2
COM1 I C HDMI
DC In
Line
DP LAN2
Out
Side View
BS-E099
x1
x1
x1
x2
BS-E099
Power LED
HDD LED
Power
Switch
Power LED
HDD LED
Power
Switch
USB
Unit: mm
50
