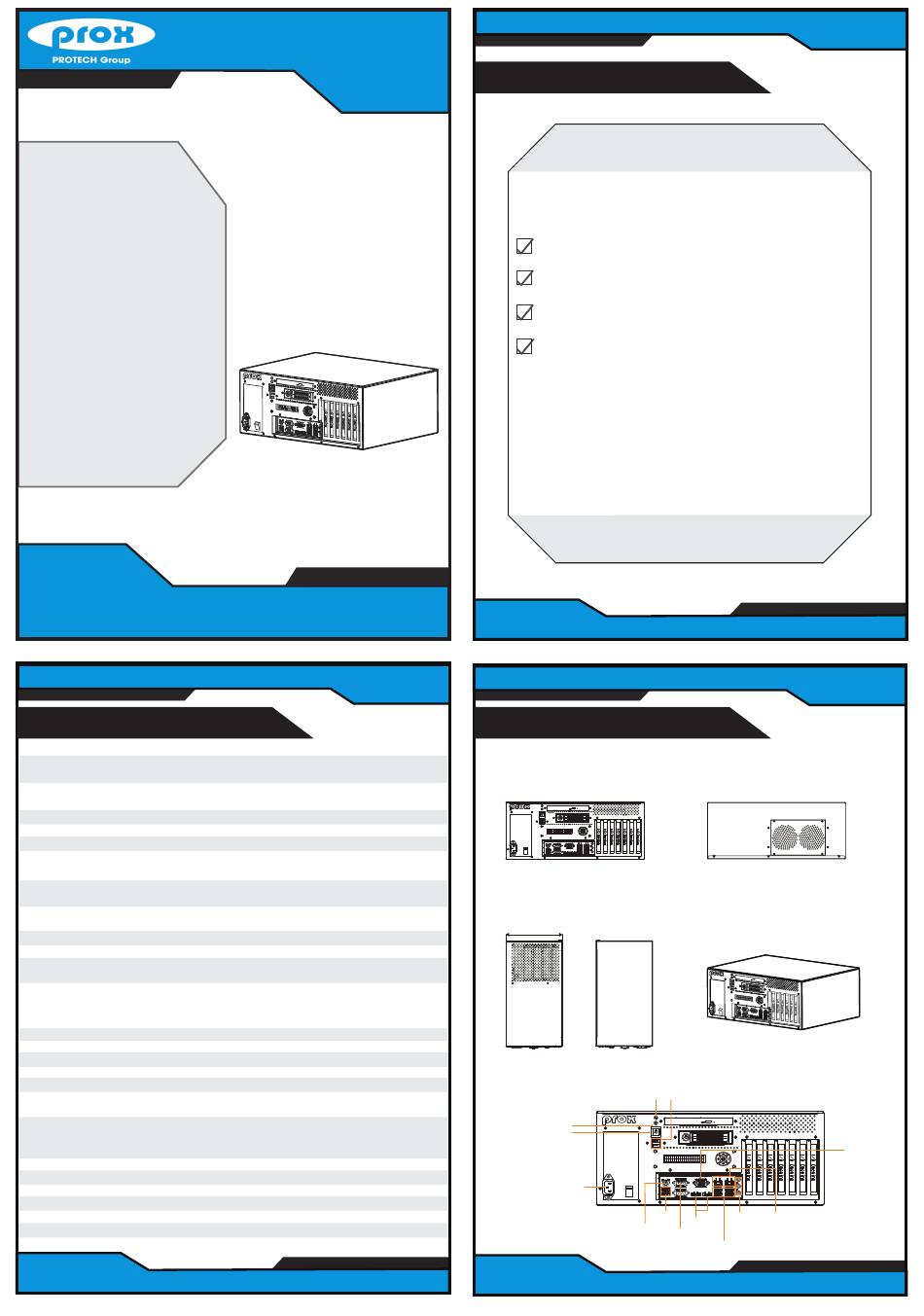

protech prox BC-2602 Quick Reference Manual

BC-2602
Quick
Reference
Guide
Specifications
System
®
CPU Intel 9th / 8th Gen. Core™ i7/ i5 / i3 /Pentium
®
Xeon E-2200 / E-2100 server CPU
Memory Support C246/Q370: 4 x DDR4 SO-DIMM sockets (up to 64GB)
H310: 2 x DDR4 SO-DIMM sockets (up to 32GB)
Power Supply ATX 500W power
O.S. Support Windows ® 10 IoT Enterprise
Dimensions (WxHxD) 430 x 331.3 x 177mm
Certificate FCC/CE
I/O Ports
SATA Interface C246/Q370: 6 x SATA III (6.0Gb/s) with RAID 0,1,5,10
H310: 4 x SATA III (6.0Gb/s) without RAID
USB C246/Q370: 4 x USB 3.1, 2 x USB 2.0
H310: 2 x USB 3.1, 4 x USB 2.0
Serial Ports COM1(RS-232) & COM2
Parallel Port 1 x LPT connector
®
Dual LAN (RJ45) LAN1: Intel
Supports Wake-On-LAN & PXE
C246/Q370: 1 x PCIe (x16) slot / 3 x PCIe (x4) slots /
Expansion Bus
1 x PCIe (x1) slot / 2 x PCI slots / 1 x mini PCIe slot
H310: 1 x PCIe (x16) slot / 1 x PCIe (x4) slot / 2 x PCI slots
FAN 1 x CPU fan, 2 x system fans
M.2 Slot 1 x M.2 slot, NVMe up to PCIeX4, support 2242 & 2260
SIM Slot 1 x SIM slot
KB & MS 1 x PS/2 Combo connector for keyboard & mouse
Audio Mic In / Line In / Line Out
LPC 1 x LPC pin header for TPM module
Display
Flexible Display Standard SKU: 1 x VGA, 2 x DP
C246/Q370 support triple independent display
H310 supports dual independent display
Others
I C 2 x I C 4-pin wafer
2 2
Front Panel LED HDD LED, Power LED, Power Switch
TPM on board (option) Co-lay TPM1.2 / TPM2.0 chip (optional)
Environment
Temperature Operating: 0~40°C (32~104°F) / Storage: -40~85°C (-40~ 85°F)
Humidity 20%~ 90% (non-condensing)
All Rights Reserved. Copyright 2020
BC-2602
®
/ Celeron
(RS-232/422/485 selectable under BIOS)
®
PHY 219LM / LAN 2: Intel LAN 211AT
Packing Checklist
If you discover any of the items below are
damaged or lost, please contact your vendor.
BC-2602
This Quick Reference Guide
Driver/ Manual DVD
Mini Jumper (2.0 mm)
Ver. Q1
System View
Front View
®
CPU
Side View
177
I/O View
HDD LED
Power Switch
Power
Rear View

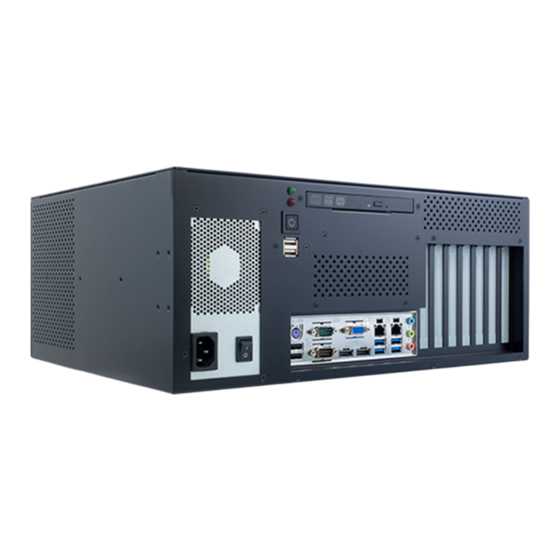

Quarter View
Power LED
2 x USB 2.0 Port
Audio
USB 2.0
DP
Connector
PS/2 Keyboard/
COM2
Mouse Combo
COM1
4 x USB 3.1 Port
BC-2602
x 1
x 1
x 1
x 6
BC-2602
Unit: mm
VGA
LAN
