protech prox BM-D025 Quick Reference Manual

BM-D025
Quick
Reference
Guide

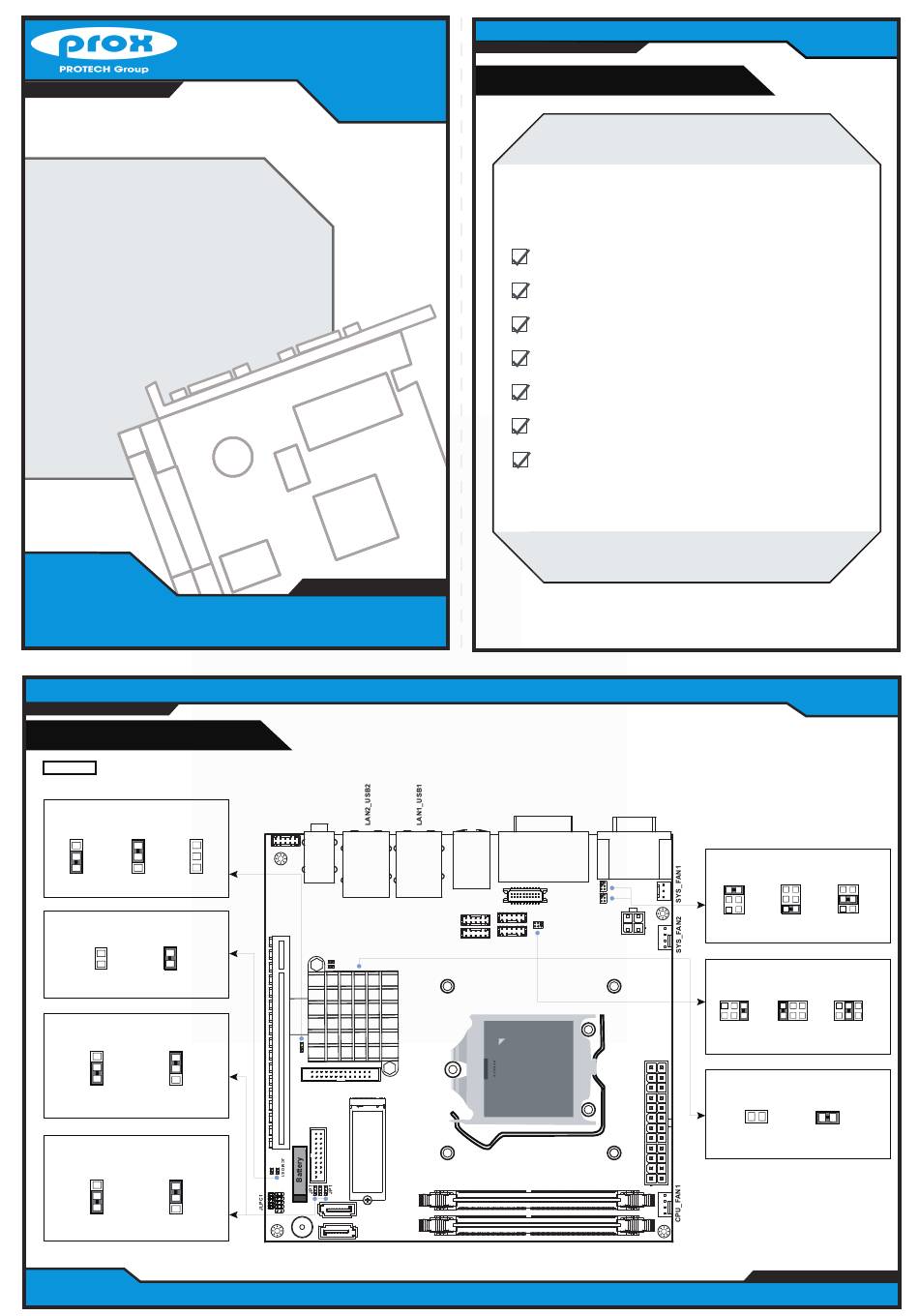

Jumper Setting

CAUTION! Danger of explosion may occur if the battery is replaced incorrectly. Replace batteries only with the same or equivalent type recommended by the manufacturer.
Dispose the used batteries according to the manufacturer's instructions.
JP4 PCH Configuration /
Recovery Selection
1
1
1
Normal Configure Recovery
(default)
JCMOS1 Clear CMOS Data
Selection
1 1
Normal
Clear CMOS
(default)
JP1 Flash Descriptor Override
Selection
1 1
Normal MCU Override
(default)
JP7 LPC Connector IRQ /
GND Selection
1 1
IRQ GND
(default)
Ver. Q1
All Rights Reserved. Copyright 2021
AUDIO1
JAUDIO1
2
9
1
10
PCI_E1
JP5
1
JP_AT1
1
PCH
1
JP4
14 26
1 13
LPT1
M2_SSD1
USB1
11
10
M.2 SSD
JP7
1
1 20
JFP1
SO-DIMM1
1 2
9 1 1
1 7
SATA1
9 10 1
SO-DIMM2
Buzzer
SATA2
7 1

Packing Checklist

If you discover any item below are damaged or
lost, please contact your vendor immediately.
BM-D025
This Quick Reference Guide
Manual/Driver DVD
Mini Jumper 2.0 mm
SATA Lock Cable (420 mm)
PS/2 KB and MS Cable (250 mm)
I/O Shield
COM2
DVI1 COM1
KB_MS_
USB1
1 2
20 2 JPCOM1
5 6
DP1
1 2
JPCOM2
5
6
19 1
COM6
3
5 1 COM3
6 10
10 6
12V
1 5 5 1
JPCOM4
GND
6 2
5 1
6 10
1
10 6
1 5
COM4
ATX_PWR2
COM5
Intel ® 10th
ATX_PWR1
Gen. CPU
(LGA1200)
JPCOM1/2 Port RI & Voltage
Selection
1
1 2
1 2
5 6
5 6
4
RI +5V
12V
GND
(default)
2
1
JPCOM4 Port RI & Voltage
Selection
5 1 5
2
6 6
RI +5V
(default)
12 24
JP_AT1 Hardware Power
Failure Selection
1
Disable
(default)
1 13
1
BM-D025
x 1
x 1
x 1
x 6
x 1
x 1
x 1
BM-D025
1 2
5 6
+12V
1 5 1
2 2
6
+12V
1
Enable
