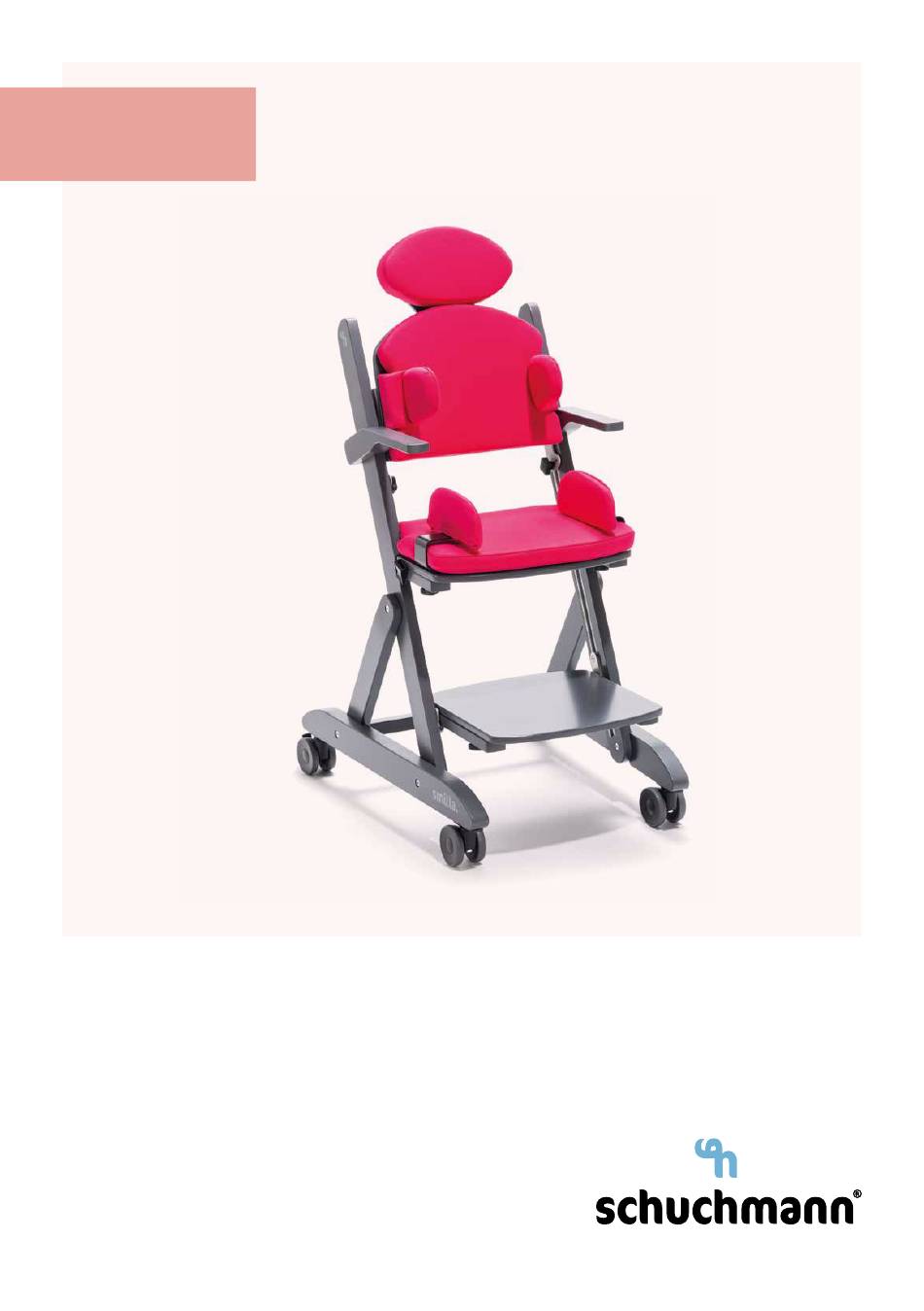

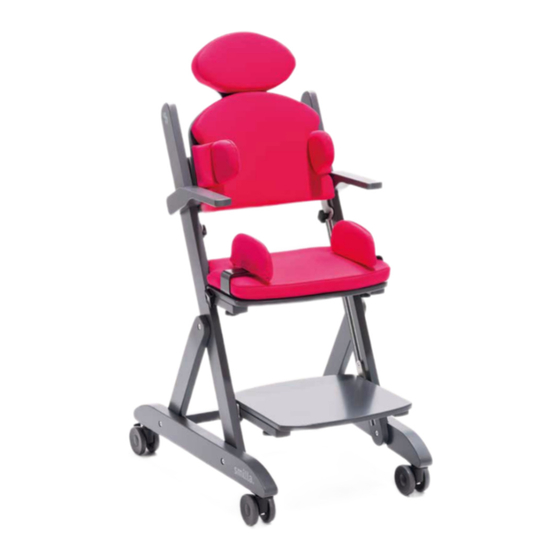

- Page 1 Instructions for use. smilla. The practical therapy chair for every day use.
- Page 2 Instructions for use may deviate from your prod- uct due to differing equipment. We reserve the right to make technical modifications. Important information! Ensure that these Instructions for use remain with the product. Your schuchmann Team...
-
Page 3: Table Of Contents
Contents. 1. Preparation................. 05 1.1 Delivery ..........................05 1.2 Safety measures prior to use ................05 1.3 Safe disposal .......................05 1.3.1 Packaging ......................05 1.3.2 Product ........................05 1.4 Where to store the Instructions for use ............05 2. Product description..............06 2.1 Material information ....................06 2.2 Handling / transport ....................06 2.3 Application areas, use according to the intended purpose .....06 2.3.1 Indications ......................06... - Page 4 Contents. 5.5 Duration of use and re-use .................. 19 6. Technical data................20 7. Guarantee................... 21 8. Identification................22 8.1 EU Declaration of Conformity ................22 8.2 Serial number / date of manufacture ............23 8.3 Product version ......................23 8.4 Issue of the document ..................
-
Page 5: Preparation
1.4 Where to store the Instructions for use Please store these Instructions for use carefully and ensure that these in- structions for use remain with the product in case of re-use. Should you lose the instructions, you can always download an updated version at www.schuchmann.de . -
Page 6: Product Description
2.3 Application areas, use according to the intended purpose The smilla. therapy chair is a medical product of risk class 1 and is use to compensate pronounced incorrect seating posture and/or seat posture instabilities. It permits permanent, pain-free sitting in a functionally and physiologically favourable position. -
Page 7: Use Not In Accordance With The Intended Purpose / Warning
• Always place the therapy chair on an even and solid surface. • Do not use the therapy chair if it has defective, worn or missing parts. • Use only accessories and spare parts made by Schuchmann, otherwise you will compromise the safety of the user. -
Page 8: Equipment For Basic Model
• Material: Lacquered beech Plastic gliders In order to prevent that smilla. tips over when being pushed back, there are plastic gliders below the feet. Thanks to these, smilla. can glide softly when being pushed back and remains in an upright position. The therapy chair should be placed on a surface it can slide on to ensure that the gliders can work as intended. -
Page 9: Accessories
2. Product description. 2.6 Accessories • Dual castors • Headrest • Strap assembly kit for the seat • Thorax pelotte pads area • Thigh guide • Strap assembly kit for the back • Anatomical seat pad area • Abduction wedge •... -
Page 10: Settings
All adjustments can be made with standard tools (e.g. Allen key, screwdriver or spanner). The smilla. therapy chair can be adjusted to the size of the user. The upper and lower arms as well as the thighs and calves should be at least able to form a right angle if possible. -
Page 11: Foot Support
3.2 Foot support There are two different foot supports avail- able for the smilla. Both can be adjust- ed in depth and height. The height of the height-adjustable version of the foot support is adjusted by pressing the push button (C),... -
Page 12: Adjustable Back Angle Without Tools
3. Settings. 3.4 Adjustable back angle without tools The backrest should rest fully against the back and should be adjusted to the respective required position of the spine. The back angle can be adjust- ed from - 3° to 17.5°. In order to adjust the angle of the backrest, loosen the twist grips (A) on both sides of the frame and bring the backrest into the... -
Page 13: Accessories
4. Accessories. 4.1 Headrest In the correct position, the headrest serves as a support surface for the head, so that the cen- tre of the headrest makes tangential contact with the head. Make sure that the upper edge of the headrest is positioned at the same height as the top of the head. -
Page 14: Thorax Pelotte Pads
4. Accessories. 4.3 Thorax pelotte pads The thorax pelotte pads can be adjusted in height, width and angle. Take the back pad off the backrest and loosen the four hexagon socket screws (A) from the back in order to adjust the height. Remove the sleeve nuts (B) from the front and insert them through the slotted holes in the holes at the required height, and then re-tighten the four hexa-... -
Page 15: Wooden Therapy Table
After each adjustment, please retighten all screw connections! 4.6 Castors smilla. can optionally be equipped with 4 castors, 2 of which with locking device. Press the brake down with the tip of your foot to brake/lock the rear castors. -
Page 16: Abduction Wedge
(B) on the attachment. The ab- duction wedge is not engaged until you hear a click. 4.8 Harness For smilla. a wide range of belts is available ensuring even better posi- tioning of the user. The harness should be mounted using the strap assembly kits for the seat or back area. -
Page 17: Cleaning And Maintaining
Please also pay attention to our general cleaning and Velcro séparément dans un sac de lavage hygiene advice. This can be found at www.schuchmann.de/mediathek. 5.1.2 Disinfection Various products can be used for surface disinfection of wood, metal and plastic parts. -
Page 18: Maintenance Specifications
5. Cleaning and maintaining. 18 18 5.3.1 Maintenance specifications • Basic cleaning according to manufacturer instructions (see Point 5.1.1) • If necessary, disinfection according to manufacturer instructions (see Point 5.1.2) • Damage to frame, attachment parts and accessories (cracks, fractures, splitters, bent or missing parts) •... -
Page 19: Spare Parts
5. Cleaning and maintaining. 5.4 Spare parts Use only original accessories and original spare parts from Schuchmann, as otherwise the safety of the user is endangered and the warranty ex- pires. Should you wish to order spare parts, please contact the specialist dealer who supplied you with the product, stating the serial number of the ther- apy chair (see Point 8.5). -
Page 20: Technical Data
6. Technical data. Dimensions Size 0 Size 1 Size 0 Size 1 Size 2 KITA KITA Seat width 17 - 28 cm 17 - 28 cm 20 - 35 cm 20 - 35 cm 30 - 40 cm Seat depth 16 - 26 cm 16 - 26 cm 25 - 35 cm 25 - 35 cm 30 - 40 cm Max. -
Page 21: Guarantee
7. Guarantee. The two-year statutory guarantee period shall apply for all products. This begins with the delivery or handover of the goods. Should a verifiable ma- terial or manufacturing fault occur within this time period, we shall, after carriage paid return to us, view the indicated damage and, if applicable, either repair or deliver a new product at our discretion. -
Page 22: Identification
EU Konformitätserklärung EU Declaration of Conformity Firma / Company Schuchmann GmbH & Co. KG Rudolf-Runge-Str. 3 · 49143 Bissendorf · Deutschland / Germany Tel. +49 (0) 5402 / 40 71 00 · Fax +49 (0) 5402 / 40 71 109 Actor ID/SRN: DE-MF-000013435 erklärt in alleiniger Verantwortung, dass das nachfolgend genannte Produkt der Risikoklasse 1... -
Page 23: Serial Number / Date Of Manufacture
• info@schuchmann.de • Fon +49 (0) 5402 / 40 71 00 Product labelling in accordance with MDR 8.3 Product version The smilla. therapy chair is available in five sizes can can be supplemented by a wide range of accessories (see Point 4). 8.4 Issue of the document Instructions for use smilla. - Page 24 schuchmann.de...
