smilla.
Instructions for use.
smilla. The practical seating aid for everyday use.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Smilla and is the answer not in the manual?

Questions and answers

Related Manuals for Schuchmann Smilla

Summary of Contents for Schuchmann Smilla

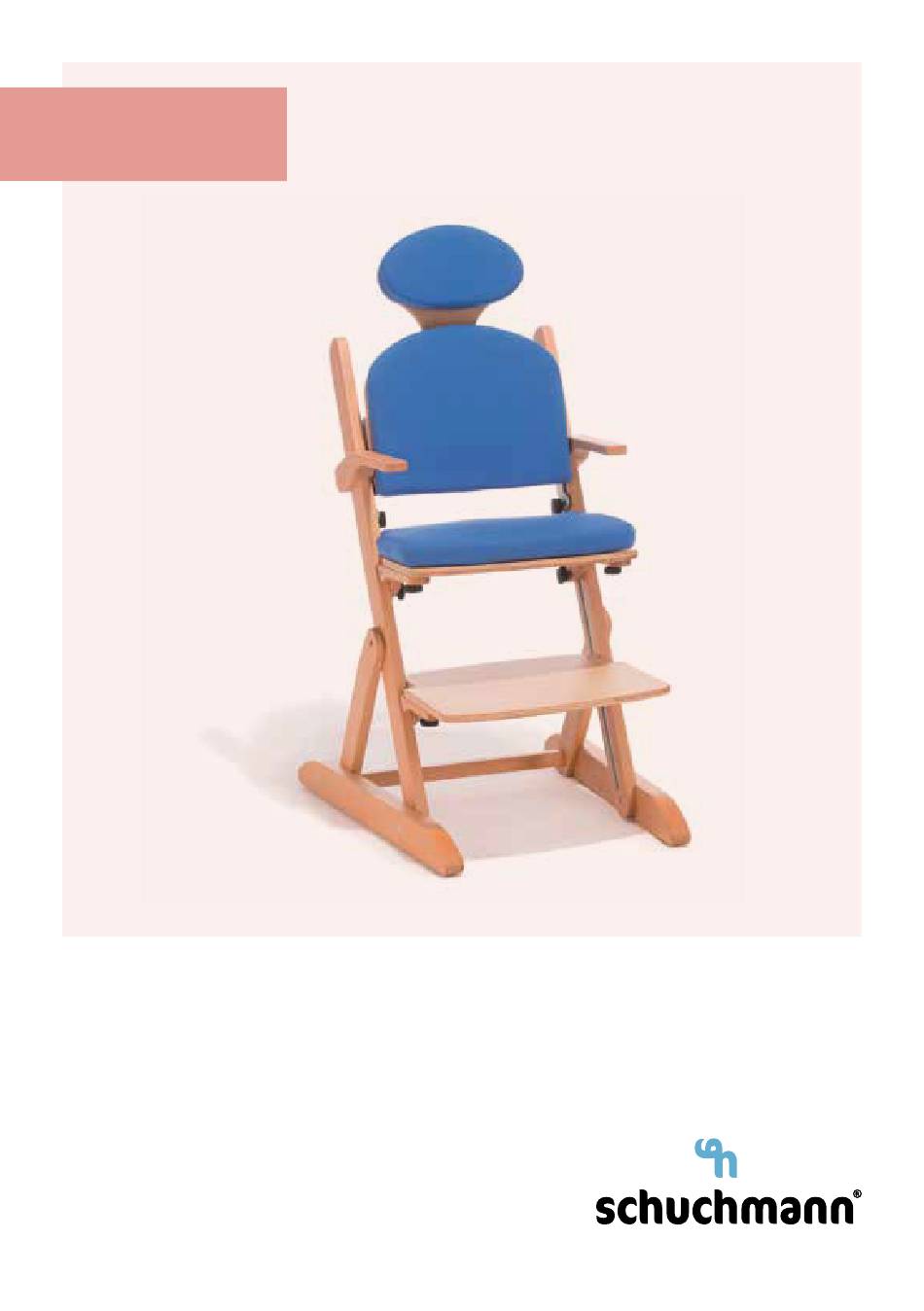

  • Page 1 Instructions for use. smilla. The practical seating aid for everyday use.
  • Page 2 Please note that gui- delines and representations in these Instructions for use may deviate from your product due to differing equipment. We reserve the right to make technical modifications. Important information! Ensure that these Instructions for use remain with the product.. Your schuchmann-Team...

  • Page 3: Table Of Contents

    Contents. 1. Preparation..................04 1.1 Delivery ........................04 1.2 Safety measures prior to use ................04 1.3 Safe disposal ......................04 1.3.1 Packaging ....................04 1.3.2 Product ....................04 1.4 Where to store the Instructions for use ............. 04 2. Product description................05 2.1 Material information ....................

  • Page 4: Preparation

    1. Preparation. 1.1 Delivery On receiving the product, please check it for completeness, lack of faults and any transport damage. Inspect the goods in the presence of your forwarder Should transport damage have occurred, please arrange for an inventory (determination of the faults) to be made in the presence of the forwarder. Please send a complaint in writing to the specialist dealer responsible.

  • Page 5: Product Description

    2. Product description. 2.1 Material information smilla. All wooden parts of the therapy chair are made of beechwood and varnished. The release of formaldehyde from the varnish is covered by the requirements according to E1. The covers are made of 100% polyester and are flame resistant (according to DIN EN 1021-1+2).

  • Page 6: Use Not In Accordance With The Intended Purpose / Warning Guidelines

    • Ensure that all straps are properly fastened. • Do not let the child play around the therapy chair when it is not in the intended position for use. • Always place the therapy chair on an even and solid surface. • Do not use the therapy chair if it has defective, worn or missing parts. • Only use accessories and spare parts made by Schuchmann, otherwise you will endanger the child. • Do not use the therapy chair as a ladder. • Only use the therapy chair if all components have been correctly mounted and adjusted. Please take extra care that the seat and foot plates are fixed properly before putting the child on the chair.

  • Page 7: Equipment For Basic Model

    • Incl. seat and foot plate adjustable in height, angle and depth • Incl. push rollers Plastic gliders Plastic gliders are attached at the back under the base feet to prevent smilla. smilla. from tipping over when pushed back. These help to slide gently and remain in an upright position when being pushed back. The the- rapy chair should be placed on a surface it can slide on to ensure that the gliders can work as intended.

  • Page 8: Product Description

    2. Product description. 2.6 Zubehör • Headrest • Strap assembly kit for the • Thorax pelotte pads back area • Thigh guide • Chest-shoulder strap • Abduction wedge • Groin harness (standard / • Wooden therapy table T-shaped) • Large wooden therapy table • Pelvic harness with edge • 4-point pelvic harness • Dual castors • Fast angle adjustment of the foot • Strap assembly kit for the seat area support and seat surface 2.7 Product overview with accessories Headrest Height and...

  • Page 9: Seat Plate, Foot Plate And Armrest Height

    The smilla. therapy chair can be adjusted to the size of the child. The upper and lower arms as well as the thighs and calves should be at least able to form a right angle if possible.

  • Page 10: Seat Depth

    3. Settings. 3.2 Seat depth The seat plate is at the right depth when there a space of approx. 5 cm between the backs of the knees and the front seat edge. In order to adjust the seat depth, loosen the turning handles (A) beneath the seat plate, slide it into the correct position and retighten the tur- ning handles (A).

  • Page 11: Foot And Seat Plate Angle Via Fast Adjustment

    3. Settings. 3.4.1 Foot and seat plate angle via fast adjustment As an alternative to adjustment of the footplate and seat plate angle via the hole, the angle can also be adjusted via fast adjustment using the pull strap (A). To do this, simply pull the pull strap from the front or back (A), and bring the seat plate (B) or foot plate (C) into the required position.

  • Page 12: Back Height

    3. Settings. 3.6 Back height The backrest can be continuously adjusted in height. Loosen the turning handles (A) and the hexagon socket screws (B) on both sides of the frame. Then bring the backrest to the requi- red height and retighten the turning handles (A) and the hexagon socket screws (B) on both sides.

  • Page 13: Thorax Pelotte Pads

    4. Accessories. 4.2 Thorax pelotte pads The thorax pelotte pads can be adjusted in height, width and angle. Take the back pad off the backrest and loosen the hexagon so- cket screws (A) from the back in order to adjust the height.

  • Page 14: Wooden Therapy Table

    After each adjustment, please retighten all screw connections! 4.5 Castors smilla. can be optionally equipped with 4 castors, 2 of which have locking devices. Press the brake down with the tip of your foot to brake/lock the rear castors. Lift the brake with the tip of...

  • Page 15: Abduction Wedge

    The abduction wedge is not engaged until you hear a click. 4.7 Begurtung There is range of straps available for smilla. , which allow even better posi- tioning of the user. The straps should be mounted using the strap assembly kits for the seat or back area.

  • Page 16: Repairs And Cleaning

    5. Repairs and cleaning. 5.1 Cleaning Wooden parts must be cleaned using a sponge or moist cloth. The seat and smilla. back pads of the therapy chair are covered with a wear-resistant and breathable fabric in the basic version. This can be removed from the pad using the zip to clean or wash it in the washing machine (max.

  • Page 17: Technical Data

    6 . Technical data. Dimensions - basic model Size 0 Size 1 Size 0 Size 1 Size 2 KITA KITA 17 - 28 17 - 28 20 - 35 20 - 35 30 - 40 Seat width 16 - 26 16 - 26 25 - 35 25 - 35...

  • Page 18: Guarantee

    7. Guarantee. The two-year statutory guarantee period shall apply for all products. This begins with the delivery or handover of the goods.. Should a verifiable ma- terial or manufacturing fault occur within this time period, we shall, after car- riage paid return to us, view the indicated damage and, if applicable, either repair or deliver a new product at our discretion.

  • Page 19: Identification

    8. Identification. 8.1 EC declaration of conformity Company Schuchmann GmbH & Co.KG Dütestr. 3 D-49205 Hasbergen Tel.: +49 (0) 54 05 / 909 - 0 Fax: +49 (0) 54 05 / 909 - 109 declares on their sole responsibility that the product named below, classified in product class 1, smilla.

  • Page 20: Serial Number / Date Of Manufacture

    - Change status J; Issue 09.2018 8.5 Name and address of the manufacturer, specialist dealer supplying the product This product was manufactured by: Schuchmann GmbH & Co. KG Dütestraße 3 · 49205 Hasbergen Tel. +49 (0)5405/909-0 · Fax +49 (0)5405/909-109 info@schuchmann.de · www.schuchmann.de This product has been delivered by the following specialist dealer:...
