Schuchmann SMILLA Instructions For Use Manual

The practical seating aid for everyday use
Hide thumbs Also See for SMILLA:
Table of Contents

Advertisement

Quick Links

SMILLA
the practical seating aid for everyday use
Instructions for use

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SMILLA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Schuchmann SMILLA

Summary of Contents for Schuchmann SMILLA

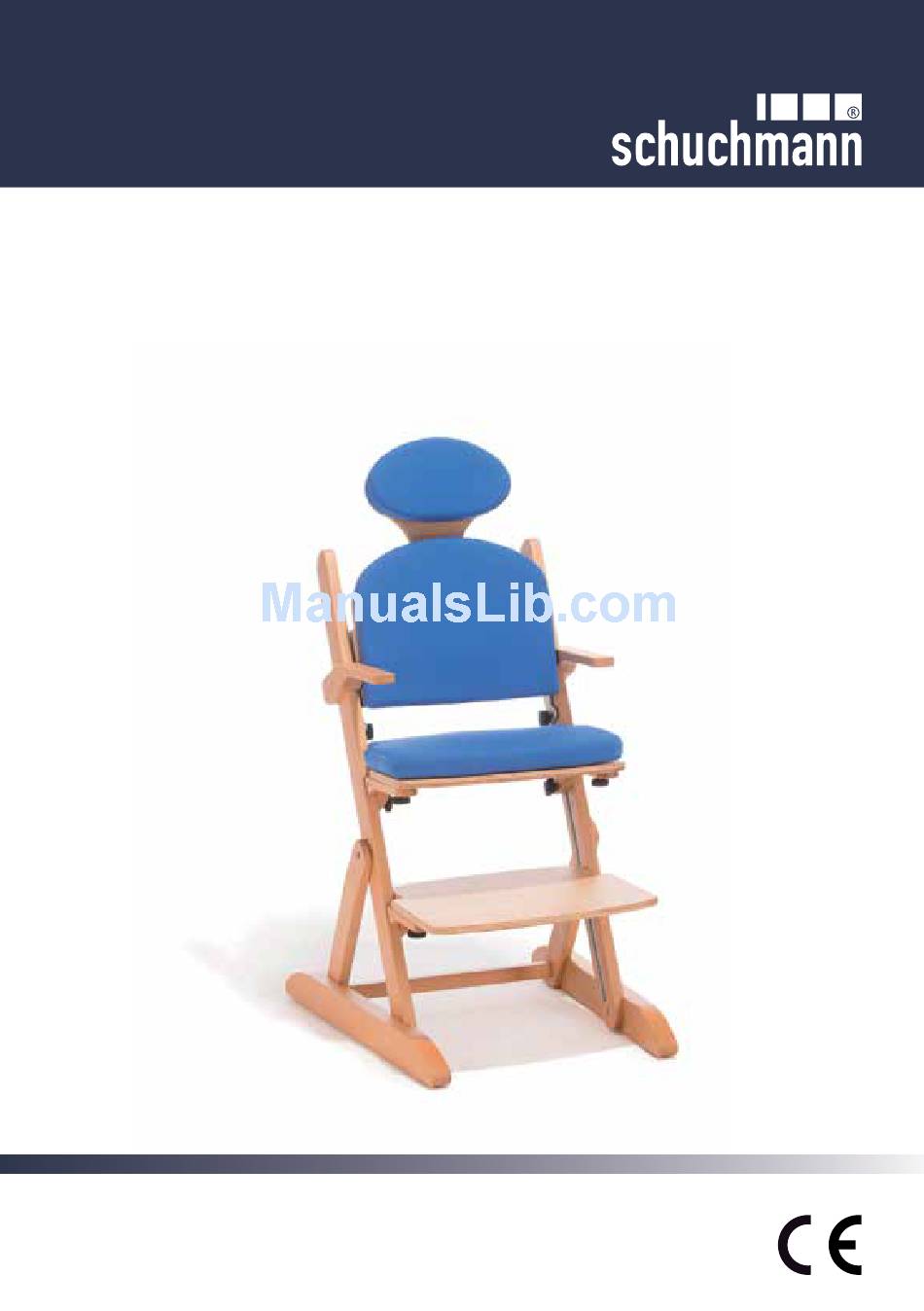

  • Page 1 SMILLA the practical seating aid for everyday use Instructions for use...
  • Page 2 Please note that guidelines and representations in these Instructions for use may deviate from your product due to differing equipment. We reserve the right to make technical modifications. Important information! Ensure that these Instructions for use remain with the product. Your Schuchmann Team...

  • Page 3: Table Of Contents

    Inhalt 1. Preparation of the therapy chair for use ..................4 1.1 Delivery ............................4 1.2 Safety measures prior to use ......................4 1.3 Safe disposal ..........................4 1.3.1 Packaging..........................4 1.3.2 Product ..........................4 1.4 Where to store the Instructions for use ..................4 2. Product description ..........................5 2.1 Material information ........................5 2.2 Handling / transport ........................5 2.3 Application areas, use according to the intended purpose ............5...

  • Page 4: Preparation Of The Therapy Chair For Use

    1. Preparation of the therapy chair for use 1.1 Delivery On receiving the product, please check it for completeness, lack of faults and any transport damage. Inspect the goods in the presence of your forwarder Should transport damage have occurred, please arrange for an inventory (deter- mination of the faults) to be made in the presence of the forwarder.

  • Page 5: Product Description

    2. Product description 2.1 Material information All wooden parts of the SMILLA therapy chair are made of beechwood and varni- shed. The release of formaldehyde from the varnish is covered by the requirements according to E1. The covers are made of 100% polyester and are flame resistant (according to DIN EN 1021-1+2).

  • Page 6: Use Not In Accordance With The Intended Purpose / Warning Guidelines

    • Always place the therapy chair on an even and solid surface. • Do not use the therapy chair if it has defective, worn or missing parts. • Only use accessories and spare parts made by Schuchmann, otherwise you will endanger the child.

  • Page 7: Equipment For Basic Model

    • Incl. push rollers Plastic gliders Plastic gliders are attached at the back under the base feet to prevent SMILLA from tipping over when pushed back. These help SMILLA to slide gently and remain in an upright position when being pushed back. The therapy chair should be placed on a surface it can slide on to ensure that the gliders can work as intended.

  • Page 8: Accessories

    2.6 Accessories • Headrest • Strap assembly kit for the back area • Thorax pelotte pads • Chest-shoulder strap • Thigh guide • Groin harness (standard / T-shaped) • Abduction wedge • Pelvic harness • Wooden therapy table • 4-point pelvic harness •...

  • Page 9: Settings

    The SMILLA therapy chair can be adjusted to the size of the child. The upper and lower arms as well as the thighs and calves should be at least able to form a right angle if possible.

  • Page 10: Seat Depth

    3.2 Seat depth The seat plate is at the right depth when there a space of approx. 5 cm between the backs of the knees and the front seat edge. In order to adjust the seat depth, loosen the tur- ning handles (A) beneath the seat plate, slide it into the correct position and retighten the turning handles (A).

  • Page 11: Foot And Seat Plate Angle Via Fast Adjustment

    3.4.1 Foot and seat plate angle via fast adjustment As an alternative to adjustment of the footplate and seat plate angle via the hole, the angle can also be adjusted via fast adjustment using the pull strap (A). To do this, simply pull the pull strap from the front or back (A), and bring the seat plate (B) or foot plate (C) into the required position.

  • Page 12: Back Height

    3.6 Back height The backrest can be continuously adjusted in height. Loosen the turning handles (A) and the hexagon socket screws (B) on both sides of the frame. Then bring the backrest to the required height and retighten the turning handles (A) and the hexagon socket screws (B) on both sides.

  • Page 13: Thorax Pelotte Pads

    4.2 Thorax pelotte pads The thorax pelotte pads can be adjusted in height, width and angle. Take the back pad off the backrest and loosen the hexagon socket screws (A) from the back in order to adjust the height. Remove the sleeve nuts (B) from the front and insert them through the slotted holes in the holes at the required height, and then retighten the socket screws (A).

  • Page 14: Thigh Guide

    4.3 Thigh guide The thigh guide can be adjusted in depth, width and angle. Loosen the hexagon socket screws (A) under the seat plate to change the angle and width of the thigh guide. Now bring the thigh gui- de to the required position and tighten the hexa- gon socket screws (A) again.

  • Page 15: Wooden Therapy Table

    After each adjustment, please retighten all screw con- nections! 4.5 Castors SMILLA can be optionally equipped with 4 cas- tors, 2 of which have locking devices. Press the brake down with the tip of your foot to brake/lock the rear castors.

  • Page 16: Abduction Wedge

    The abduction wedge is not engaged until you hear a click. 4.7 Straps There is range of straps available for SMILLA, which allow even better positioning of the user. The straps should be mounted using the strap assembly kits for the seat or back area. You have...

  • Page 17: Repairs And Cleaning

    Wooden parts must be cleaned using a sponge or moist cloth. The seat and back pads of the SMILLA therapy chair are covered with a wear-resistant and breathable fabric in the basic version. This can be removed from the pad using the zip to clean or wash it in the washing machine (max.

  • Page 18: Technical Data

    6. Technical data Dimensions - basic model Size 0 Size 1 Size 0 Size 1 Size 2 KITA KITA Seat width 17 - 28 cm 17 - 28 cm 20 - 35 cm 20 - 35 cm 30 - 40 cm Seat depth 16 - 26 cm 16 - 26 cm...

  • Page 19: Identification

    Fax: +49 (0) 54 05 / 909 - 109 declares on their sole responsibility that the product named below, classi- fied in product class 1, "SMILLA" - the practical therapy chair for everyday use Art. No.: 13 00 100 (Size 0 KITA)

  • Page 20: Serial Number / Date Of Manufacture

    · info@schuchmann-reha.de · Fon +49 (0) 5405 / 909 - 0 8.3 Product version The SMILLA therapy chair is available in five sizes and can be supplemented through a diverse range of accessories (see Point 4). 8.4 Issue of the document Instructions for use SMILLA - Change status I;...
