Schuchmann sofie Instructions For Use Manual

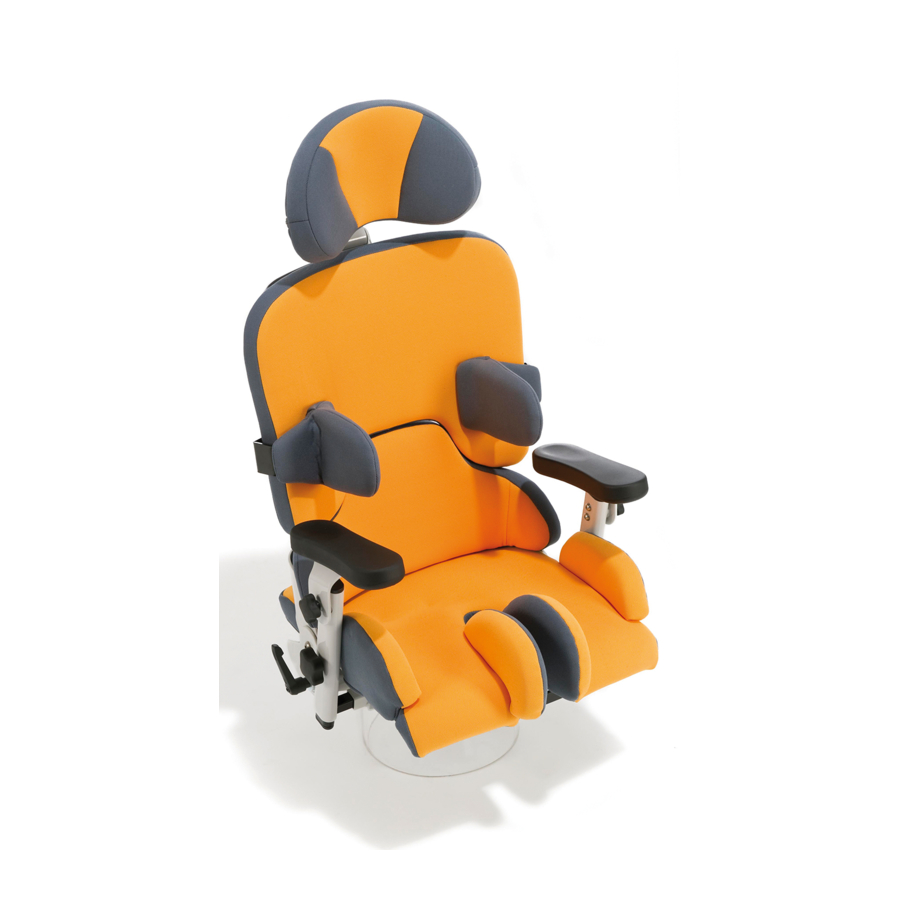

The versatile seat unit that grows with the child
Hide thumbs
Also See for sofie:
- Instructions for use manual (16 pages) ,
- Instructions for use manual (24 pages) ,
- Assembly instructions (5 pages)
Related Manuals for Schuchmann sofie
Summary of Contents for Schuchmann sofie

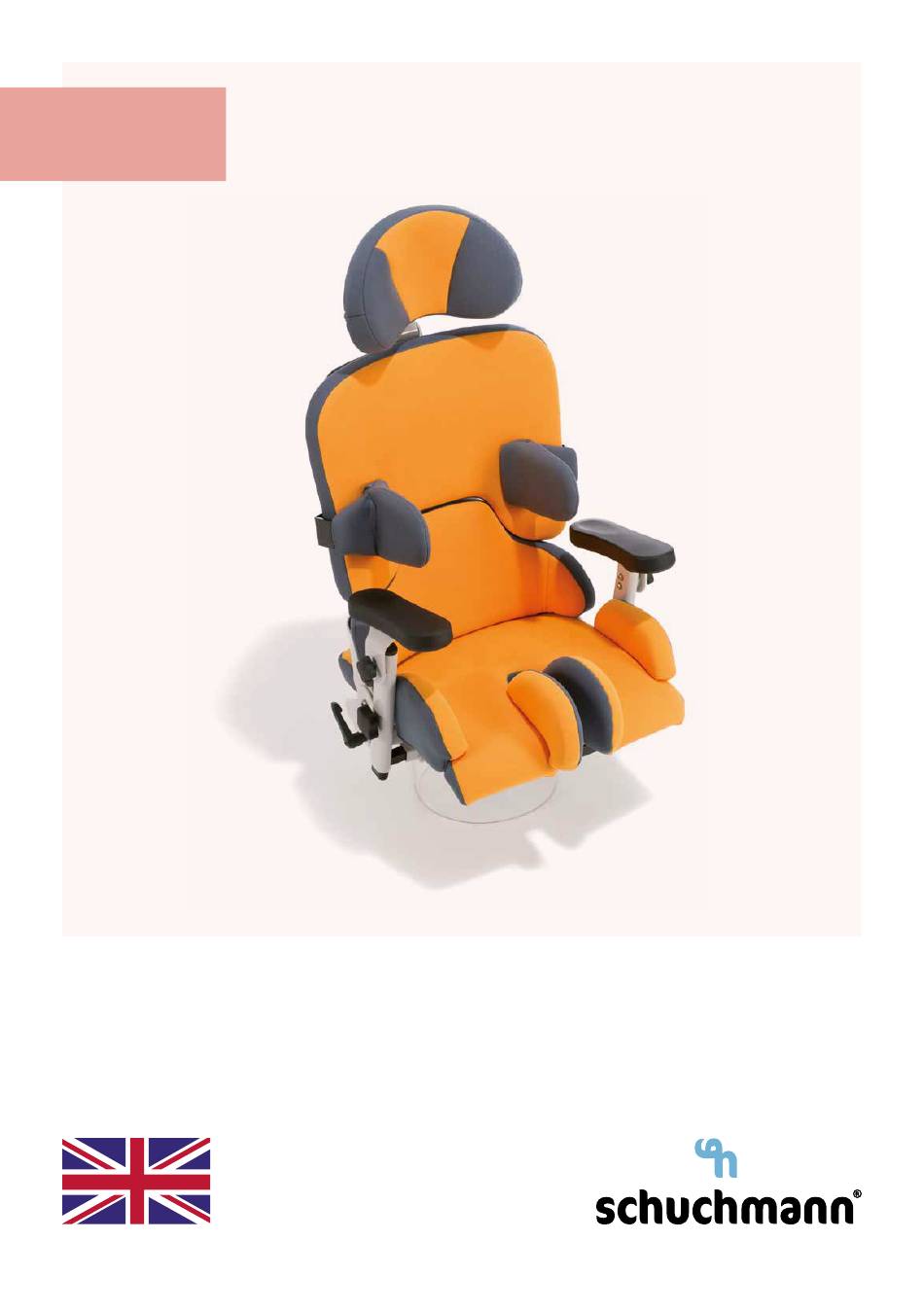

- Page 1 Instructions for use. sofie. The versatile seat unit that grows with the child.
- Page 2 Instructions for use may deviate from your product due to differing equipment. We reserve the right to make technical modifications. Important information! Ensure that these Instructions for use remain with the product. Your schuchmann Team...
-
Page 3: Table Of Contents
Contents. 1. Preparation................. 05 1.1 Delivery ..........................05 1.2 Safety measures prior to use ................05 1.3 Safe disposal .......................05 1.3.1 Packaging ......................05 1.3.2 Product ........................05 1.4 Where to store the Instructions for use ............05 2. Product description..............06 2.1 Material information ....................06 2.2 Handling / transport ....................06 2.3 Application areas, use according to the intended purpose .....06 2.3.1 Indication ......................06... - Page 4 Contents. 5.2 Servicing ........................19 5.3 Maintenance ....................... 19 5.3.1 Maintenance specifications ..............20 5.3.2 Maintenance plan ..................20 5.4 Spare parts ........................21 5.5 Duration of use and re-use .................. 21 6. Technical data................22 7. Guarantee................... 22 8. Identification................23 8.1 EU Declaration of Conformity ................
-
Page 5: Preparation
1.4 Where to store the Instructions for use Please store these Instructions for use carefully and ensure that these Inst- ructions for use remain with the product in case of re-use. Should you lose the instructions, you can always download an updated version at www. schuchmann.de . -
Page 6: Product Description
(set lowest seat height, push in foot support, etc.). 2.3 Application areas, use according to the intended purpose The sofie. seat unit is a medical product of risk class 1 and designed for children and youths who cannot sit or stand unaided, however whose limited torso posture does not require permanent sitting in a seat pan. -
Page 7: Contraindications
• Use only accessories and spare parts made by Schuchmann, otherwise you will compromise the safety of the user. • Only use the seat unit if all components have been correctly mounted and adjusted. -
Page 8: List Of Accessories
2. Product description. 2.6 List of accessories • Headrest, padded • Knee abduction wedge, padded • Removable back • Strap assembly kit for the seat • Thorax pelotte pads (also area foldable), padded • Strap assembly kit for the back •... -
Page 9: Settings
3. Settings. Settings and adjustments to the product or accessories may only be made by people who have been given the necessary instructions by a medical product advisor. Please ensure that none of the user's extremities are in the respective area when making adjustments of any kind to minimise the risk of injury. -
Page 10: Armrests
3.5 Adapter / adaptation to the seat depth With our adapter systems it is possible to adapt the sofie. seat unit to all standard sub-frames for indoors as well as for out- doors. After loosening the 4 countersunk head... -
Page 11: Accessories
4. Accessories. 4.1 Headrest The headrest can be adjusted in height, depth and angle. In order to do this, plea- se loosen the 2 cylinder head screws (A) with a hexagonal wrench and bring the headrest into the required position. 4.2 Removable back The removable back can be operated on the back of the therapy chair. -
Page 12: Foldable Thorax Pelotte Pads
4. Accessories. 4.4 Foldable thorax pelotte pads The foldable thorax pelotte pads can be folded to the sides to ease placement of the child. To do this, please press the red pushbutton (A) on the side of the thorax pelotte pad over the joint, and swivel the pelotte pad away to the side. -
Page 13: Abducting Leg Guides
4. Accessories. 4.6 Abducting leg guides The abducting leg guides permit the medi- cally necessary abduction of the thighs and the compensation of a seat depth difference. In order to adjust the leg guides, please loo- sen the pan head screws with a hexagonal wrench (A) below the seat pad, and bring the leg guides into the required position. -
Page 14: Therapy Table
4. Accessories. 4.8 Therapy table The therapy table can be adjusted in height and depth. Height adjust- ment takes place via adjustment of the armrests (see Point 3.4). For ad- justment of the depth, loosen the wing screw (A) and bring the therapy table into the required position. -
Page 15: Foot Support (Fixed-Mounted Onto The Seat Unit)
4. Accessories. 4.10 Foot support (fixed-mounted onto the seat unit) An optional foot support (A) is availab- le for sofie. It has a non-slip surface (B) and has 8 slits (C) to attach straps such as foot cuffs or foot positioning aids. -
Page 16: Footrests
3. Settings. 4. Accessories. 4.11 Footrests Optionally, sofie. can also be equip- ped with footrests (A). They have an anti-slip surface (B) and have 4 slits each (C) to mount straps such as foot cuffs or foot positioning aids. For ad-... -
Page 17: Positioning Of The Footrests
4. Accessories. 4.11.1 Positioning of the footrests For optimum positioning of the feet, the footrests can be adjusted inde- pendently of each other in width, angle and depth. Foot angle The foot angle (A) of the respective footrest can be adjusted from (-)15° to 5°. -
Page 18: Footrests With Foot Pans
4. Accessories. 18 18 4.12 Footrests with foot pans Optionally, the footrests can also be equipped with foot pans (A). Here, as on the standard design, the knee angle can be adjusted, the foot pans folded up and the height adjusted (see Point 4.11). -
Page 19: Cleaning And Servicing
Please also pay attention to 100% Polyester our general cleaning and hygiene advice. This can be www.schuchmann.de/mediathek found at 5.1.2 Disinfection Various products can be used for surface disinfection of wood, metal and plastic parts. -
Page 20: Maintenance Specifications
5. Cleaning and servicing. 5.3.1 Maintenance specifications • Basic cleaning according to the manufacturer's specifications • Disinfect according to the manufacturer's specifications as required • Damages to the frame, mounting parts and accessories (cracks, breaks, corrosion, bent or missing parts) •... -
Page 21: Spare Parts
5. Cleaning and maintaining. 5.4 Spare parts Use only original accessories and original spare parts from Schuchmann, as otherwise the safety of the user is endangered and the warranty expires. Should you wish to order spare parts, please contact the specialist dealer who supplied you with the product, stating the serial number of the therapy chair (see Point 8.5). -
Page 22: Technical Data
6. Technical data. Dimensions Size 0 Size 1 Size 1 b Size 2 Seat depth 15 - 25 cm 21 - 30 cm 26 - 36 cm 30 - 42 cm Seat width 16 - 26 cm 20 - 30 cm 20 - 30 cm 28 - 38 cm Back height... -
Page 23: Identification
EU Konformitätserklärung EU Declaration of Conformity Firma / Company Schuchmann GmbH & Co. KG Rudolf-Runge-Str. 3 · 49143 Bissendorf · Deutschland / Germany Tel. +49 (0) 5402 / 40 71 00 · Fax +49 (0) 5402 / 40 71 109 erklärt in alleiniger Verantwortung, dass das nachfolgend genannte Produkt der Risikoklasse 1... -
Page 24: Serial Number / Date Of Manufacture
• info@schuchmann.de • Fon +49 (0) 5402 / 40 71 00 Product labelling in accordance with MDR 8.3 Product version The sofie. seat system is available in four sizes and can be supplemented through a diverse range of accessories (see Point 4). 8.4 Issue of the document Instructions for use sofie.
