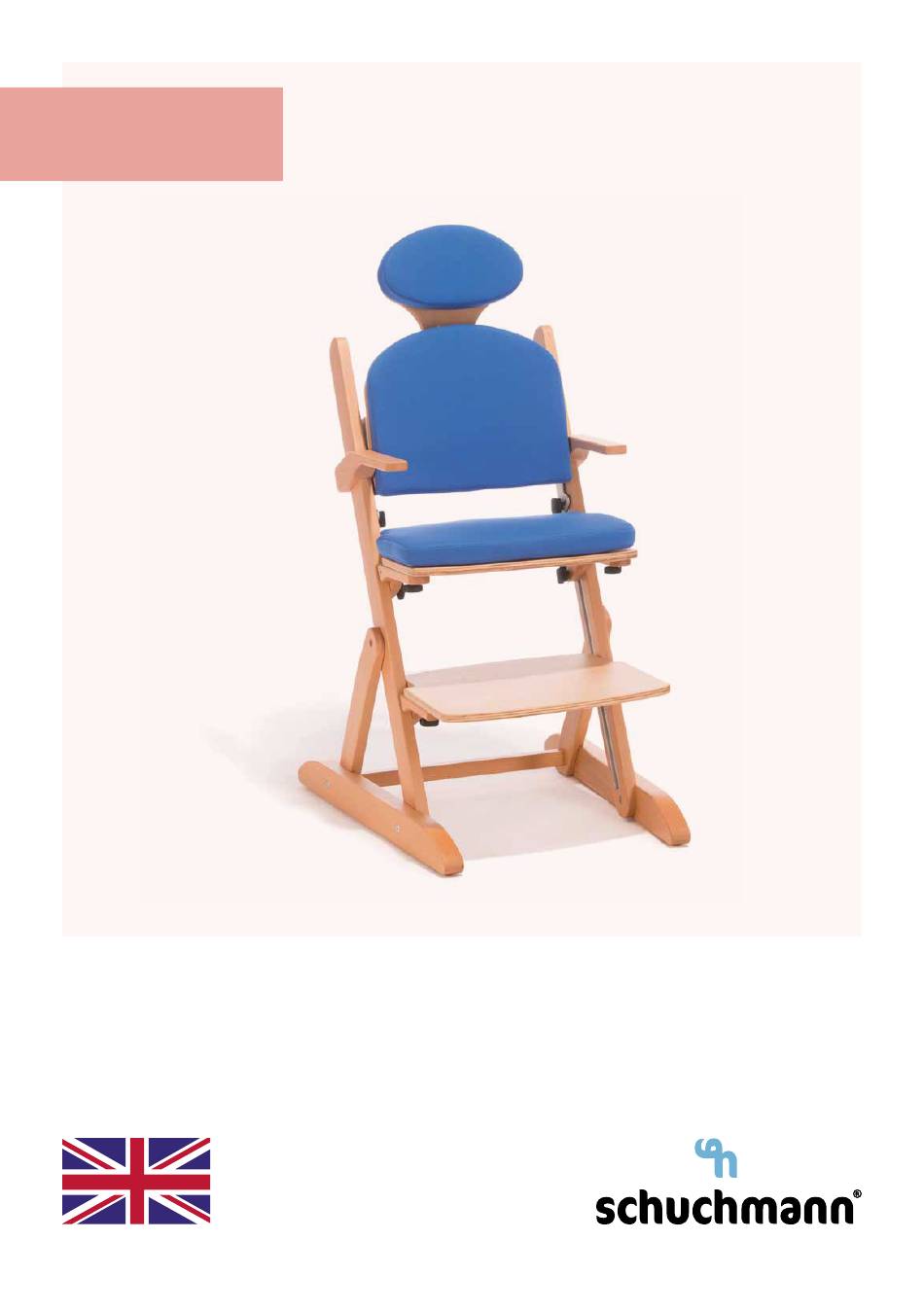

- Page 1 Instructions for use. smilla. The practical therapy chair for every day use.
- Page 2 Instructions for use may deviate from your product due to differing equipment. We reserve the right to make technical modifications. Important information! Ensure that these Instructions for use remain with the product. Your schuchmann Team...
-
Page 3: Table Of Contents
Contents. 1. Preparation................. 05 1.1 Delivery ..........................05 1.2 Safety measures prior to use ................05 1.3 Safe disposal .......................05 1.3.1 Packaging ......................05 1.3.2 Product ........................05 1.4 Where to store the Instructions for use ............05 2. Product description..............06 2.1 Material information ....................06 2.2 Handling / transport ....................06 2.3 Application areas, use according to the intended purpose .....06 2.3.1 Indications ......................06... - Page 4 Contents. 5.5 Duration of use and re-use .................. 19 6. Technical data................20 7. Guarantee................... 21 8. Identification................22 8.1 EU Declaration of Conformity ................22 8.2 Serial number / date of manufacture ............23 8.3 Product version ......................23 8.4 Issue of the document ..................
-
Page 5: Preparation
1.4 Where to store the Instructions for use Please store these Instructions for use carefully and ensure that these Inst- ructions for use remain with the product in case of re-use. Should you lose the instructions, you can always download an updated version at www. schuchmann.de . -
Page 6: Product Description
2.3 Application areas, use according to the intended purpose The smilla. therapy chair is a medical product of risk class 1 and is use to compensate pronounced incorrect seating posture and/or seat posture instabilities. It permits permanent, pain-free sitting in a functionally and physiologically favourable position. -
Page 7: Use Not In Accordance With The Intended Purpose / Warning Gui
• Do not use the therapy chair if it has defective, worn or missing parts. • Use only accessories and spare parts made by Schuchmann, otherwise you will compromise the safety of the user. • Do not use the therapy chair as a ladder. -
Page 8: Equipment For Basic Model
The push rollers should not be mistaken for castors (see Point 4.5). In order to position smilla. correctly (e.g. to push the user to / under a table), tilt it slightly forward. The push rollers can be found in the front area under the base feet. -
Page 9: Accessories
2. Product description. 2.6 Accessories • Strap assembly kit for the • Headrest back area • Thorax pelotte pads • Chest-shoulder strap • Thigh guide • Groin harness • Anatomical seat pad (standard / T-shaped) • Abduction wedge • Pelvic harness •... -
Page 10: Settings
The smilla. therapy chair can be adjusted to the size of the user. The upper and lower arms as well as the thighs and calves should be at least able to form a right angle if possible. -
Page 11: Seat Depth
3. Settings. 3.2 Seat depth The seat plate is at the right depth when there a space of approx. 5 cm between the backs of the knees and the front seat edge. In order to adjust the seat depth, loosen the twist grips (A) beneath the seat plate, slide it into the correct position and retighten the twist grips (A). -
Page 12: Foot And Seat Plate Angle Via Fast Adjustment
3. Settings. 3.4.1 Foot and seat plate angle via fast adjustment As an alternative to adjustment of the footplate and seat plate angle via the hole, the angle can also be adjusted via fast adjustment using the pull strap (A). To do this, simply pull the pull strap from the front or back (A), and bring the seat plate (B) or foot plate (C) -
Page 13: Back Height
3. Settings. 3.6 Back height The backrest can be continuously adjusted in height. Loosen the twist grips (A) and the hexagon socket screws (B) on both sides of the frame. Then bring the backrest to the re- quired height and retighten the twist grips (A) and the hexagon socket screws (B) on both sides. -
Page 14: Thorax Pelotte Pads
4. Accessories. 4.2 Thorax pelotte pads The thorax pelotte pads can be adjusted in height, width and angle. Take the back pad off the backrest and loosen the hexagon socket screws (A) from the back in order to adjust the height. Remove the sleeve nuts (B) from the front and insert them through the slot- ted holes in the holes at the required height, and then retighten the socket screws (A). -
Page 15: Wooden Therapy Table
4.5 Castors smilla. can optionally be equipped with 4 castors, 2 of which with locking device. Press the brake down with the tip of your foot to brake/lock the rear castors. Lift the brake with the tip of your foot again to release. -
Page 16: Abduction Wedge
(B) on the attachment. The abduction wedge is not engaged until you hear a click. 4.7 Harness For smilla. a wide range of belts is available ensuring even better posi- tioning of the user. The harness should be mounted using the strap assembly kits for the seat or back area. -
Page 17: Cleaning And Servicing
Please also pay attention to 100% Polyester our general cleaning and hygiene advice. This can be www.schuchmann.de/mediathek found at 5.1.2 Disinfection Various products can be used for surface disinfection of wood, metal and plastic parts. -
Page 18: Maintenance Specifications
5. Cleaning and maintaining. 18 18 5.3.1 Maintenance specifications • Basic cleaning according to manufacturer instructions (see Point 5.1.1) • If necessary, disinfection according to manufacturer instructions (see Point 5.1.2) • Damage to frame, attachment parts and accessories (cracks, fractures, splitters, bent or missing parts) •... -
Page 19: Spare Parts
5. Cleaning and maintaining. 5.4 Spare parts Use only original accessories and original spare parts from Schuchmann, as otherwise the safety of the user is endangered and the warranty ex- pires. Should you wish to order spare parts, please contact the specialist dealer who supplied you with the product, stating the serial number of the thera- py chair (see Point 8.5). -
Page 20: Technical Data
6. Technical data. Dimensions Size 0 Size 1 Size 0 Size 1 Size 2 KITA KITA Seat width 17 - 28 cm 17 - 28 cm 20 - 35 cm 20 - 35 cm 30 - 40 cm Seat depth 16 - 26 cm 16 - 26 cm 25 - 35 cm 25 - 35 cm 30 - 40 cm Seat height 45 cm... -
Page 21: Guarantee
7. Guarantee. The two-year statutory guarantee period shall apply for all products. This begins with the delivery or handover of the goods. Should a verifiable ma- terial or manufacturing fault occur within this time period, we shall, after carriage paid return to us, view the indicated damage and, if applicable, either repair or deliver a new product at our discretion. -
Page 22: Identification
EU Konformitätserklärung EU Declaration of Conformity Firma / Company Schuchmann GmbH & Co. KG Rudolf-Runge-Str. 3 · 49143 Bissendorf · Deutschland / Germany Tel. +49 (0) 5402 / 40 71 00 · Fax +49 (0) 5402 / 40 71 109 erklärt in alleiniger Verantwortung, dass das nachfolgend genannte Produkt der Risikoklasse 1... -
Page 23: Serial Number / Date Of Manufacture
• info@schuchmann.de • Fon +49 (0) 5402 / 40 71 00 Product labelling in accordance with MDR 8.3 Product version The smilla. therapy chair is available in five sizes can can be supplemented by a wide range of accessories (see Point 4). 8.4 Issue of the document Instructions for use smilla. - Page 24 8. Identification. schuchmann.de...
