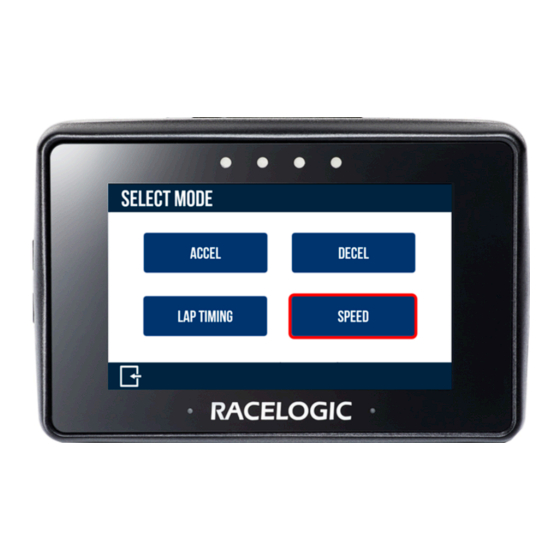

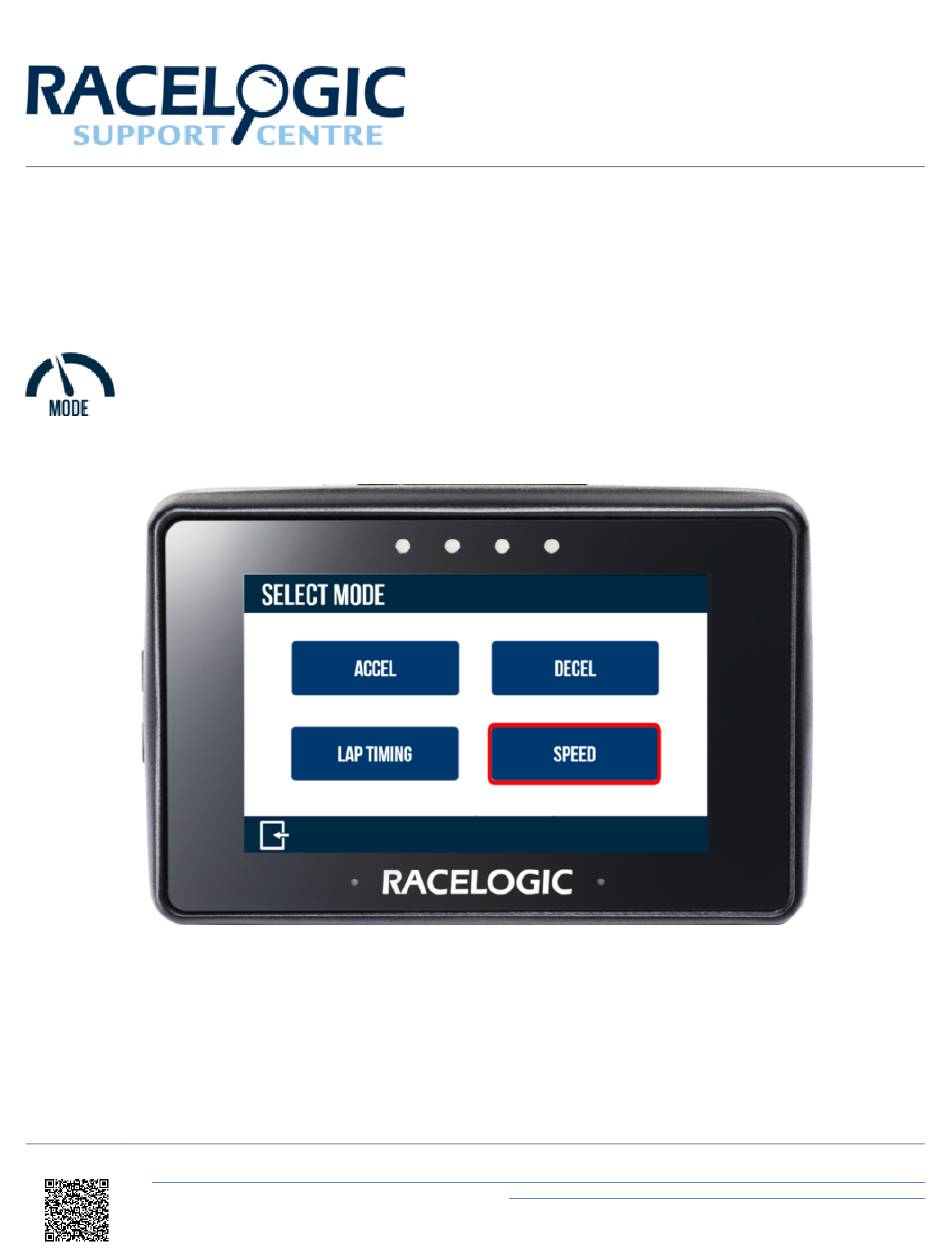

PB Touch - Speed Display Mode
The Speed Display Mode allows you to view live speed data, selectable via 3 screens; Speed, VMAX and Average
Speed. It is accessed by pressing the Mode Button
at the bottom of the screen and selecting Speed.
The last selected Speed Display Mode will be displayed after each power cycle.
https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_User_Guide/
04_-_PB_Touch_Display_Modes/PB_Touch_-_Speed_Display_Mode
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Racelogic PB Touch
Summary of Contents for Racelogic PB Touch
- Page 1 PB Touch - Speed Display Mode The Speed Display Mode allows you to view live speed data, selectable via 3 screens; Speed, VMAX and Average Speed. It is accessed by pressing the Mode Button at the bottom of the screen and selecting Speed.
- Page 2 Speed Settings, it will be displayed in grey underneath the Live Speed. If the vehicle is traveling less than 0.5 km/h or satellite lock is lost (less than 4 sats), the value will display as 000.0. https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_User_Guide/ 04_-_PB_Touch_Display_Modes/PB_Touch_-_Speed_Display_Mode...
- Page 3 The screen can be reset at any time by pressing the Reset Button at the bottom of the screen. If a Target Speed is selected within the Speed Settings, it will be displayed in grey underneath the Average Speed. https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_User_Guide/ 04_-_PB_Touch_Display_Modes/PB_Touch_-_Speed_Display_Mode...
- Page 4 The Speed Display settings screen can be accessed by selecting the Settings Button on the bottom left of the screen. It enables you to choose between speed display options. To return to the main screen, select the Exit Button https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_User_Guide/ 04_-_PB_Touch_Display_Modes/PB_Touch_-_Speed_Display_Mode...
- Page 5 • Smoothing only applies to the screen displays, not recorded data. • It introduces a slight delay to the displayed value. V Avg Mode It is possible to change whether the average speed on the Average Speed Screen is calculated as Continuous or https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_User_Guide/ 04_-_PB_Touch_Display_Modes/PB_Touch_-_Speed_Display_Mode...
- Page 6 Enabling one, or both of the alerts will set the target speed and also allow you to access the sub menu where you can define the target speed condition by pressing the value box and then using the keypad presented. https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_User_Guide/ 04_-_PB_Touch_Display_Modes/PB_Touch_-_Speed_Display_Mode...
- Page 7 3 times and Performance Box Touch will emit an audible error notification. A captured image is saved as a 1.5 MB bitmap image, orientated at 90° to the original screen image, with the prefix 'screenshot'. https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_User_Guide/ 04_-_PB_Touch_Display_Modes/PB_Touch_-_Speed_Display_Mode...
- Page 8 – NEVER remove the SD card when a screenshot is being taken, it could cause the unit to crash! Reset Selecting the Reset Button on the bottom right of the screen will reset all results shown on the current screen. When pressed, the LEDs will briefly flash green twice. https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_User_Guide/ 04_-_PB_Touch_Display_Modes/PB_Touch_-_Speed_Display_Mode...
