3.1.3
Installing the Top Cover
Please follow the below procedures to install chassis top cover.
1.
Insert the top cover on the chassis front panel from the opening point and place
it well as shown. (See Figure 3.4)
2.
Fix the chassis top cover with two screws.
(WxHxD)：70x150x120mm with wall mount
(WxHxD)：100x150x120mm with wall mount
Please follow the below procedures to install chassis top heatsink.
1.
Insert the top heatsink
2.
Fix the chassis top cover with five screws.

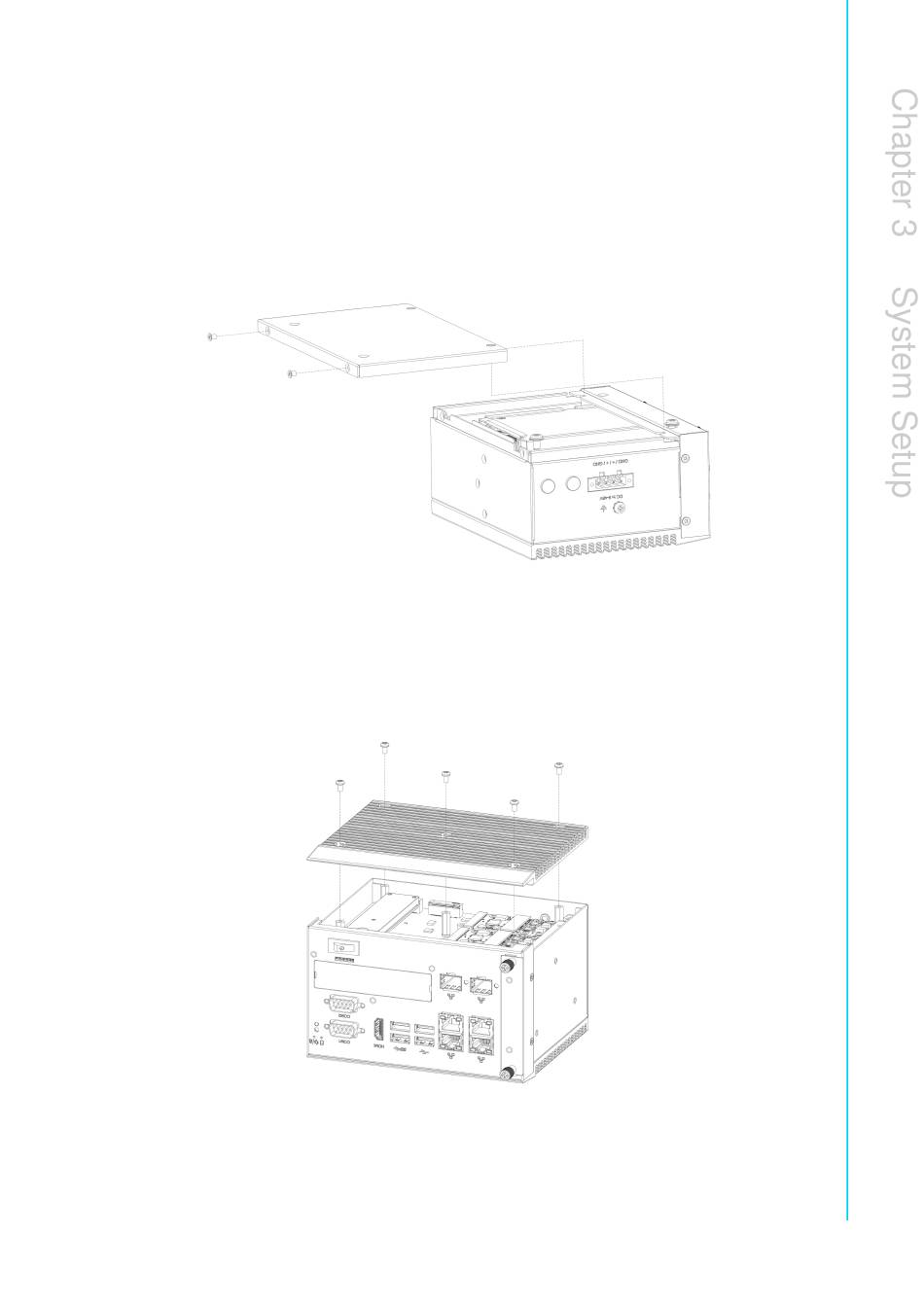

Figure 3.3 Installing the Top Cover
22
ITA-260_Series User Manual
