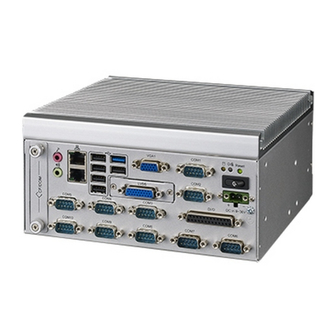

ITA-1711 Series Fanless Compact Embedded IPC with Intel
Celeron Dual Core CPU
Startup Manual
Packing List
Before you begin installing your IPC, please make sure that
the following items have been shipped:
1. 1 x ITA-1711 series IPC
2. 1 x Accessary box
3. 1 x CD (utilities and PDF format manuals indluded)
4. 2 x Mounting brackets
5. 4 x Bottom rubber pads
6. 4 x M4 screws (for mounting bracket)
7. 1x Warranty card
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
Note 1:
For detailed contents of ITA-1711, please refer
to information on the enclosed CD-ROM (in PDF
format).
Note 2:
Acrobat Reader is required to view any PDF
file.Acrobat Reader can be downloaded at:
www.adobe.com/Products/acrobat/readstep2.
html (Acrobat is a trademark of Adobe)
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
http://www.advantech.com/epc
For technical support and service, please visit our
support website at:
http://support.advantech.com
This manual is for the ITA-1711 Series.
Part No. 2001171110
Print in China
1st Edition
November 2015
Specifications
Standard Functions
• Chip and chipset: Intel Celeron processor J1900
• BIOS: AMI SPI 64 MB Flash
• Memory: Onboard 4 GB DDR3L 1333 memory
• Display: Embedded Gen7+GFX Core, Frequency 542
MHz. Shared system memory up to 256 MB SDRAM
• Dual display mode:
- Resolution of single display up to 2048 x 1536
- Resolution of dual display up to 1920 x 1080
• Storage: Supports 1 x CompactFlash socket, 1 x M-Sata
slot and 1 x 2.5" HDD/SSD
• Expansion slot: Supports 1 x Mini PCIe slot
System Specifications
• Ethernet: 2 x 10/100/100M Ethernet
• USB: 5 x USB 2.0, 1 x USB 3.0
• VGA: 2 x VGA
• Serial port: 10 serial ports, with RS-232/422/485
• Digital I/O: 12 GPIs and 12 GPOs
• Audio: 1 x speaker out (supports 2-ch 4w speaker), 1 x
line in
Mechnical and Environment
• Dimensions (W x H x D): 200 x 190 x 100 mm
• Voltage input: DC 9 ~ 36 V input
• Working temperature:
• Weight: 3.6 kg
(7.87" x 7.48" x 3.94")
-25 ~ 60° C (-13 ~ 140° F)
ITA-1711 Startup Manual 1
Advertisement
Table of Contents
Related Manuals for Advantech ITA-1711 Series
Summary of Contents for Advantech ITA-1711 Series
- Page 1 ITA-1711 Series Fanless Compact Embedded IPC with Intel Celeron Dual Core CPU Startup Manual Packing List Specifications Standard Functions Before you begin installing your IPC, please make sure that the following items have been shipped: • Chip and chipset: Intel Celeron processor J1900 1.
-
Page 2: Jumper Setting
Jumpers Jumper Setting The board has a number of jumpers that allow you to con- figure your system to suit your application. The table below lists the function of each of the jumpers. +V3.3_SB +V5_SB Name/Function JLVDS1 LVDS voltage setting JCOMS1 Clear CMOS setting VCCGPIO1... -
Page 3: Connector Definition
Connector Definition DIO Connector Definition Ethernet LED Definition The IPC has a DB25 DIO connector, which provides a The IPC has 2 RJ45 Ethernet connector, with LEDs show- 12-channel digital input connector and a 12-channel digital ing network status. output connector. The definition is as follow: LAN1 ~ LAN2 LED Status Pin Definition... -
Page 4: Safety Instructions
The sound pressure level at the operator’s position accord- ing to IEC 704-1:1982 is no more than 70 dB (A). DISCLAIMER: This set of instructions is given according to IEC 704-1. Advantech disclaims all responsibility for the accuracy of any statements contained herein. 4 ITA-1711 Startup Manual... - Page 5 LPT1 LVDS1 Conn. SATA_PWR1 LPC1 Conn. SATA2 SATA1 SATA_PWR2 GPIO VCCGPIO1 MSATA1 PSON1 SPI1 BIOS Slot COM3 SODIMM1 JCMOS1 JCMOS2 AMPL1 AMPR1 MINIPCIE1 BAT1 LPC2 LVDS2...
-
Page 6: Schematic Diagram
Schematic Diagram Front View Rear View 6 ITA-1711 Startup Manual...
