The following procedures will instruct you to install all modules into the ITA-260

sys-tem.

3.1.1

The ITA-260 motherboard supports a Mini PCIe or msata expansion card. Please ref

er to the installation procedure below.

Insert a Mini PCIe/msata card into motherboard MSATA1 slot.

Lock and fix the Mini PCIe or msata card via a copper pillar.

ITA-260_Series User Manual

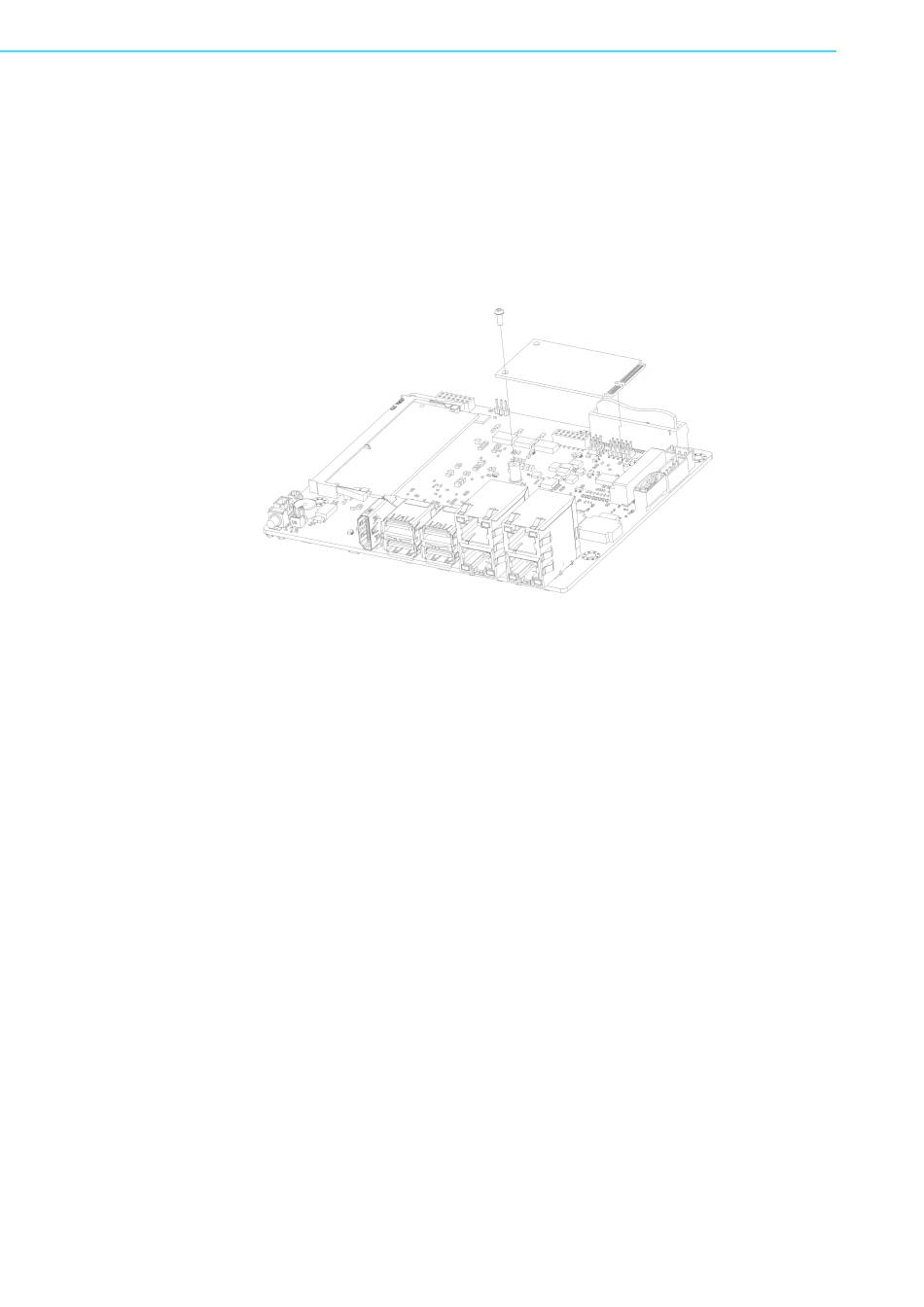

Figure 3.1 Installing the Motherboard MiniPCIe or

M-sata Card
