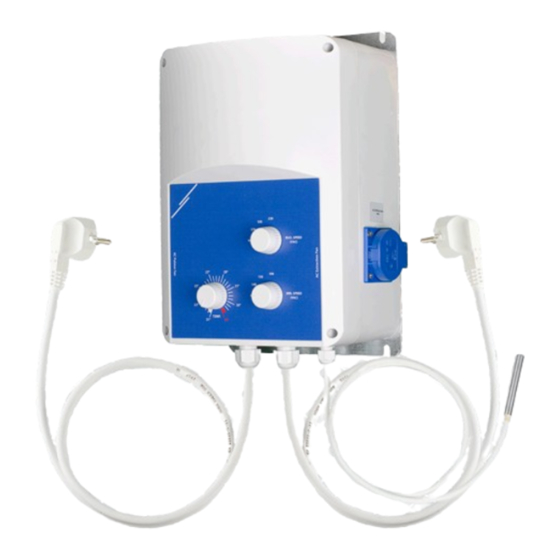

- Page 1 GTTE1 TRANSFORMER FAN SPEED CONTROLLER WITH ELECTRIC HEATING CONTROL Mounting and operating instructions...
-
Page 2: Table Of Contents
WIRING AND CONNECTIONS MOUNTING INSTRUCTIONS IN STEPS OPERATING INSTRUCTIONS VERIFICATION OF INSTALLATION TRANSPORT AND STORAGE WARRANTY AND RESTRICTIONS MAINTENANCE MIW-GTTE1-XXL22-EN-000 - 27 / 09 / 2023 MIW-GTTE1-XXL22-EN-000 - 27 / 09 / 2023 2 - 9 2 - 9 www.sentera.eu www.sentera.eu... -
Page 3: Safety And Precautions
In case there are any questions that are not answered, please contact your technical support or consult a professional. MIW-GTTE1-XXL22-EN-000 - 27 / 09 / 2023 3 - 9 www.sentera.eu... -
Page 4: Product Description
An electric heater can be controlled (ON/OFF ) via the extra output. The GTTE1 series are pre-wired and do have integrated sockets for fans and heater. -
Page 5: Operational Diagrams
* Of both pulsion and extraction fan. Pulsion and extraction fans operate at identical speed. ATTENTION Make sure you use cables with an appropriate diameter to connect the fans to the GTTE1 controller. MIW-GTTE1-XXL22-EN-000 - 27 / 09 / 2023 5 - 9 www.sentera.eu back to the table of contents... -
Page 6: Mounting Instructions In Steps
MIN. SPEED 27° 29° (VAC) 23° 33° 25° 31° TEMP. MIN. SPEED (VAC) 23° 33° TEMP. Fix the unit onto the wall / panel. MIW-GTTE1-XXL22-EN-000 - 27 / 09 / 2023 6 - 9 www.sentera.eu back to the table of contents... -
Page 7: Operating Instructions
The Schuko sockets are intended only for connecting two fans and a heater. The ATTENTION total load connected to sockets must not exceed the rated maximum current of the GTTE1 controller. Do not plug other types of electric appliances into them! OPERATING INSTRUCTIONS ATTENTION Make sure the connections are correct before you power the unit. -
Page 8: Verification Of Installation
The manufacturer bears no responsibility for any misprints or mistakes in this data. MIW-GTTE1-XXL22-EN-000 - 27 / 09 / 2023 8 - 9 www.sentera.eu... -
Page 9: Maintenance
In case of heavy pollution, clean with a non-aggressive product. In these circumstances the unit should be disconnected from the supply. Pay attention that no fluids enter the unit. Only reconnect it to the supply when it is completely dry. MIW-GTTE1-XXL22-EN-000 - 27 / 09 / 2023 9 - 9 www.sentera.eu...
