- Page 1 ELECTRONIC FAN SPEED CONTROLLER Mounting and operating instructions...
- Page 2 INTENDED AREA OF USE TECHNICAL DATA STANDARDS OPERATIONAL DIAGRAMS WIRING AND CONNECTIONS MOUNTING INSTRUCTIONS IN STEPS OPERATING INSTRUCTIONS TRANSPORT AND STORAGE WARRANTY AND RESTRICTIONS MAINTENANCE MIW-MT-EN-000 - 18 / 10 / 2021 2 - 8 www.sentera.eu back to the table of contents...
- Page 3 In case there are any questions that are not answered, please contact your technical support or consult a professional. MIW-MT-EN-000 - 18 / 10 / 2021 3 - 8 www.sentera.eu...

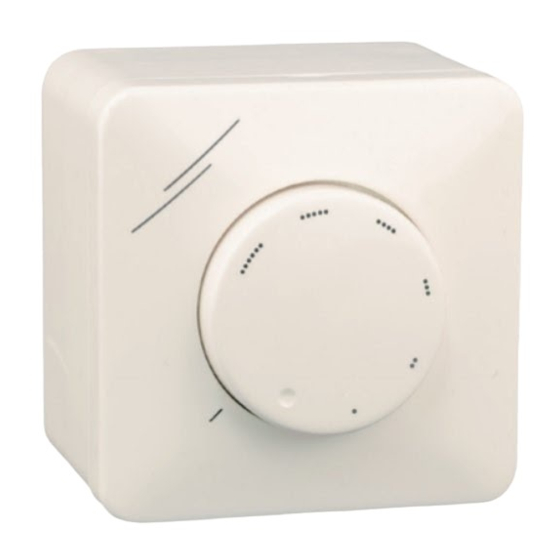

- Page 4 CONTROLLER PRODUCT DESCRIPTION The MT controllers provide manual control of the rotational speed of voltage controllable motors (230 VAC / 50 Hz) by varying the supplied voltage through phase angle control. They are suitable for both inset and surface mounting. Several motors can be connected as long as the current limit is not exceeded.
- Page 5 To disable the OFF position, connect the 230 VAC supply voltage to the ATTENTION unregulated output (). In this case do not connect the power supply to: . MIW-MT-EN-000 - 18 / 10 / 2021 5 - 8 www.sentera.eu back to the table of contents...
- Page 6 Adjust the minimal speed and turn off the controller. Mount back the cover using the nut. Put back the knob and turn it to off position. MIW-MT-EN-000 - 18 / 10 / 2021 6 - 8 www.sentera.eu back to the table of contents...
- Page 7 Replace the fuse. Mount all the parts back in place. ATTENTION Use only fuses with type and rating specified above. MIW-MT-EN-000 - 18 / 10 / 2021 7 - 8 www.sentera.eu back to the table of contents...
- Page 8 In case of heavy pollution, clean with a non-aggressive product. In these circumstances the unit should be disconnected from the supply. Pay attention that no fluids enter the unit. Only reconnect it to the supply when it is completely dry. MIW-MT-EN-000 - 18 / 10 / 2021 8 - 8 www.sentera.eu...
