- Page 1 SER-1 230 VAC TRANSFORMER CONTROLLER WITH SMOKE EVACUATION BUTTON Mounting and operating instructions...
- Page 2 SER-1 230 VAC TRANSFORMER CONTROLLER WITH SMOKE EVACUATION BUTTON Table of contents SAFETY AND PRECAUTIONS PRODUCT DESCRIPTION ARTICLE CODES INTENDED AREA OF USE TECHNICAL DATA STANDARDS OPERATIONAL DIAGRAM WIRING AND CONNECTIONS MOUNTING INSTRUCTIONS IN STEPS VERIFICATION OF INSTALLATION TRANSPORT AND STORAGE WARRANTY AND RESTRICTIONS MAINTENANCE MIW-SER-1-EN-000 - 23 / 02 / 2021...
- Page 3 SER-1 230 VAC TRANSFORMER CONTROLLER WITH SMOKE EVACUATION BUTTON SAFETY AND PRECAUTIONS Read all the information, the datasheet, mounting and operating instructions and study the wiring and connection diagram before working with the product. For personal and equipment safety, and for optimum product performance, make sure you entirely understand the contents before installing, using, or maintaining this product.

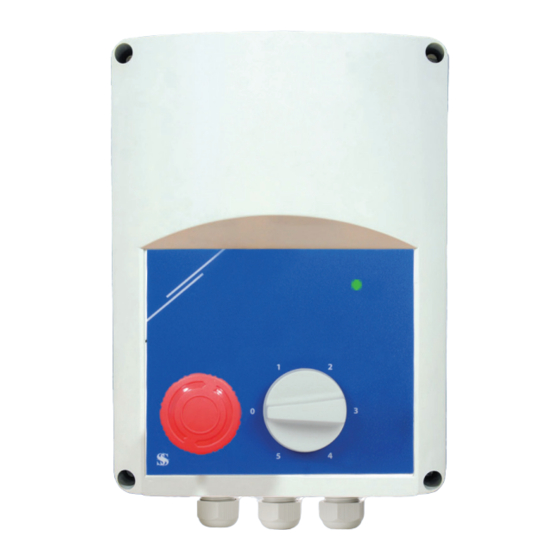

- Page 4 SMOKE EVACUATION BUTTON PRODUCT DESCRIPTION The SER-1 series of transformer fan speed controllers regulate the rotational speed of single-phase voltage controllable motors by varying the output voltage. They are equipped with an auto-transformer and control the speed manually in five steps.
- Page 5 SER-1 230 VAC TRANSFORMER CONTROLLER WITH SMOKE EVACUATION BUTTON OPERATIONAL DIAGRAM L22 series U [VAC] Knob position Unregulated output (L1) Regulated output (U) WIRING AND CONNECTIONS Power supply, line (230 VAC / 50—60 Hz) Power supply, neutral Unregulated output, neutral Unregulated output, line Regulated output to motor, neutral Regulated output to motor, line...
- Page 6 SER-1 230 VAC TRANSFORMER CONTROLLER WITH SMOKE EVACUATION BUTTON Respect the distances both between the wall / ceiling and the device and between two devices as shown in Fig. 2. In order to ensure sufficient ventilation of the controller, clearance on every side has to be maintained. When installing the device, please keep in mind that the higher you install it, the warmer the device will get.
- Page 7 SER-1 230 VAC TRANSFORMER CONTROLLER WITH SMOKE EVACUATION BUTTON ATTENTION Make sure the connections are correct before you power the unit. Close the cover and secure it with the screws. Turn the knob at ‘0’. Tighten the cable glands. Switch on the mains supply. Make sure the transformer controller can operate normally (consider an isolating switch).
- Page 8 SER-1 230 VAC TRANSFORMER CONTROLLER WITH SMOKE EVACUATION BUTTON ATTENTION Disconnect and confirm that there is no live current flowing to the unit before servicing. The unit is supplied with electrical energy at voltages high enough to inflict personal ATTENTION injury or threat to health.
