- Page 1 DM 822 S-DIAS Differential Pressure Input Module Instruction Manual Date of creation: 05.03.2015 Version date: 26.07.2023 Article number: 20-008-822-E...
- Page 2 (print, photocopy, microfilm or in any other process) without the express permission. We reserve the right to make changes in the content without notice. The SIGMATEK GmbH & Co KG is not responsible for technical or printing errors in the handbook and assumes no responsibility for damages that occur...

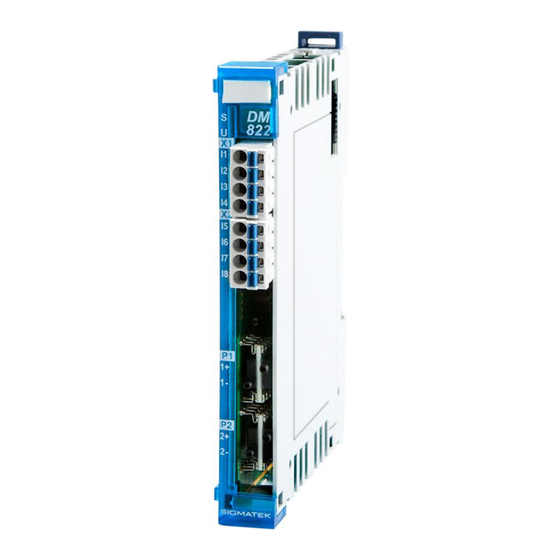

- Page 3 DM 822 with 2 differential pressure inputs 8 digital inputs The S-DIAS DM 822 differential pressure input module has two differential pressure inputs with a measurement range of -2068 … +2068 mBar and eight digital inputs (+24 V/3.7 mA/0.5 ms).
-
Page 4: Table Of Contents
DM 822 S-DIAS DIFFERENTIAL PRESSURE MODULE Contents Introduction ................5 Target Group/Purpose of this Operating Manual ...... 5 Important Reference Documentation ......... 5 Contents of Delivery ..............5 Basic Safety Directives ............6 Symbols Used ................6 Disclaimer ..................8 General Safety Directives ............ - Page 5 S-DIAS DIFFERENTIAL PRESSURE MODULE DM 822 Connector Layout ..............18 Status LEDs ................. 19 Applicable Connectors ............... 20 Label Field ................... 21 Wiring ..................22 Wiring Example ................22 Assembly/Installation ............23 Check Contents of Delivery ............23 Mounting ..................24 10 Addressing ................
- Page 6 DM 822 S-DIAS DIFFERENTIAL PRESSURE MODULE 14 Storage ...................32 15 Maintenance ................33 15.1 Service ..................33 15.2 Repair ................... 33 16 Disposal ..................33 Page 4 26.07.2023...
-
Page 7: Introduction
General knowledge of automation technology is required. Further help and training information, as well as the appropriate accessories can be found on our website www.sigmatek-automation.com. Our support team is happily available to answer your questions. Please see our website for our hotline number and business hours. -
Page 8: Basic Safety Directives
DM 822 S-DIAS DIFFERENTIAL PRESSURE MODULE Basic Safety Directives Symbols Used The following symbols are used in the operator documentation for warning and danger messages, as well as informational notes: DANGER Danger indicates that death or serious injury will occur, if the specified measures are not taken. - Page 9 S-DIAS DIFFERENTIAL PRESSURE MODULE DM 822 INFORMATION Information Provides important information on the product, handling or relevant sections of the documentation, which require attention. 26.07.2023 Page 7...
-
Page 10: Disclaimer
It does not guarantee properties under the warranty. Please thoroughly read the corresponding documents and this operating manual before handling a product. SIGMATEK GmbH & Co KG is not liable for damages caused through, non-compliance with these instructions or applicable regulations. -
Page 11: General Safety Directives
S-DIAS DIFFERENTIAL PRESSURE MODULE DM 822 General Safety Directives The Safety Directives in the other sections of this operating manual must be observed. These instructions are visually emphasized by symbols. INFORMATION According to EU Directives, the operating manual is a component of a product. -
Page 12: Software/Training
DM 822 S-DIAS DIFFERENTIAL PRESSURE MODULE CAUTION Handle the device with care and do not drop or let fall. Prevent foreign bodies and fluids from entering the device. The device must not be opened! Manipulez l’appareil avec précaution et ne le laissez pas tomber. -
Page 13: Standards And Directives
The product was constructed in compliance with the following European Union directives and tested for conformity. 3.1.1 EU Conformity Declaration EU Declaration of Conformity The product Dm 822 conforms to the following European directives: • 2014/35/EU Low-voltage Directive • 2014/30/EU Electromagnetic Compatibility (EMC Directive) •... -
Page 14: Type Plate
DM 822 S-DIAS DIFFERENTIAL PRESSURE MODULE 4 Type Plate HW: Hardware version SW: Software version Page 12 26.07.2023... -
Page 15: Technical Data
S-DIAS DIFFERENTIAL PRESSURE MODULE DM 822 Technical Data Differential Pressure Input Specifications Number Pressure sensor type difference pressure sensor Measurement range -2068 ... +2068 mbar -2068 … +2068 Measurement value Resolution 12-bit (ca. 1.0 mbar/LSB) Conversion time for all channels... -
Page 16: Digital Input Specifications
DM 822 S-DIAS DIFFERENTIAL PRESSURE MODULE Digital Input Specifications Number Input voltage typically +24 V maximum +30 V Signal level low: < +8 V high: > +14 V Signal level low: < +5 V high: > +15 V (starting with HW version 1.10) Input current 3.7 mA at +24 V... - Page 17 S-DIAS DIFFERENTIAL PRESSURE MODULE DM 822 26.07.2023 Page 15...
-
Page 18: Miscellaneous
DM 822 S-DIAS DIFFERENTIAL PRESSURE MODULE Miscellaneous Article number 20-008-822 Standard UL 508 (E247993) Approbations UL, cUL, CE, UKCA Environmental Conditions Storage temperature -20 ... +85 °C Environmental temperature 0 ... +60 °C Humidity 0-95 %, non-condensing Installation altitude above sea... -
Page 19: Mechanical Dimensions
S-DIAS DIFFERENTIAL PRESSURE MODULE DM 822 Mechanical Dimensions 26.07.2023 Page 17... -
Page 20: Connector Layout
DM 822 S-DIAS DIFFERENTIAL PRESSURE MODULE Connector Layout Page 18 26.07.2023... -
Page 21: Status Leds
S-DIAS DIFFERENTIAL PRESSURE MODULE DM 822 Status LEDs Module Status green module active no supply available BLINKING (5 Hz) no communication User yellow can be set from the application (e.g. the module LED can be set to blinking through the... -
Page 22: Applicable Connectors
DM 822 S-DIAS DIFFERENTIAL PRESSURE MODULE Applicable Connectors Connectors: X1-X2: Connectors with spring terminals (included in delivery) The spring terminals are suitable connecting ultrasonically compacted (ultrasonically welded) strands. Connections: Stripping length/Sleeve length: 10 mm Mating direction: parallel to the conductor axis or circuit board Conductor cross section rigid: 0.2-1.5 mm... -
Page 23: Label Field
S-DIAS DIFFERENTIAL PRESSURE MODULE DM 822 Label Field Manufacturer Weidmüller Type MF 10/5 CABUR MC NE WS Weidmüller article number 1854510000 Compatible printer Weidmüller Type Printjet Advanced 230V Weidmüller article number 1324380000 26.07.2023 Page 21... -
Page 24: Wiring
DM 822 S-DIAS DIFFERENTIAL PRESSURE MODULE Wiring Wiring Example Page 22 26.07.2023... -
Page 25: Assembly/Installation
S-DIAS DIFFERENTIAL PRESSURE MODULE DM 822 Assembly/Installation Check Contents of Delivery Ensure that the contents of the delivery are complete and intact. See chapter 1.3 Contents of Delivery. INFORMATION On receipt and before initial use, check the device for damage. If the device is damaged, contact our customer service and do not install the device in your system. -
Page 26: Mounting
DM 822 S-DIAS DIFFERENTIAL PRESSURE MODULE Mounting The S-DIAS modules are designed for installation into the control cabinet. To mount the modules a DIN-rail is required. The DIN rail must establish a conductive connection with the back wall of the control cabinet. The individual S-DIAS modules are mounted on the DIN rail as a block and secured with latches. - Page 27 S-DIAS DIFFERENTIAL PRESSURE MODULE DM 822 Recommended minimum distances of the S-DIAS modules to the surrounding components or control cabinet wall: a, b, c … distances in mm (inches) 26.07.2023 Page 25...
-
Page 28: Addressing
DM 822 S-DIAS DIFFERENTIAL PRESSURE MODULE 10 Addressing 10.1 Address Mapping Overview Address Size Description (hex) (bytes) 0000 Cyclic Data for Firmware 0080 Cyclic Data for the HW Class 0100 CFG for the Firmware 0180 CFG/version for the HW class... - Page 29 S-DIAS DIFFERENTIAL PRESSURE MODULE DM 822 Info (special-purpose or status bits) 0104 Bit 0 free Bit 1 boot loader/update request 0105 reserved Standard mode (info register bit 0 = 0) 0106 Cutoff frequency low pass filter input 1 0108 Cutoff frequency low pass filter input 1 AI1 →...
-
Page 30: Supported Cycle Times
DM 822 S-DIAS DIFFERENTIAL PRESSURE MODULE 11 Supported Cycle Times 11.1 Cycle Times below 1 ms (in µs) V1.00 11.2 Cycle Times equal to or above 1 ms (in ms) V1.00 V1.00 Page 28 26.07.2023... -
Page 31: Hardware Class Dm822
Hardware Class DM822 for the S-DIAS DM822 analog module This hardware class is used to control the DM 822 hardware module. The module has 8 digital inputs and 2 pressure inputs with a measurement range of -2068 mbar to +2068 mbar. -
Page 32: Interfaces
DM 822 S-DIAS DIFFERENTIAL PRESSURE MODULE 12.1 Interfaces 12.1.1 Clients The client must be connected to an S-DIAS port, an "SdiasOut"_[x]” server. SdiasIn Place The physical location of the hardware module is entered in this client. Up to 64 modules, 0 to 63, can be assigned. -
Page 33: Servers
S-DIAS DIFFERENTIAL PRESSURE MODULE DM 822 12.1.2 Servers ClassState This server shows the actual status of the hardware class. DeviceID The device ID of the hardware module is shown in this server. FPGAVersion FPGA version of the module in 16#XY (e.g. 16#10 = version 1.0). -
Page 34: Transport/Storage
DM 822 S-DIAS DIFFERENTIAL PRESSURE MODULE 13 Transport/Storage INFORMATION This device contains sensitive electronics. During transport and storage, high mechanical stress must therefore be avoided. For storage and transport, the same values for humidity and vibration as for operation must be maintained! Temperature and humidity fluctuations may occur during transport. - Page 35 S-DIAS DIFFERENTIAL PRESSURE MODULE DM 822 15 Maintenance INFORMATION During maintenance as well as servicing, observe the safety instructions from chapter 2 Basic Safety Directives. 15.1 Service This product was constructed for low-maintenance operation. 15.2 Repair INFORMATION In the event of a defect/repair, send the device with a detailed error description to the address listed at the beginning of this document.
- Page 36 DM 822 S-DIAS DIFFERENTIAL PRESSURE MODULE Documentation Changes Change date Affected Chapter Note page(s) 23.03.2015 1.1 Differential Pressure Input Changed resolution from 12-bit (ca. 0.3 mbar / LSB) Specifications to 12-bit (ca. 1.0 mbar / LSB) 26.03.2015 3.2 Applicable Connectors Added connections 21.01.2016...
