- Page 1 TO 127 S-DIAS Digital Output Module Operating Manual Date of creation: 27.06.2013 Version date: 26.07.2023 Article number: 20-007-127-E...
- Page 2 (print, photocopy, microfilm or in any other process) without the express permission. We reserve the right to make changes in the content without notice. The SIGMATEK GmbH & Co KG is not responsible for technical or printing errors in the handbook and assumes no responsibility for damages that occur...

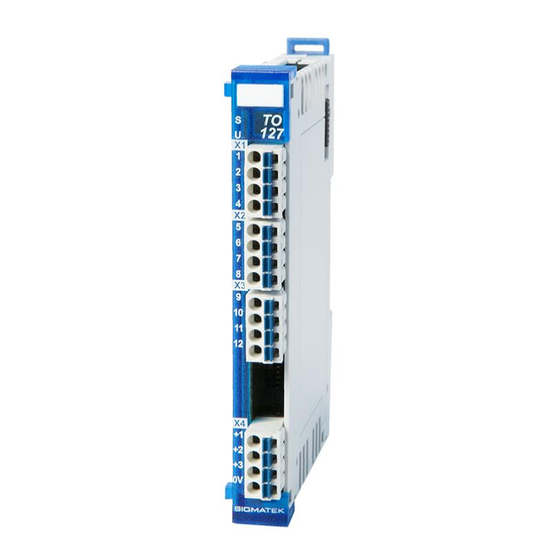

- Page 3 S-DIAS Digital Output Module TO 127 with 12 digital short-circuit proof outputs The S-DIAS TO 127 digital output module has 12 short-circuit proof digital outputs in three groups (+24 V/1.7 A). The supply voltage for each group is monitored for low voltage.
-
Page 4: Table Of Contents
TO 127 S-DIAS DIGITAL OUTPUT MODULE Contents Introduction ................5 Target Group/Purpose of this Operating Manual ...... 5 Important Reference Documentation ......... 5 Contents of Delivery ..............5 Basic Safety Directives ............6 Symbols Used ................6 Disclaimer ..................8 General Safety Directives ............ - Page 5 S-DIAS DIGITAL OUTPUT MODULE TO 127 Mechanical Dimensions ............16 Connector Layout ..............17 Status LEDs ................. 18 Applicable Connectors ............... 18 Label Field ................... 19 Wiring ..................20 Note ....................20 Wiring Example ................22 Assembly/Installation ............23 Check Contents of Delivery ............23 Mounting ..................
- Page 6 TO 127 S-DIAS DIGITAL OUTPUT MODULE 15.1 Cycle Times below 1 ms (in µs) ..........29 15.2 Cycle Times equal to or higher than 1 ms (in ms)....29 16 Hardware Class TO127 ............30 16.1 Interfaces ..................31 16.1.1 Clients ....................31 16.1.2...
-
Page 7: Introduction
General knowledge of automation technology is required. Further help and training information, as well as the appropriate accessories can be found on our website www.sigmatek-automation.com. Our support team is happily available to answer your questions. Please see our website for our hotline number and business hours. -
Page 8: Basic Safety Directives
TO 127 S-DIAS DIGITAL OUTPUT MODULE Basic Safety Directives Symbols Used The following symbols are used in the operator documentation for warning and danger messages, as well as informational notes: DANGER Danger indicates that death or serious injury will occur, if the specified measures are not taken. - Page 9 S-DIAS DIGITAL OUTPUT MODULE TO 127 INFORMATION Information Provides important information on the product, handling or relevant sections of the documentation, which require attention. 26.07.2023 Page 7...
-
Page 10: Disclaimer
It does not guarantee properties under the warranty. Please thoroughly read the corresponding documents and this operating manual before handling a product. SIGMATEK GmbH & Co KG is not liable for damages caused through, non-compliance with these instructions or applicable regulations. -
Page 11: General Safety Directives
S-DIAS DIGITAL OUTPUT MODULE TO 127 General Safety Directives The Safety Directives in the other sections of this operating manual must be observed. These instructions are visually emphasized by symbols. INFORMATION According to EU Directives, the operating manual is a component of a product. -
Page 12: Software/Training
TO 127 S-DIAS DIGITAL OUTPUT MODULE CAUTION Handle the device with care and do not drop or let fall. Prevent foreign bodies and fluids from entering the device. The device must not be opened! Manipulez l’appareil avec précaution et ne le laissez pas tomber. -
Page 13: Standards And Directives
The product was constructed in compliance with the following European Union directives and tested for conformity. 3.1.1 EU Conformity Declaration EU Declaration of Conformity The product TO 127 conforms to the following European directives: • 2014/35/EU Low-voltage Directive • 2014/30/EU Electromagnetic Compatibility (EMC Directive) •... -
Page 14: Type Plate
TO 127 S-DIAS DIGITAL OUTPUT MODULE Type Plate HW: Hardware version SW: Software version Page 12 26.07.2023... -
Page 15: Technical Data
S-DIAS DIGITAL OUTPUT MODULE TO 127 Technical Data Digital Output Specifications Number Short-circuit proof Maximum continuous current load 1.7 A allowed per channel Maximum total current 5,1 A at 40 °C ambient temperature (group) 3,4 A at 55 °C ambient temperature Maximum total current 15,3 A at 40 °C ambient temperature... - Page 16 TO 127 S-DIAS DIGITAL OUTPUT MODULE Page 14 26.07.2023...
-
Page 17: Voltage Monitor
S-DIAS DIGITAL OUTPUT MODULE TO 127 Voltage Monitor Supply voltage +24 V /1-3 supply voltage > 18 V (corresponding DC OK-LED lights green) Galvanic isolation Optic coupler, GND/EXTGND not galvanically isolated Safety-Relevant Parameters Calculation base IEC 61709 SN 29500 Conditions +40 °C... -
Page 18: Mechanical Dimensions
TO 127 S-DIAS DIGITAL OUTPUT MODULE Mechanical Dimensions Page 16 26.07.2023... -
Page 19: Connector Layout
S-DIAS DIGITAL OUTPUT MODULE TO 127 Connector Layout 26.07.2023 Page 17... -
Page 20: Status Leds
TO 127 S-DIAS DIGITAL OUTPUT MODULE Status LEDs Module Status green module active no supply available BLINKS (5 Hz) no communication User yellow settable through application (for example, the module LED can be set to blink through the visualization to make finding the module in the control cabinet... -
Page 21: Label Field
S-DIAS DIGITAL OUTPUT MODULE TO 127 Label Field Manufacturer Weidmüller Type MF 10/5 CABUR MC NE WS Weidmüller article number 1854510000 Compatible printer Weidmüller Type Printjet Advanced 230V Weidmüller article number 1324380000 26.07.2023 Page 19... -
Page 22: Wiring
TO 127 S-DIAS DIGITAL OUTPUT MODULE Wiring Note Always 4 outputs are supplied from a +24 V connection. The cross section of the +24 V and 0 V supply must be designed for the maximum output current drawn by a group. - Page 23 S-DIAS DIGITAL OUTPUT MODULE TO 127 A careful wiring technique is recommended to guarantee failure-free operation. The following guidelines should be observed: • Avoid parallel wiring between input lines and load-bearing circuits. • Protective circuits for all relays (RC networks or free-wheeling diodes) •...
-
Page 24: Wiring Example
TO 127 S-DIAS DIGITAL OUTPUT MODULE Wiring Example Page 22 26.07.2023... -
Page 25: Assembly/Installation
S-DIAS DIGITAL OUTPUT MODULE TO 127 Assembly/Installation Check Contents of Delivery Ensure that the contents of the delivery are complete and intact. See chapter 1.3 Contents of Delivery. INFORMATION On receipt and before initial use, check the device for damage. If the device is damaged, contact our customer service and do not install the device in your system. -
Page 26: Mounting
TO 127 S-DIAS DIGITAL OUTPUT MODULE Mounting The S-DIAS modules are designed for installation into the control cabinet. To mount the modules a DIN-rail is required. The DIN rail must establish a conductive connection with the back wall of the control cabinet. The individual S-DIAS modules are mounted on the DIN rail as a block and secured with latches. - Page 27 S-DIAS DIGITAL OUTPUT MODULE TO 127 Recommended minimum distances of the S-DIAS modules to the surrounding components or control cabinet wall: a, b, c … distances in mm (inches) 26.07.2023 Page 25...
-
Page 28: Transport/Storage
TO 127 S-DIAS DIGITAL OUTPUT MODULE 10 Transport/Storage INFORMATION This device contains sensitive electronics. During transport and storage, high mechanical stress must therefore be avoided. For storage and transport, the same values for humidity and vibration as for operation must be maintained! Temperature and humidity fluctuations may occur during transport. -
Page 29: Maintenance
S-DIAS DIGITAL OUTPUT MODULE TO 127 12 Maintenance INFORMATION During maintenance as well as servicing, observe the safety instructions from chapter 2 Basic Safety Directives. 12.1 Service This product was constructed for low-maintenance operation. 12.2 Repair INFORMATION In the event of a defect/repair, send the device with a detailed error description to the address listed at the beginning of this document. -
Page 30: Addressing
TO 127 S-DIAS DIGITAL OUTPUT MODULE 14 Addressing Address Size Access Type Description Reset value (hex) (bytes) Memory Output Register Bit 0 Output 1 0000 0000 Bit 1 Output 2 … Bit 15 Output 16 24 V Status Bit 0... -
Page 31: Supported Cycle Times
S-DIAS DIGITAL OUTPUT MODULE TO 127 15 Supported Cycle Times 15.1 Cycle Times below 1 ms (in µs) x= supported 15.2 Cycle Times equal to or higher than 1 ms (in ms) x= supported x= supported 26.07.2023 Page 29... -
Page 32: Hardware Class To127
16 Hardware Class TO127 TO127 Hardware Class for the TO 127 S-DIAS digital module This hardware class is used to control the TO 127 hardware module with 12 digital outputs. More information on the hardware can be found in the module documentation. -
Page 33: Interfaces
S-DIAS DIGITAL OUTPUT MODULE TO 127 16.1 Interfaces 16.1.1 Clients The client must be connected to an S-DIAS port, an "SdiasOut"_[x]” server. SdiasIn Place The physical location of the hardware module is entered in this client. Up to 64 modules, 0 to 63, can be assigned. -
Page 34: Example
TO 127 S-DIAS DIGITAL OUTPUT MODULE 16.2 Example Page 32 26.07.2023... - Page 35 S-DIAS DIGITAL OUTPUT MODULE TO 127 Documentation Changes Change date Affected Chapter Note page(s) 29.07.2013 Chapter Mounting added 24.10.2013 Added Vibration resistance 23.12.2013 3 Connector Layout Changed image 4.2 Wiring Example Added wiring example 10.02.2014 1.1 Digital Output Added Maximum total current (group) Specifications 11.02.2014...
- Page 36 TO 127 S-DIAS DIGITAL OUTPUT MODULE 28.02.2020 7 Supported Cycle Times Text adapted 08.09.2020 8 Hardware Class TO127 Chapter added 04.11.2020 5 Mounting Expansion functional ground connection 06.12.2022 1.5 Miscellaneous UKCA conformity 26.07.2023 Document General chapters added, design Page 34...
