- Page 1 DM 811 S-DIAS Absolute Pressure Input Module Instruction Manual Date of creation: 13.11.2015 Version date: 26.07.2023 Article number: 20-008-811-E...
- Page 2 (print, photocopy, microfilm or in any other process) without the express permission. We reserve the right to make changes in the content without notice. The SIGMATEK GmbH & Co KG is not responsible for technical or printing errors in the handbook and assumes no responsibility for damages that occur...

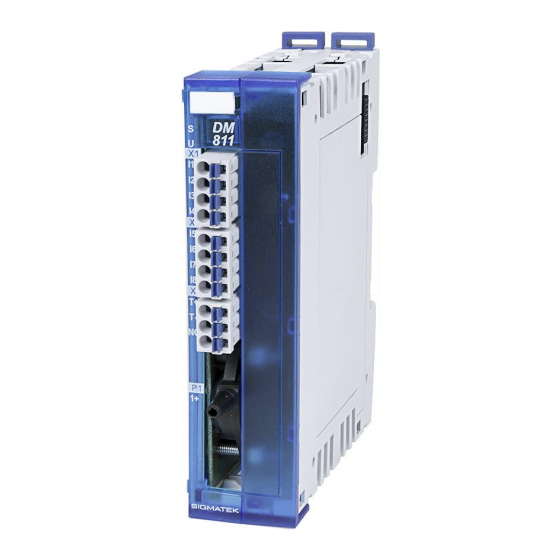

- Page 3 1 absolute pressure input 1 PT100 temperature input and 8 digital inputs The S-DIAS DM 811 absolute pressure input module has one absolute pressure input with a measurement range of 0-1600 mbar, one PT100 temperature input 0-300 °C and eight digital inputs (+24 V/3.7 mA/0.5 ms).
-
Page 4: Table Of Contents
DM 811 S-DIAS ABSOLUTE PRESSURE INPUT MODULE Contents Introduction ................5 Target Group/Purpose of this Operating Manual ...... 5 Important Reference Documentation ......... 5 Contents of Delivery ..............5 Basic Safety Directives ............6 Symbols Used ................6 Disclaimer ..................8 General Safety Directives ............ - Page 5 S-DIAS ABSOLUTE PRESSURE INPUT MODULE DM 811 Mechanical Dimensions ............18 Connector Layout ..............19 Status LEDs ................. 20 Applicable Connectors ............... 21 Label Field ................... 22 Wiring ..................23 Wiring Example ................23 Assembly/Installation ............24 Check Contents of Delivery ............24 Mounting ..................
- Page 6 DM 811 S-DIAS ABSOLUTE PRESSURE INPUT MODULE 12.1.4 Temperature Input External and Internal ....... 33 12.1.5 Communication Interfaces ............. 33 12.2 Global Methods ................34 12.2.1 WriteUserCalib ............... 34 12.2.2 ReadUserCalib ..............35 13 Transport/Storage ..............36 14 Storage ...................36 15 Maintenance ................37 15.1...
-
Page 7: Introduction
General knowledge of automation technology is required. Further help and training information, as well as the appropriate accessories can be found on our website www.sigmatek-automation.com. Our support team is happily available to answer your questions. Please see our website for our hotline number and business hours. -
Page 8: Basic Safety Directives
DM 811 S-DIAS ABSOLUTE PRESSURE INPUT MODULE Basic Safety Directives Symbols Used The following symbols are used in the operator documentation for warning and danger messages, as well as informational notes: DANGER Danger indicates that death or serious injury will occur, if the specified measures are not taken. - Page 9 S-DIAS ABSOLUTE PRESSURE INPUT MODULE DM 811 INFORMATION Information Provides important information on the product, handling or relevant sections of the documentation, which require attention. 26.07.2023 Page 7...
-
Page 10: Disclaimer
It does not guarantee properties under the warranty. Please thoroughly read the corresponding documents and this operating manual before handling a product. SIGMATEK GmbH & Co KG is not liable for damages caused through, non-compliance with these instructions or applicable regulations. -
Page 11: General Safety Directives
S-DIAS ABSOLUTE PRESSURE INPUT MODULE DM 811 General Safety Directives The Safety Directives in the other sections of this operating manual must be observed. These instructions are visually emphasized by symbols. INFORMATION According to EU Directives, the operating manual is a component of a product. -
Page 12: Software/Training
DM 811 S-DIAS ABSOLUTE PRESSURE INPUT MODULE CAUTION Handle the device with care and do not drop or let fall. Prevent foreign bodies and fluids from entering the device. The device must not be opened! Manipulez l’appareil avec précaution et ne le laissez pas tomber. -
Page 13: Standards And Directives
The product was constructed in compliance with the following European Union directives and tested for conformity. 3.1.1 EU Conformity Declaration EU Declaration of Conformity The product DM 811 conforms to the following European directives: • 2014/35/EU Low-voltage Directive • 2014/30/EU Electromagnetic Compatibility (EMC Directive) •... -
Page 14: Type Plate
DM 811 S-DIAS ABSOLUTE PRESSURE INPUT MODULE Type Plate HW: Hardware version SW: Software version Page 12 26.07.2023... -
Page 15: Technical Data
S-DIAS ABSOLUTE PRESSURE INPUT MODULE DM 811 Technical Data Absolute Pressure Input Specifications Number Pressure sensor type absolute pressure sensor Measurement range 0-1600 mbar Measurement value 0-16000 Resolution 12-bit (ca. 0.4 mbar/LSB) Conversion time for all channels 1 ms Input filter hardware... -
Page 16: Temperature Input Specifications (Pt100)
DM 811 S-DIAS ABSOLUTE PRESSURE INPUT MODULE Temperature Input Specifications (PT100) Number 100.0-212.1 Measurement range PT100 0-300 °C Resolution 0.1 °C Conversion time per channel 1 ms Cable break monitor Input filter hardware typically1 kHz low pass 3 order system... -
Page 17: Electrical Requirements
S-DIAS ABSOLUTE PRESSURE INPUT MODULE DM 811 Electrical Requirements Voltage supply from the S-DIAS +5 V Current consumption on the typically 60 mA maximum 65 mA S-DIAS bus (+5 V power supply) Voltage supply from the S-DIAS +24 V Current consumption on the... - Page 18 DM 811 S-DIAS ABSOLUTE PRESSURE INPUT MODULE Page 16 26.07.2023...
-
Page 19: Miscellaneous
S-DIAS ABSOLUTE PRESSURE INPUT MODULE DM 811 Miscellaneous Article number 20-008-811 Standard UL 508 (E247993) Approbations UL, cUL, CE Environmental Conditions Storage temperature -20 ... +85 °C Environmental temperature 0 ... +60 °C Humidity 0-95 %, non-condensing Installation altitude above sea... -
Page 20: Mechanical Dimensions
DM 811 S-DIAS ABSOLUTE PRESSURE INPUT MODULE Mechanical Dimensions Page 18 26.07.2023... -
Page 21: Connector Layout
S-DIAS ABSOLUTE PRESSURE INPUT MODULE DM 811 Connector Layout 26.07.2023 Page 19... -
Page 22: Status Leds
DM 811 S-DIAS ABSOLUTE PRESSURE INPUT MODULE Status LEDs Module Status green module active no supply available BLINKING (5 Hz) no communication User yellow can be set from the application (e.g. the module LED can be set to blinking through the... -
Page 23: Applicable Connectors
S-DIAS ABSOLUTE PRESSURE INPUT MODULE DM 811 Applicable Connectors Connectors: X1-X3: Connectors with spring terminals (included in delivery) The spring terminals are suitable connecting ultrasonically compacted (ultrasonically welded) strands. Connections: Ferrule without/with plastic sleeve: 0.2-1.5/0.2-0.75 mm Stripping length/Sleeve length: 10 mm Conductor cross section rigid: 0.2-1.5 mm... -
Page 24: Label Field
DM 811 S-DIAS ABSOLUTE PRESSURE INPUT MODULE Label Field Manufacturer Weidmüller Type MF 10/5 CABUR MC NE WS Weidmüller article number 1854510000 Compatible printer Weidmüller Type Printjet Advanced 230V Weidmüller article number 1324380000 Page 22 26.07.2023... -
Page 25: Wiring
S-DIAS ABSOLUTE PRESSURE INPUT MODULE DM 811 Wiring Wiring Example 26.07.2023 Page 23... -
Page 26: Assembly/Installation
DM 811 S-DIAS ABSOLUTE PRESSURE INPUT MODULE Assembly/Installation Check Contents of Delivery Ensure that the contents of the delivery are complete and intact. See chapter 1.3 Contents of Delivery. INFORMATION On receipt and before initial use, check the device for damage. If the device is damaged, contact our customer service and do not install the device in your system. -
Page 27: Mounting
S-DIAS ABSOLUTE PRESSURE INPUT MODULE DM 811 Mounting The S-DIAS modules are designed for installation into the control cabinet. To mount the modules a DIN-rail is required. The DIN rail must establish a conductive connection with the back wall of the control cabinet. The individual S-DIAS modules are mounted on the DIN rail as a block and secured with latches. - Page 28 DM 811 S-DIAS ABSOLUTE PRESSURE INPUT MODULE Recommended minimum distances of the S-DIAS modules to the surrounding components or control cabinet wall: a, b, c … distances in mm (inches) Page 26 26.07.2023...
-
Page 29: Addressing
S-DIAS ABSOLUTE PRESSURE INPUT MODULE DM 811 10 Addressing 10.1 Address Mapping Overview Address Size Description (hex) (bytes) 0000 Cyclic Data for Firmware 0080 Cyclic Data for the HW Class 0100 CFG for the Firmware 0180 CFG/version for the HW class... - Page 30 DM 811 S-DIAS ABSOLUTE PRESSURE INPUT MODULE Info (special-purpose or status bits) 0104 Bit 0 free Bit 1 boot loader/update request 0105 reserved Standard mode (info register bit 0 = 0) 0106 Cutoff frequency low pass filter input 1 0108 Cutoff frequency low pass filter input 1 AI1 →...
-
Page 31: Supported Cycle Times
S-DIAS ABSOLUTE PRESSURE INPUT MODULE DM 811 11 Supported Cycle Times 11.1 Cycle Times below 1 ms (in µs) V1.00 11.2 Cycle Times equal to or above 1 ms (in ms) V1.00 V1.00 26.07.2023 Page 29... -
Page 32: Hardware Class Dm811
12 Hardware Class DM811 Hardware Class DM811 for the S-DIAS DM0811 analog module This hardware class is used to control the DM 811 hardware module. The module has a pressure input with a measuring range from 0-1600 mBar, a temperature sensor (PT100) and eight digital inputs (+24 V/3.7 mA/0.5 ms). -
Page 33: Interfaces
S-DIAS ABSOLUTE PRESSURE INPUT MODULE DM 811 12.1 Interfaces 12.1.1 General Class State State Shows the actual status of the hardware class. Device ID State Shows the Device ID of the hardware module. FPGA Version State FPGA version of the module in 16#XY (e.g. 16#10 = version 1.0). -
Page 34: Digital Inputs 1-8
DM 811 S-DIAS ABSOLUTE PRESSURE INPUT MODULE Range State This server shows, whether a limit violation is active on one of the inputs. Detection Bit 0 maximum value of pressure input exceeded Bit 1 maximum value of external temperature sensor exceeded... -
Page 35: Temperature Input External And Internal
S-DIAS ABSOLUTE PRESSURE INPUT MODULE DM 811 12.1.4 Temperature Input External and Internal Temperature Input Value of the temperature sensor in 1/10 degrees, status queried over read(). internal Temp Intern Property In this client, the cutoff frequency for the software low pass filter is set. Value... -
Page 36: Global Methods
DM 811 S-DIAS ABSOLUTE PRESSURE INPUT MODULE 12.2 Global Methods 12.2.1 WriteUserCalib Method for writing of user specific calibration or linearization data to the flash memory of the module. Transfer parameters Type Description RawValue1 Raw value from the pressure sensor for reference pressure 1 (e.g. -
Page 37: Readusercalib
S-DIAS ABSOLUTE PRESSURE INPUT MODULE DM 811 12.2.2 ReadUserCalib Method for reading user specific calibration data from the flash memory of the module. Transfer parameters Type Description pUserCalibData ^ t_UserCalibReadData Pointer to the calibration data read by the module Return parameters... -
Page 38: Transport/Storage
DM 811 S-DIAS ABSOLUTE PRESSURE INPUT MODULE 13 Transport/Storage INFORMATION This device contains sensitive electronics. During transport and storage, high mechanical stress must therefore be avoided. For storage and transport, the same values for humidity and vibration as for operation must be maintained! Temperature and humidity fluctuations may occur during transport. -
Page 39: Maintenance
S-DIAS ABSOLUTE PRESSURE INPUT MODULE DM 811 15 Maintenance INFORMATION During maintenance as well as servicing, observe the safety instructions from chapter 2 Basic Safety Directives. 15.1 Service This product was constructed for low-maintenance operation. 15.2 Repair INFORMATION In the event of a defect/repair, send the device with a detailed error description to the address listed at the beginning of this document. - Page 40 DM 811 S-DIAS ABSOLUTE PRESSURE INPUT MODULE Documentation Changes Change date Affected Chapter Note page(s) 18.02.2016 1.4 Electrical Requirements Graphics added 28.04.2016 5 Mounting Graphics distances 09.12.2016 1.5 Miscellaneous UL added 17.08.2017 1.6 Environmental Conditions Pollution Degree 3.2 Applicable Connectors...
