Summary of Contents for SIGMATEK TO 081
- Page 1 TO 081 S-DIAS Digital Output Module Instruction Manual Date of creation: 17.02.2014 Version date: 26.07.2023 Article number: 20-007-081-E...
- Page 2 (print, photocopy, microfilm or in any other process) without the express permission. We reserve the right to make changes in the content without notice. The SIGMATEK GmbH & Co KG is not responsible for technical or printing errors in the handbook and assumes no responsibility for damages that occur...

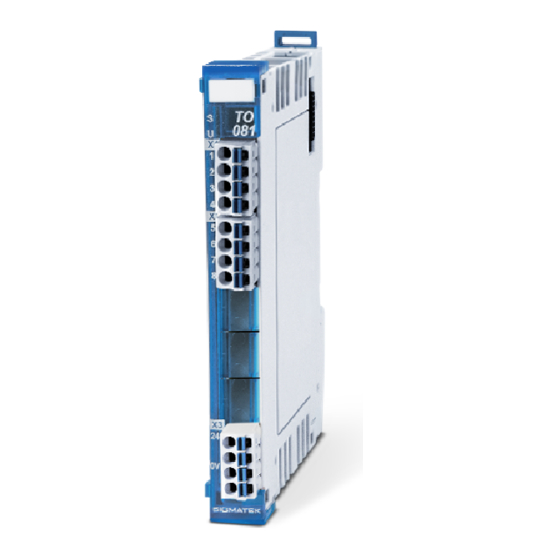

- Page 3 S-DIAS Digital Output Module TO 081 with 8 short-circuit proof digital outputs The S-DIAS TO 081 digital output module has eight short-circuit proof outputs in a group (+24 V/0.5 A/short-circuit proof). The power supply for the group is monitored for under voltage.
-
Page 4: Table Of Contents
TO 081 S-DIAS DIGITAL OUTPUT MODULE Contents Introduction ................5 Target Group/Purpose of this Operating Manual ...... 5 Important Reference Documentation ......... 5 Contents of Delivery ..............5 Basic Safety Directives ............6 Symbols Used ................6 Disclaimer ..................8 General Safety Directives ............ - Page 5 S-DIAS DIGITAL OUTPUT MODULE TO 081 Connector Layout ..............17 Status LEDs ................. 18 Applicable Connectors ............... 18 Label Field ................... 19 Wiring ..................20 General Information on the Digital Outputs ......20 Wiring Example ................21 Note ....................22 Connecting Inductive Loads ............
- Page 6 TO 081 S-DIAS DIGITAL OUTPUT MODULE 15.1 Cycle Times below 1 ms (in µs) ..........29 15.2 Cycle Times equal to or higher than 1 ms (in ms)....29 16 Hardware Class TO081 ............30 16.1 Interfaces ..................31 16.1.1 Clients ....................31 16.1.2...
-
Page 7: Introduction
General knowledge of automation technology is required. Further help and training information, as well as the appropriate accessories can be found on our website www.sigmatek-automation.com. Our support team is happily available to answer your questions. Please see our website for our hotline number and business hours. -
Page 8: Basic Safety Directives
TO 081 S-DIAS DIGITAL OUTPUT MODULE Basic Safety Directives Symbols Used The following symbols are used in the operator documentation for warning and danger messages, as well as informational notes: DANGER Danger indicates that death or serious injury will occur, if the specified measures are not taken. - Page 9 S-DIAS DIGITAL OUTPUT MODULE TO 081 INFORMATION Information Provides important information on the product, handling or relevant sections of the documentation, which require attention. 26.07.2023 Page 7...
-
Page 10: Disclaimer
It does not guarantee properties under the warranty. Please thoroughly read the corresponding documents and this operating manual before handling a product. SIGMATEK GmbH & Co KG is not liable for damages caused through, non-compliance with these instructions or applicable regulations. -
Page 11: General Safety Directives
S-DIAS DIGITAL OUTPUT MODULE TO 081 General Safety Directives The Safety Directives in the other sections of this operating manual must be observed. These instructions are visually emphasized by symbols. INFORMATION According to EU Directives, the operating manual is a component of a product. -
Page 12: Software/Training
TO 081 S-DIAS DIGITAL OUTPUT MODULE CAUTION Handle the device with care and do not drop or let fall. Prevent foreign bodies and fluids from entering the device. The device must not be opened! Manipulez l’appareil avec précaution et ne le laissez pas tomber. -
Page 13: Standards And Directives
The product was constructed in compliance with the following European Union directives and tested for conformity. 3.1.1 EU Conformity Declaration EU Declaration of Conformity The product TO 081 conforms to the following European directives: • 2014/35/EU Low-voltage Directive • 2014/30/EU Electromagnetic Compatibility (EMC Directive) •... -
Page 14: Type Plate
TO 081 S-DIAS DIGITAL OUTPUT MODULE Type Plate HW: Hardware version SW: Software version Page 12 26.07.2023... -
Page 15: Technical Data
S-DIAS DIGITAL OUTPUT MODULE TO 081 Technical Data Digital Outputs Specifications Number Short-circuit proof Maximum continuous current load 0.5 A allowed per channel Maximum total current 4 A (100% of on-time) (entire module) Maximum braking energy of maximum 1 Joule / channel outputs (inductive load) ≤... - Page 16 TO 081 S-DIAS DIGITAL OUTPUT MODULE Page 14 26.07.2023...
-
Page 17: Voltage Monitor
S-DIAS DIGITAL OUTPUT MODULE TO 081 Voltage Monitor +24 V supply voltage supply voltage > 18 V (DC OK-LED lights green) Miscellaneous Article number 20-007-081 Standard UL 508 (E247993) Approbations UL, cUL, CE, UKCA Environmental Conditions Storage temperature -20 ... +85 °C Environmental temperature 0 ... -
Page 18: Mechanical Dimensions
TO 081 S-DIAS DIGITAL OUTPUT MODULE Mechanical Dimensions Page 16 26.07.2023... -
Page 19: Connector Layout
S-DIAS DIGITAL OUTPUT MODULE TO 081 Connector Layout INFORMATION The pins 3 & 4 of the connector X3 are bridged within the module. For the GND supply of the module only the connection of pin 3 is necessary. The internally bridged connections may be used for further looping of the GND supply. -
Page 20: Status Leds
TO 081 S-DIAS DIGITAL OUTPUT MODULE Status LEDs Module Status green module active no supply available BLINKING (5 Hz) no communication User yellow can be set from the application (e.g. the module LED can be set to blinking through the... -
Page 21: Label Field
S-DIAS DIGITAL OUTPUT MODULE TO 081 Label Field Manufacturer Weidmüller Type MF 10/5 CABUR MC NE WS Weidmüller article number 1854510000 Compatible printer Weidmüller Type Printjet Advanced 230V Weidmüller article number 1324380000 26.07.2023 Page 19... -
Page 22: Wiring
TO 081 S-DIAS DIGITAL OUTPUT MODULE Wiring General Information on the Digital Outputs The cross sectional area of the +24 V supply must be designed for the maximum output current drawn by a group. The outputs can be turned off by disconnecting the +24 V supply voltage. -
Page 23: Wiring Example
S-DIAS DIGITAL OUTPUT MODULE TO 081 Wiring Example 26.07.2023 Page 21... -
Page 24: Note
TO 081 S-DIAS DIGITAL OUTPUT MODULE Note The following guidelines should be observed: • Avoid parallel wiring between input lines and load-bearing circuits. • Protective circuits for all relays (RC networks or free-wheeling diodes) • Correct wiring to ground Connecting Inductive Loads... -
Page 25: Assembly/Installation
S-DIAS DIGITAL OUTPUT MODULE TO 081 Assembly/Installation Check Contents of Delivery Ensure that the contents of the delivery are complete and intact. See chapter Contents of Delivery. INFORMATION On receipt and before initial use, check the device for damage. If the device is damaged, contact our customer service and do not install the device in your system. -
Page 26: Mounting
TO 081 S-DIAS DIGITAL OUTPUT MODULE Mounting The S-DIAS modules are designed for installation into the control cabinet. To mount the modules a DIN-rail is required. The DIN rail must establish a conductive connection with the back wall of the control cabinet. The individual S-DIAS modules are mounted on the DIN rail as a block and secured with latches. - Page 27 S-DIAS DIGITAL OUTPUT MODULE TO 081 Recommended minimum distances of the S-DIAS modules to the surrounding components or control cabinet wall: a, b, c … distances in mm (inches) 26.07.2023 Page 25...
-
Page 28: Transport/Storage
TO 081 S-DIAS DIGITAL OUTPUT MODULE 10 Transport/Storage INFORMATION This device contains sensitive electronics. During transport and storage, high mechanical stress must therefore be avoided. For storage and transport, the same values for humidity and vibration as for operation must be maintained! Temperature and humidity fluctuations may occur during transport. -
Page 29: Maintenance
S-DIAS DIGITAL OUTPUT MODULE TO 081 12 Maintenance INFORMATION During maintenance as well as servicing, observe the safety instructions from chapter 2 Basic Safety Directives. 12.1 Service This product was constructed for low-maintenance operation. 12.2 Repair INFORMATION In the event of a defect/repair, send the device with a detailed error description to the address listed at the beginning of this document. -
Page 30: Addressing
TO 081 S-DIAS DIGITAL OUTPUT MODULE 14 Addressing Address Size Access Type Description Reset value (hex) (bytes) Memory Output Register Bit 0 Output 1 0000 Bit 1 Output 2 … Bit 7 Output 8 24 V status 0002 Bit 0... -
Page 31: Supported Cycle Times
S-DIAS DIGITAL OUTPUT MODULE TO 081 15 Supported Cycle Times 15.1 Cycle Times below 1 ms (in µs) x= supported 15.2 Cycle Times equal to or higher than 1 ms (in ms) x= supported x= supported 26.07.2023 Page 29... -
Page 32: Hardware Class To081
16 Hardware Class TO081 Hardware Class TO081 for the S-DIAS TO081 digital module This hardware class is used to control the TO 081 hardware module with 8 digital outputs. More information on the hardware can be found in the module documentation. -
Page 33: Interfaces
S-DIAS DIGITAL OUTPUT MODULE TO 081 16.1 Interfaces 16.1.1 Clients The client must be connected to an S-DIAS port, an "SdiasOut"_[x]” server. SdiasIn Place The physical location of the hardware module is entered in this client. Up to 64 modules, 0 to 63, can be assigned. -
Page 34: Example
TO 081 S-DIAS DIGITAL OUTPUT MODULE 16.2 Example Page 32 26.07.2023... - Page 35 S-DIAS DIGITAL OUTPUT MODULE TO 081 Documentation Changes Change date Affected Chapter Note page(s) 01.04.2014 1.4 Miscellaneous UL added 5 Mounting Text updated 30.01.2015 4.3 Note Added note concerning connecting the S-DIAS module while voltage is applied 26.03.2015 3.2 Applicable Connectors Added connections 28.04.2016...
- Page 36 TO 081 S-DIAS DIGITAL OUTPUT MODULE Page 34 26.07.2023...
