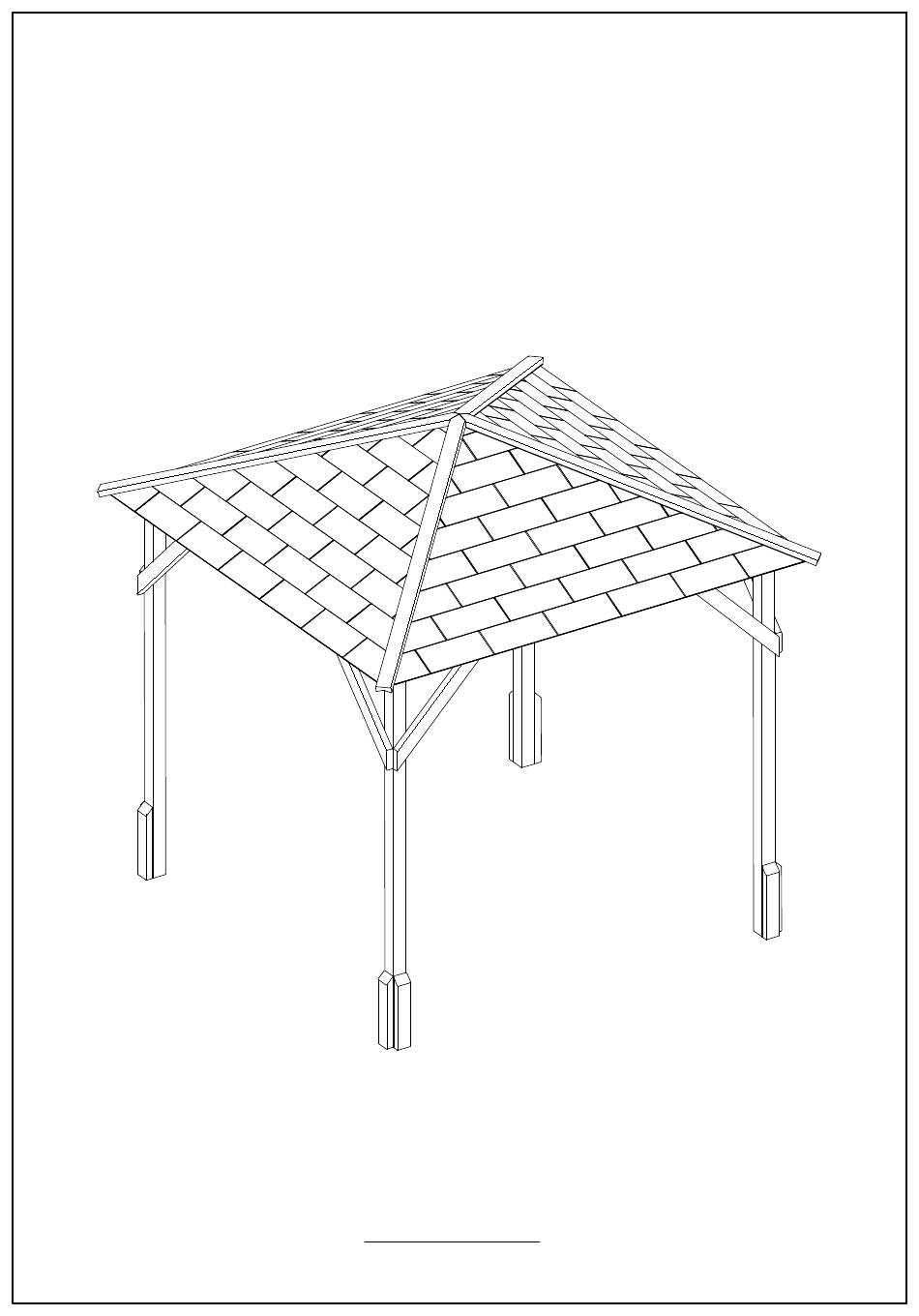

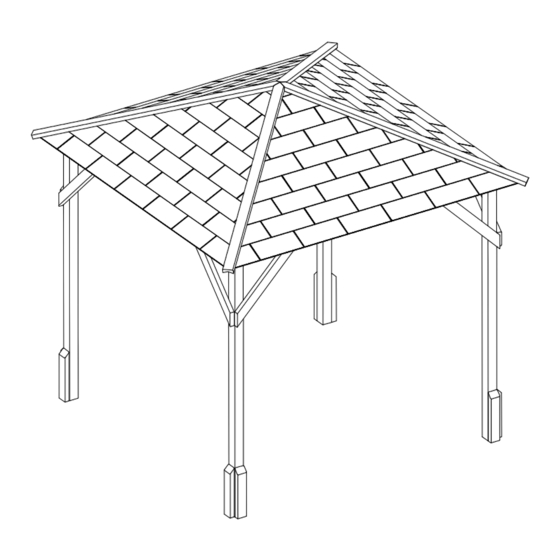

- Page 1 Installation Manual Utopia 200 Gazebo 2m x 2m H3-GS2X2MK2 Unique product reference number ................. www.dunsterhouse.co.uk...
- Page 2 In the unlikely event that you need to contact us, please do so in writing to: Email: cs@dunsterhouse.co.uk Post: FAO Customer Services, Dunster House Ltd - Factory 1, Caxton Road, Bedford, MK41 0LF Our Customer Services department is open 9:00 - 17:00, Monday to Friday. Please include your Sales Order number starting with SO or your postcode so we can locate your order.
- Page 3 In the unlikely event that you need to contact us, please do so in writing to: Email: cs@dunsterhouse.co.uk Post: Dunster House Ltd., Caxton Road, Elms Farm Industrial Estate, Bedford, MK41 0LF, England. Our Customer Service department is open 9 a.m. - 5 p.m. Monday to Friday. Please include your Sales Order (SO) number in any correspondence with Customer Services to enable them to locate your file.
- Page 4 Utopia Pergola 2m x 2m Installation Manual Preparation for Assembly To build your Pergola you will need: Two people, a stepladder, hammer, sharp knife, drill with drill bits, spirit level, screwdriver, saw, pair of pliers and a measuring tape. As a precautionary measure, protective gloves can be worn. Foundation A correct foundation is paramount to installing your Pergola correctly.
- Page 5 Components required for Utopia 200 Gazebo 2m x 2m 70x70x1900.C 4x Pressure Treated Wall Posts 1900 35x35x2238 70x35x350.C 1x Pressure Treated Temporary Support Post 8x Pressure Treated Post Trim 2238 65x35x2000.C Bottom Cap 1x Pressure Treated 4x Pressure Treated Roof Support Board 2000 70x35x1700.C 1700...
- Page 6 Utopia 200 Gazebo 2m x 2m Installation Manual Step 1 Make sure notches on components 70x70x1900.C are facing inside the Components required: Gazebo. Wall Posts - 70x70x1900.C (4 required) Roof Support Boards - 65x35x2000.C (4 required) 70mm Screws (16 required) Please remember to pre-drill all holes before fixing, to avoid the splitting of timber.
- Page 7 Utopia 200 Gazebo 2m x 2m Installation Manual Step 2 Components required: Post Brace - 70x35x650.C (8 required) 70mm Screws (24 required) 95mm Screws (8 required) Fix the post braces. Once the frame is assembled, fix the post braces 70x35x650.C in the positions shown using 3x 70mm screws and 1x 95mm screw per post brace.
- Page 8 Utopia 200 Gazebo 2m x 2m Installation Manual Step 3 Components required: Roof Panel (2 required) 70mm Screws (8 required) 95mm Screws (4 required) STEP 3A. Fix the roof panel to the Gazebo frame. Lift the Roof Panel into position, resting on the lower notch, with the corner supports of the roof panel flush against the Roof Panel Roof Support Board.
- Page 9 Utopia 200 Gazebo 2m x 2m Installation Manual Step 3 continued Components required: Roof Panel (2 required) Roof Connector - 35x35x100 (1 required) 70mm Screws (16 required) 95mm Screws (4 required) STEP 3D. Fix the Roof Connector to the 2 roof panels. x2 95mm Screws At the top end of the roof panel, attach the roof connector 35x35x100 by screwing diagonally...
- Page 10 Utopia 200 Gazebo 2m x 2m Installation Manual Step 4 Roof Board Roof Board Components required: Bottom Roof Board - SHIPx2175.A (4 required) 35mm Screws (16 required) Fix the Bottom Roof Board (SHIPx2175.A) to the Roof Panel. Use 4x 35mm screws per Bottom Roof Board (SHIPx2175.A) to fix into position.
- Page 11 Utopia 200 Gazebo 2x2m Installation Manual Step 7 Components required: Post Trim (70x35x350.C) (8 required) 70mm Screws (16 required) Fix the Post Trim (70x35x350.C) to the bottom of the Gazebo Wall Posts. On the base of the wall posts, fix 2x Post Trims (70x35x350.C) to each wall post on the outside of the Gazebo.
- Page 12 Utopia 200 Gazebo 2x2m Installation Manual Step 9 Once you have fixed the bottom row of shingles (with the cut outs pointing towards the roof) you can now fully cover the roof of your gazebo with shingles. All of the strips of shingles will now have the cut outs pointing towards the ground.
- Page 13 Utopia 200 Gazebo 2x2m Installation Manual Components required: Roll of felt Top of 1st layer of roof felt 10mm clout nails (600 required) Lowest edge Roof Membrane Fully cover the roof with plastic waterproof membrane leaving a minimum of 30mm overhang.
- Page 14 Utopia 200 Gazebo 2x2m Installation Manual Felt - Step 3 of 4 For each of the 4 ridges, cut a length of felt in half and nail alongside the ridge, overlapping by approximately 250mm. Use 10mm clout nails at approximately 50mm centers (Fig. 4). Trim as required, should you wish.
- Page 15 Half Height Solid Wall Panel 2m 2m Solid Wall Panel Pressure Treated 1859.5 70x35x1860 - x2 Pressure Treated 1860 15x121x875 - x14 Pressure Treated 19x19x877 - x8 Pressure Treated 70x35x780 - x3 Pressure Treated 19x19x741 - x8 Pressure Treated Page 14...
- Page 16 Half Height Solid Wall Panel 2m 3m Solid Wall Panel Pressure Treated 2860 70x35x2860 - x2 Pressure Treated 2860 15x121x905 - x21 Pressure Treated 19x19x905 - x12 Pressure Treated 19x19x741 - x12 Pressure Treated 70x35x780 - x8 Pressure Treated Page 15...
- Page 17 Half Height Glass Wall Panel 2m 2m Glass Wall Panel Pressure Treated 1859.5 877.5 70x35x1860 - x2 Pressure Treated 1860 19x19x877 - x8 Pressure Treated Glass 875x790 - x1 19x19x741 - x8 Pressure Treated 70x35x780 - x3 Pressure Treated Page 16...
- Page 18 Half Height Glass Wall Panel 3m 3m Glass Wall Panel 2860 70x35x2860 - x2 Pressure Treated 2860 Glass 915x790 - x3 19x19x905 - x12 Pressure Treated 70x35x780 - x4 Pressure Treated 19x19x741 - x12 Pressure Treated Page 17...
- Page 19 Slatted Wall Panel 3m and 2m 3m Slatted Panel Pressure Treated 2860 2m Slatted Panel Pressure Treated 1860 Page 19...
- Page 20 Utopia Garden Shelter - Additional Panel Assembly Full Height Wall Panel Assembly **Quantity of components will vary, depending on your purchase • 3m Solid Wall Panel • 2m Solid Wall Panel • 70mm Screws • Position the solid wall panels between Posts as shown in the diagram bellow. •...
- Page 21 Utopia Garden Shelter - Additional Panel Assembly Half Height Wall Panel Assembly **Quantity of components will vary, depending on your purchase • 3m Solid Wall Panel • 2m Glass Wall Panel • 3m Glass Wall Panel • 70mm Screws • 2m Solid Wall Panel •...
- Page 22 Utopia Garden Shelter 3x4m - Additional Panel Assembly Full Height Wall Panel Assembly **Quantity of components will vary, depending on your purchase PART NUMBER 3m Slatted Panel Varies 2m Slatted Panel Varies Varies 70mm screws 20mm screws Varies U metal Bracket 70x38x1mm Varies •...
