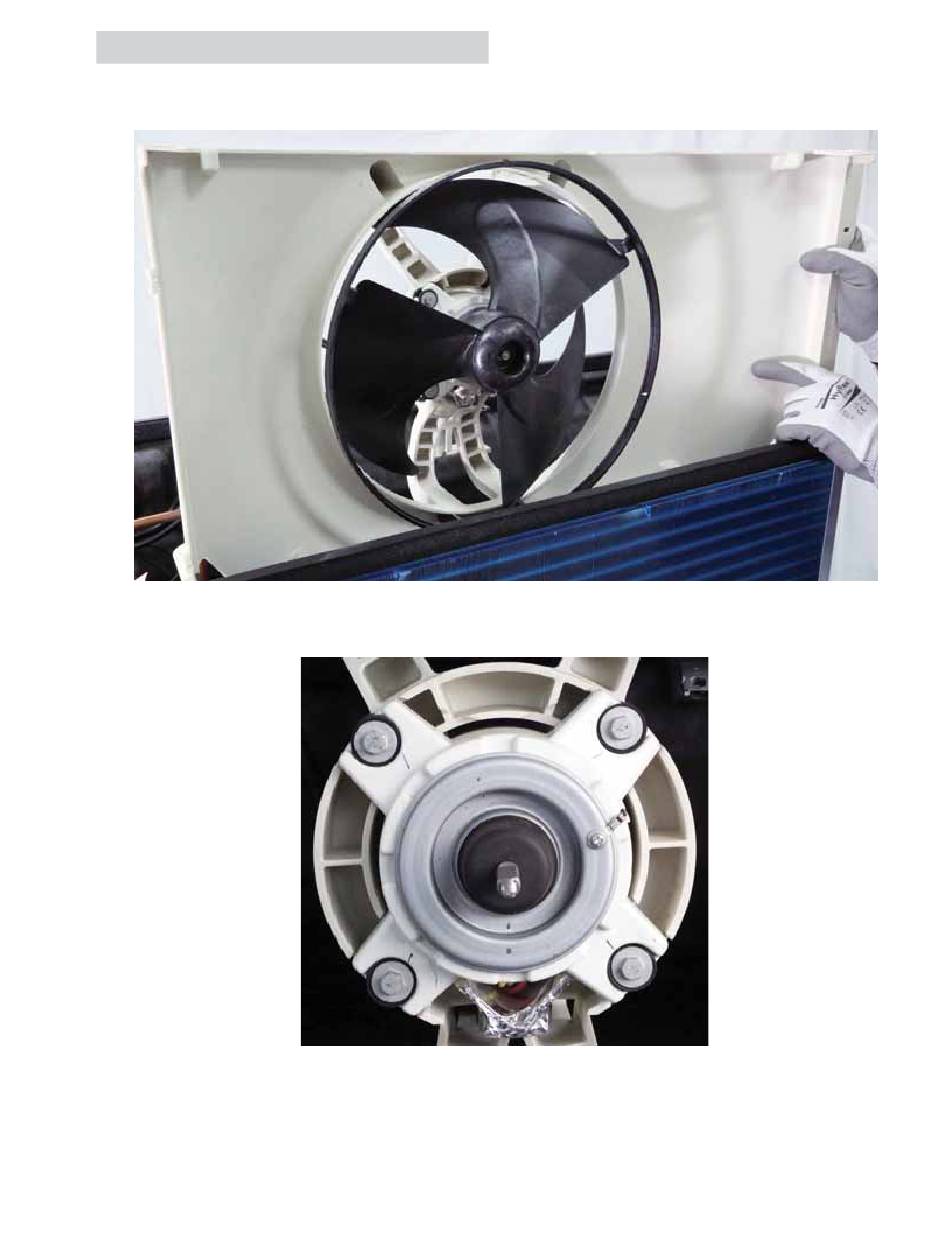

Outdoor Fan Motor
The outdoor fan motor turns a slinger fan blade, which is attached to the motor shaft with a 3/8 in. regular
thread nut.
The motor is secured to the outdoor shroud with four 5/16 in. hex head shoulder bolts.
NOTE: If the wire clip found below the motor
breaks, secure the wire to the support with a
wire tie.
– 39 –
