Indoor Fan Bearing

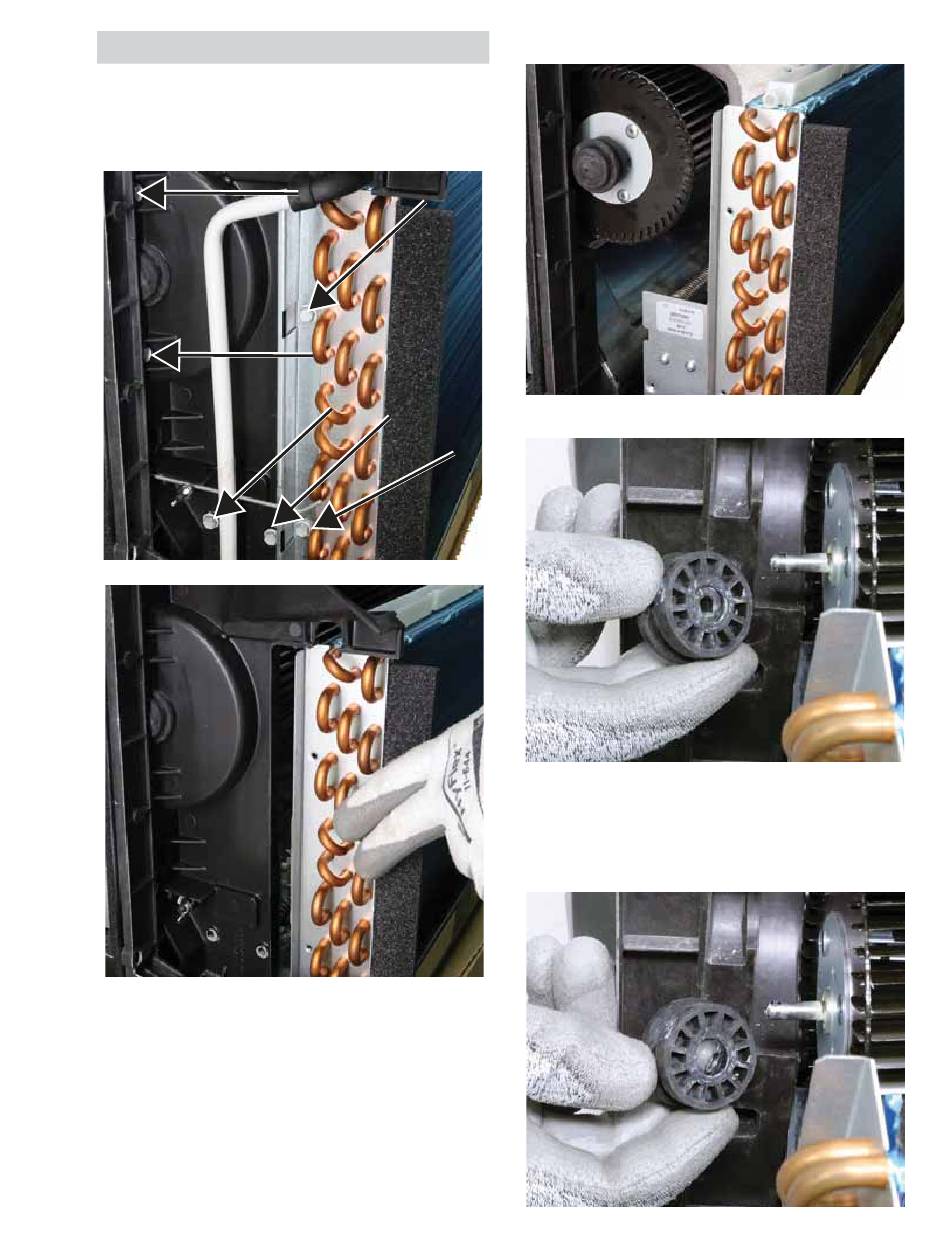

Remove six screws to remove the end cap to access

the bearing assembly. Two screws are used to

secure the bracket attached to the indoor coil and

end cap.

COMPONENTS – Indoor Fan Bearing

Proper Bearing Placement

NOTE: When reinstalling the bearing, ensure the

shaft goes directly into the bearing assembly. The

above image shows proper placement of the

bearing. Failure to install properly will result in a

noise complaint.
