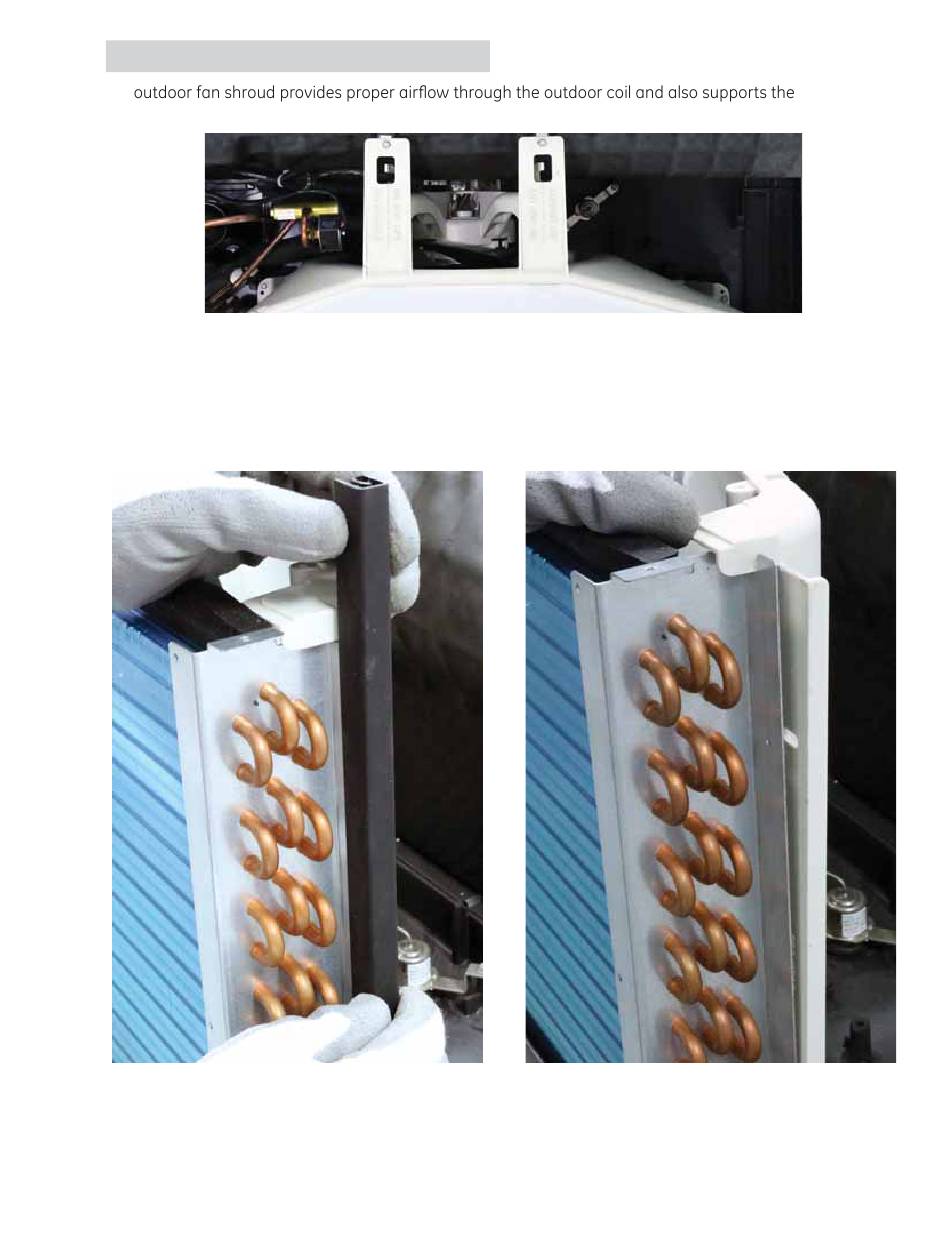

Outdoor Fan Motor Shroud
The
motor.
The outdoor fan shroud and motor assembly are attached to the base pan and outdoor coil assembly with
twelve screws and a "sleeve" that slides over the shroud and outdoor coil assembly.
NOTE: An extension will make accessing the lower screws easier.
Slide the "sleeve" up to separate the shroud and outdoor coil assembly.
– 37 –
outdoor fan
