Outdoor Fan Motor Shroud

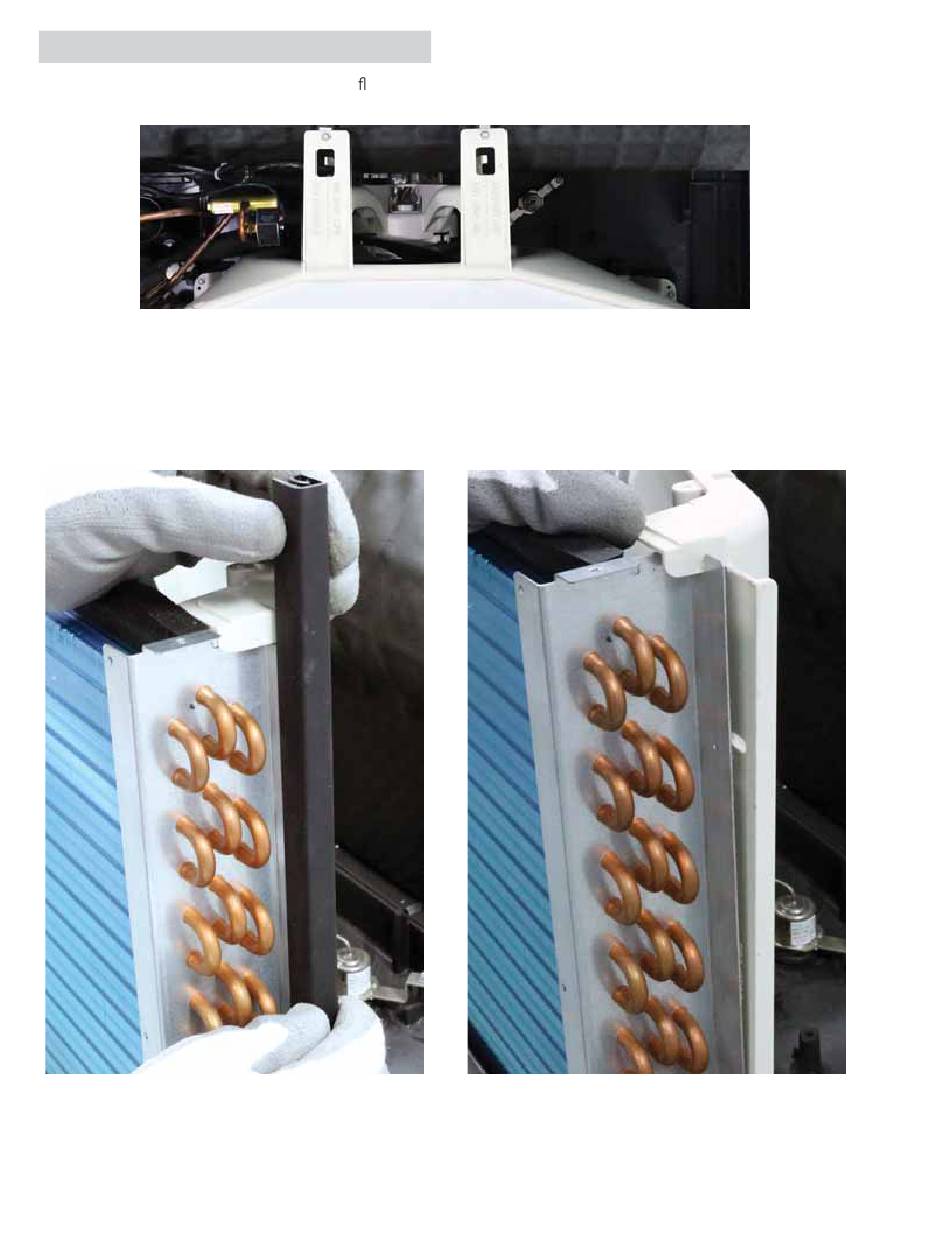

The outdoor fan shroud provides proper air ow through the outdoor coil and also supports the outdoor fan
motor.
The outdoor fan shroud and motor assembly are attached to the base pan and outdoor coil assembly with
twelve screws and a "sleeve" that slides over the shroud and outdoor coil assembly.
NOTE: An extension will make accessing the lower screws easier.
Slide the "sleeve" up to separate the shroud and outdoor coil assembly.
