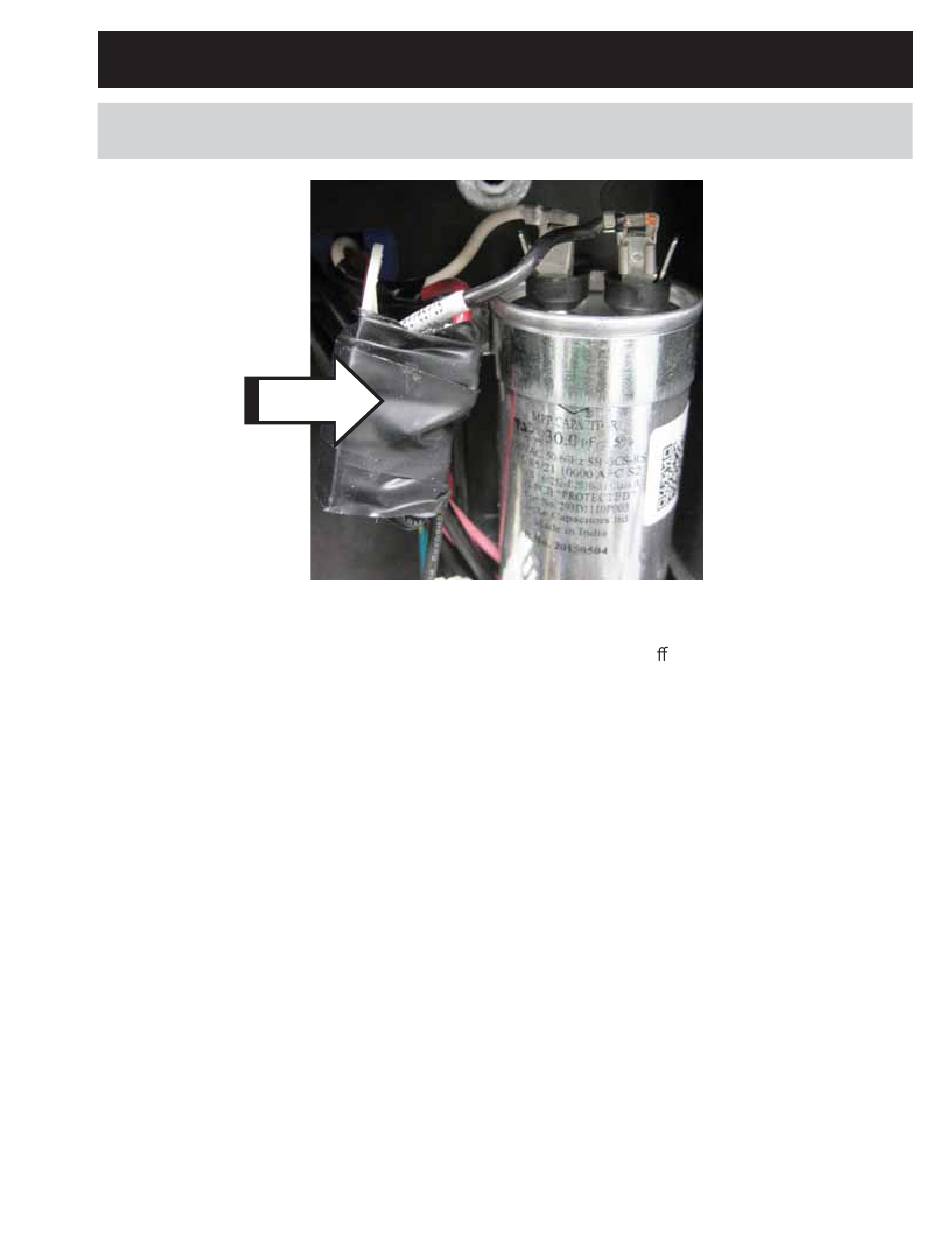

Some early production Zonelines utilized a thermal cut-out that looks like the image shown. This
wiring diagram depicts how this cut out is wired into the circuit. NOTE: If this cut out opens, the
compressor will only have the run winding energized and will shut o on the overload protector.
Be sure to check this cut out before replacing the compressor.
Wiring Diagrams
Early Production Wiring Diagram
