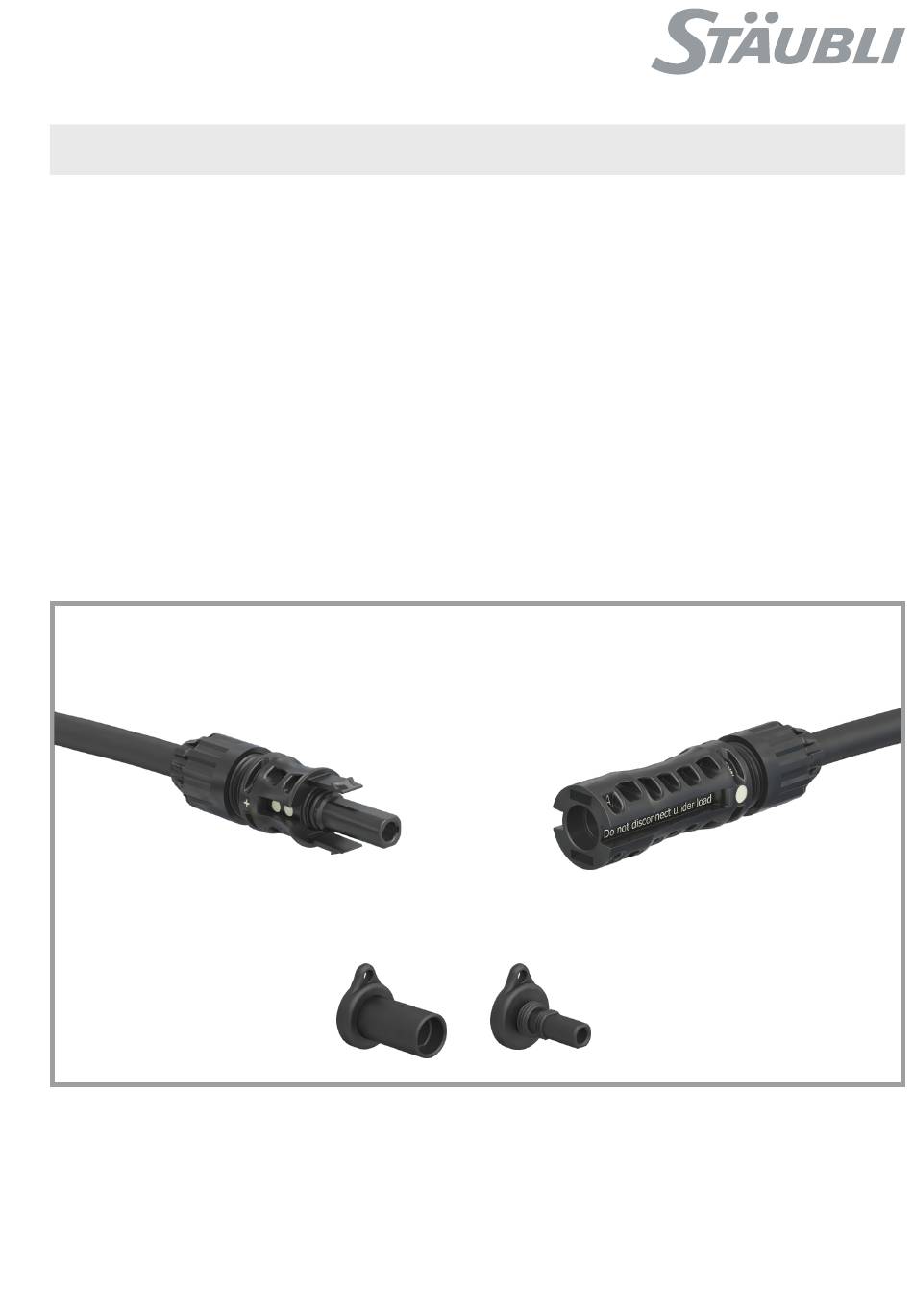

MA273 (de_en)
Montageanleitung
PV-Kupplungsbuchse PV-KBT4-EVO 2-UR
PV-Kupplungsstecker PV-KST4-EVO 2-UR
MC4-Evo 2
Inhalt
Einleitung �������������������������������������������������������������������������������������1
Sicherheitshinweise ���������������������������������������������������������������������2
Erforderliches Werkzeug ��������������������������������������������������������������3
Vorbereitung der Leitung ��������������������������������������������������������������4
Leitfaden zur Konfiguration der Steckverbinder ����������������������������5
Crimpen ��������������������������������������������������������������������������������������6
Montageprüfung ��������������������������������������������������������������������������7
Stecken und Trennen �������������������������������������������������������������������7
Leitungsführung ���������������������������������������������������������������������������8
Technische Daten ������������������������������������������������������������������������9
Notizen ������������������������������������������������������������������������������10 - 12
Kupplungsbuchse
Female coupler
PV-KBT4-EVO 2/...

Einleitung

MC4-Evo 2 Steckverbindungen garantieren hohe Schutzklassen
IP65 und IP68� Die Verriegelung der Steckverbinder nach NEC
2020 durch den Locking type-Verschluss garantiert höchste
Anschlusssicherheit und ist nur mit dem Werkzeug PV-MS-PLS/2
entriegelbar�
MA273 (de_en)
Assembly instructions
PV female coupler PV-KBT4-EVO 2-UR
PV male coupler PV-KST4-EVO 2-UR
MC4-Evo 2
Content
Introduction ���������������������������������������������������������������������������������1
Safety Instructions �����������������������������������������������������������������������2
Tools required ������������������������������������������������������������������������������3
Cable preparation ������������������������������������������������������������������������4
Guideline for configuring the connectors ��������������������������������������5
Crimping ��������������������������������������������������������������������������������������6
Assembly check ��������������������������������������������������������������������������7
Plugging and unplugging �������������������������������������������������������������7
Cable routing �������������������������������������������������������������������������������8
Technical Data �����������������������������������������������������������������������������9
Notes ��������������������������������������������������������������������������������10 - 12
Verschlusskappen/Sealing caps
PV-BVK4
PV-SVK4
32.0716
32.0717

Introduction

MC4-Evo 2 plug connectors guarantee high protection classes
of IP65 and IP68� The locking system of the plug connectors in
accordance with NEC 2020 guarantees optimum connection
security� Unlocking can be effected only with the tool
PV-MS-PLS/2�

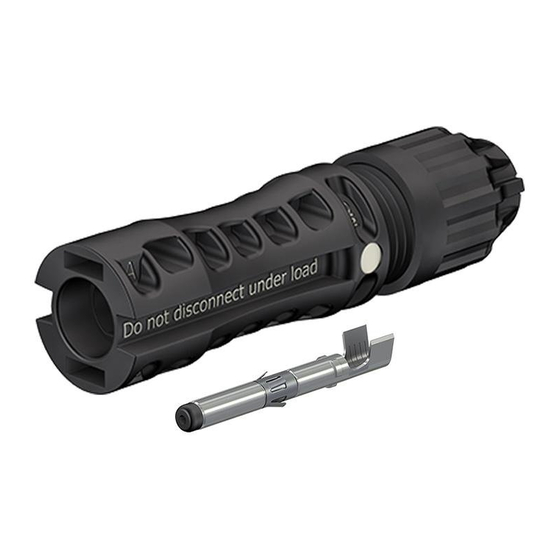

Kupplungsstecker
Male coupler
PV-KST4-EVO 2/...
