Maintenance
03
03
02
01
01 Support clip 1
02 Support clip 2
03 Support clip 3
WARNING
To prevent heat leaks, make sure you properly reinsert the glass sheets.
44 English
NV75A6579RS_DG68-01361E-00_EN.indd 44 NV75A6579RS_DG68-01361E-00_EN.indd 44

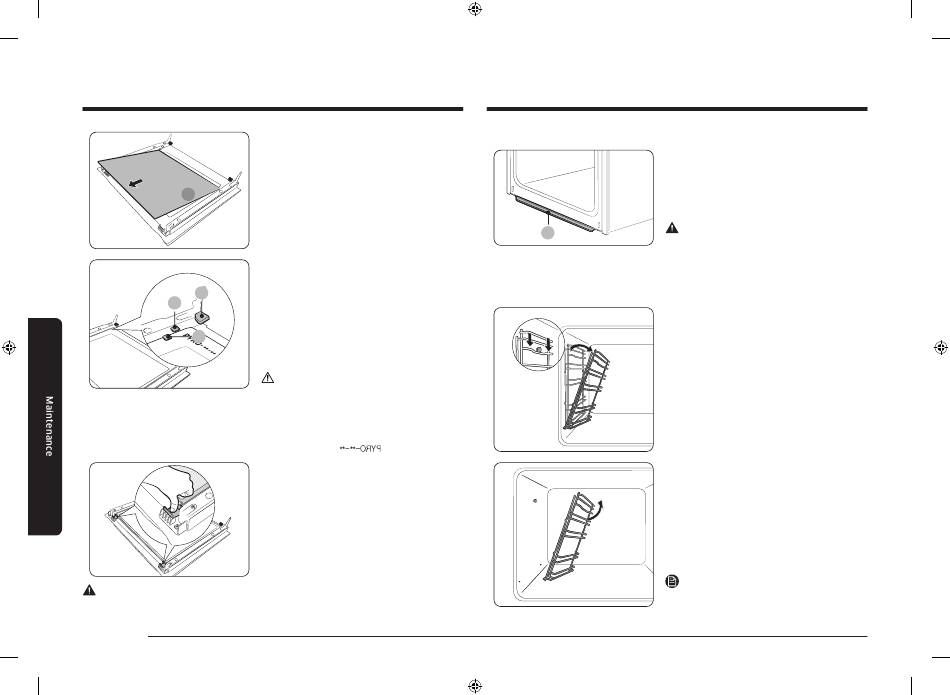

5. Remove the third sheet from the door in
the arrow direction.
6. Clean the glass with soapy water and a
clean cloth.
7. When done, reinsert the sheets as
follows:
• See the picture and locate the hinges.
Insert sheet 3 below support clip 1,
sheet 2 between support clip 1 and 2,
and sheet 1 into support clip 3 in this
order. Make sure the printed side of
sheets is inserted inward.
CAUTION
To identify the correct side of the sheet,
locate the "PYRO" mark on the corner of
every sheet.
Correct direction: PYRO- ** - **
Wrong direction:
8. After inserting the sheet 2, press down
the glass clips and check if they secure
the glass sheet properly.
9. Follow steps 1-2 above in the reverse
order to reinstall the coverings.
Water collector
The water collector collects not only excess
moisture from cooking but also food residue.
The water collector cannot be detached.
Wipe water on the water collector when the
oven cools down after a cooking process.
01
If you encounter a water leak from the
01 Water collector water collector, contact us at a local
Samsung service centre.
Side runners (applicable models only)
1. Press the top line of the left side runner,
2. Pull and remove the bottom line of the
3. Remove the right side runner in the
4. Clean both side runners.
5. When done, follow steps 1 to 2 above
The oven operates without the side runners
and racks in position.
WARNING
and lower by approximately 45°.
left side runner.
same way.
in the reverse order to reinsert the side
runners.
NOTE
