Advantech ADAM-6251 Startup Manual

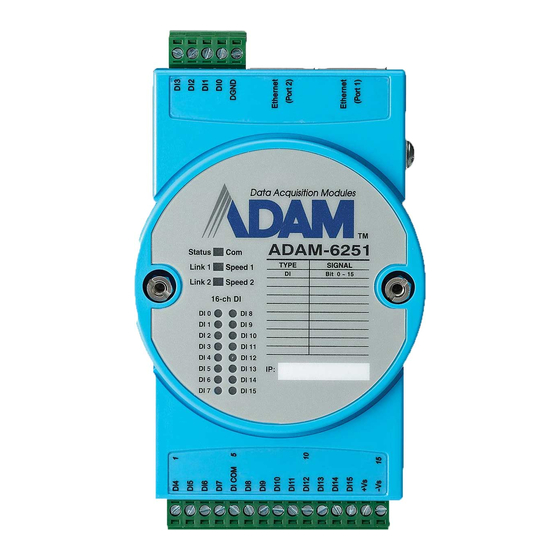

ADAM-6251
16-ch Digital Input Modbus TCP Module
Overview
Thank you for purchasing this ADAM-6200 series
module.This is a quick guide to help you deploy the
ADAM-6200 series module in your application field. It
will include power and application wiring. If you need a
more complicated or specific installation, you could try
to contact ADVANTECH for advanced technical support
or suggestions.
Input Power Requirements
The ADAM-6200 system is designed for a standard
industrial unregulated 24 V
applications, it can also accept +10 to +30 V
input, 200mV peak to peak of power ripple, and the
immediate ripple voltage should be maintained between
+10 and +30 V .
DC
Notes
For more information on this and other Advantech
products, please visit our websites at:
http://www.advantech.com
http://www.advantech.com/eAutomation
For technical support and service:
http://www.advantech.com.tw/eservice
This startup manual is for the ADAM-6251
Part No: 2003625100
1 Startup Manual
power supply. For further
DC
of power
DC
1st Edition
February 2013
Switch Settings
It mainly presents the switch configuration for Dry Contact
and Wet Contact wiring in Digital Input interface.
Switch SW1
Position 1 2 3
DI Channel Ch3 Ch2 Ch1 Ch0 Ch7 Ch6 Ch5 Ch4
Switch SW3
Position 1 2 3
DI Channel
Ch11 Ch10 Ch9 Ch8 Ch15 Ch14 Ch13 Ch12
ON
Dry Contact (Default)
OFF
Application Wiring
Isolated Digital Input
Dry Contact
Wet Contact
SW2
4 1 2 3 4
SW4
4 1 2 3 4
Wet Contact
