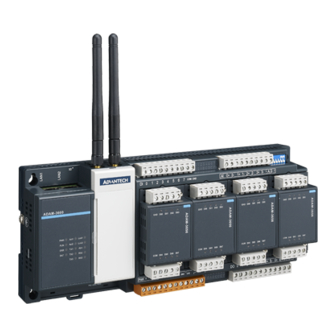

Advantech ADAM-3600-A1F User Manual

Intelligent remote i/o module
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
ADAM-3600-A1F
Intelligent Remote I/O Module

Advertisement

Table of Contents
loading

Related Manuals for Advantech ADAM-3600-A1F

Summary of Contents for Advantech ADAM-3600-A1F

  • Page 1 User Manual ADAM-3600-A1F Intelligent Remote I/O Module...
  • Page 2 No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. How- ever, Advantech Co., Ltd.
  • Page 3 Technical Support and Assistance Visit the Advantech web site at www.advantech.com/support where you can find the latest information about the product. Contact your distributor, sales representative, or Advantech's customer service center for technical support if you need additional assistance.
  • Page 4 The sound pressure level at the operator's position according to IEC 704-1:1982 is no more than 70 dB (A). DISCLAIMER: This set of instructions is given according to IEC 704-1. Advantech disclaims all responsibility for the accuracy of any statements contained herein.

  • Page 5: Table Of Contents

    Figure 3.6 Ethernet Daisy Chain Wiring ........14 3.3.3 I/O Units ..................15 Chapter System Configuration .......17 Connection ....................18 Configure the ADAM-3600-A1F with the Web Interface ......18 4.2.1 System Requirements..............18 4.2.2 List of ADAM-3600-A1F Default Ethernet Ports......18 ADAM-3600-A1F User Manual...
  • Page 6 Using a Browser to Configure the Module ......... 20 Configure ADAM-3600-A1F with ADAM.NET Utility ....... 37 4.3.1 Operation Framework ..............37 Configuring ADAM-3600-A1F with ADAM.NET Utility (software) ... 41 Appendix A I/O Modbus Mapping Table ....45 Modbus Function Code Introduction ............46 ADAM-3600-A1F Default Modbus Mapping Table........

  • Page 7: Chapter 1 Product Overview

    Chapter Product Overview...

  • Page 8: Introduction

    Integrated with HTML5, JavaScript, and RESTful web service which satisfy the needs of IT technology, and also open a new market for ADAM-3600-A1F. This remote I/O module will not only sell to automation SI, but also the SI who has high level programming skill and network integration abilities.

  • Page 9: Mechanical Design And Dimensions

    Mechanical Design and Dimensions 1.4.1 ADAM-3600-A1F ADAM-3600-A1F User Manual...

  • Page 10: Led Definition

    ON: Ethernet speed is at 100 Mbps ON/OFF (Speed 2) OFF: Ethernet speed is at 10 Mbps ON: Logic 1 Digital Input Green ON/OFF OFF: Logic 0 ON: Logic 1 Relay Output Green ON/OFF OFF: Logic 0 ADAM-3600-A1F User Manual...

  • Page 11: Certification And Safety Standards

    – EN 61000-3-3 – EN 55024 – EN 61000-6-2 – IEC 61000-4-2 – IEC 61000-4-3 – IEC 61000-4-4 – IEC 61000-4-5 – IEC 61000-4-6 – IEC 61000-4-8 – IEC 61000-4-11 – RoHS  China RoHS  WEEE ADAM-3600-A1F User Manual...
  • Page 12 ADAM-3600-A1F User Manual...

  • Page 13: Chapter 2 Product Specifications

    Chapter Product Specifications...

  • Page 14: General Specification

    Supports RESTful Web API in JSON format  Supports Web Server in HTML5 with JavaScript & CSS3 Reset Button Users can push the Reset button on the left panel of the ADAM-3600-A1F to reboot the system directly. ADAM-3600-A1F User Manual...

  • Page 15: Digital Input

    Logic 1: 10 ~ 30 V 2500 V Isolation Protection Max. Input Frequency 3 kHz Max. Counter Frequency 3 kHz 2.2.2 Digital Input Wiring Figure 2.1 ADAM-3600-A1F Digital Input Wiring Relay Output 2.3.1 Relay Output Specifications Channel 8 (Form A) Contact Rating 250 V  @ 5A (resistive load) 30 V...

  • Page 16: Relay Output Wiring

    2.3.2 Relay Output Wiring Figure 2.2 Relay Output Wiring Pin Assignment Channel Symbol Channel Number 0 ADAM-3600-A1F User Manual...

  • Page 17: Chapter 3 Hardware Installation

    Chapter Hardware Installation...

  • Page 18: Interface Introduction

    Interface Introduction Mounting ADAM-3600-A1F is designed as a compact unit and is able to be installed in the field site using the following methods. 3.2.1 DIN-Rail Mounting The ADAM-3600-A1F can also be fixed to the cabinet by using mounting rails. You need to assemble the DIN rail adapter to the module with flathead screw driver as below.

  • Page 19: Wall Mounted Installation

    3.2.2 Wall Mounted Installation Figure 3.2 Wall-Mounted Installation 3.2.3 Expansion Module Installation Figure 3.3 Expansion Module Installation Figure 3.4 Expansion I/O Connector Installation ADAM-3600-A1F User Manual...

  • Page 20: Wiring & Connections

    3.3.2 Ethernet Daisy Chain Wiring The ADAM-3600-A1F module has built in Ethernet switches to allow daisy chain con- nections in an Ethernet network, making it easier to deploy, and helping improve scalability. The two Ethernet ports are fully compliant with IEEE 802.3u 10/100Mbpst through standard RJ-45 connectors.

  • Page 21: I/O Units

    Always use a continuous length of wire. Do not combine wires. Use the shortest possible wire length. Use wire trays for routing where possible. Avoid running wires near high-energy wiring. Avoid running input wiring in close proximity to output wiring. Avoid creating sharp bends in the wires. ADAM-3600-A1F User Manual...
  • Page 22 ADAM-3600-A1F User Manual...

  • Page 23: Chapter 4 System Configuration

    Chapter System Configuration...

  • Page 24: Connection

    Connection Plug DC power source in Power +, Power - pin of ADAM-3600-A1F module and turn the power on. Connect your computer to Ethernet port of ADAM-3600-A1F module with RJ-45 cross-over Ethernet cable. Configure the ADAM-3600-A1F with the Web Interface 4.2.1...

  • Page 25: Factory Default Settings

     HTTP Port: 80 4.2.4 Module Authorization Account Default Password Access Ability Root 00000000 All the privileges Admin 00000000 All the privileges except access control configuration User 00000000 View module status only, not allow to do configuration ADAM-3600-A1F User Manual...

  • Page 26: Using A Browser To Configure The Module

     Default URL: http://10.0.0.1/config  Configuration Steps Login Web Page Connect the ADAM-3600-A1F to your local Ethernet network, then open the browser of your computer or mobile device. Enter IP address of module with "/ config", for example, the default URL: http://10.0.0.1/config.
  • Page 27 Location and Description of the module. Users can view the Network information of the module. Users can see which expansion modules are installed in the ADAM-3600-A1F. ADAM-3600- A1F is always at Slot 0, then Slot 1~4 correspond to 4 expansion module slots in sequence.
  • Page 28 Customized Name, Universally Unique Identifier (UUID) and Description. Users can edit the location information for the module. While the edition of Module and Location Information had been completed, click the button Submit to restore the new infor- mation. ADAM-3600-A1F User Manual...
  • Page 29 For DIP Switch IP mode, users can set the IP address by setting the 6-bit DIP switch on the right-up corner of ADAM-3600-A1F. For example, if the default IP is 192.136.0.38, and after you adjust the DIP Switch IP shown in the figure below, the IP address will become 192.136.0.8 .
  • Page 30 Address means apply the Modbus by the default setting. Auto-Allocate Address means the Modbus address will be allocated automatically. Different from default Modbus address, it will fill in the unused address. Basically, there're two kinds of Modbus address section (0X and 4X) for you to configure each function item. ADAM-3600-A1F User Manual...
  • Page 31 You can set the Scan interval in this page , enabled in “Network App” tab, you can enable the IO FSV triggered by communica- tion WDT Firmware Update You can upgrade the firmware and the Web page here ADAM-3600-A1F User Manual...
  • Page 32 You can change the passwords of each account here. I/O Status Choose the I/O Group tab, then the user will see the option “(Slot0) ADAM-3600-A1F “. Click it, the onboard I/O statuses are shown in this page. For the output status, you can also change the I/O status here.
  • Page 33 Digital Filter, and also the working mode of each channel. In the end, there is an overview table for the configuration summary of each channel. Trend The status trend of I/O will be shown here. ADAM-3600-A1F User Manual...
  • Page 34 Relay setting The user can also check and change the local Relay output statuses in the Relay-related pages that included Status, Configuration and Trend. ADAM-3600-A1F User Manual...
  • Page 35 Advanced Functions There are 3 advanced functions which contained Access Control, Data Logger and Diagnosti- cian Access Control The status trend of I/O will be shown here. Data Logger Diagnostics ADAM-3600-A1F User Manual...
  • Page 36 Access Control Enable one of the rows and enter the IP address or MAC address which allowed to access- ing the ADAM-3600-A1F. Data Logger Go to Data Logger function, select the item “Data Log” and choose the tab “Local Log Con- figuration”, User can complete the setting for Data Logger function.
  • Page 37 User can configure which kind of ID and the timestamp format will be logged here. Query Filter This filter is for setting the criteria to query the logged data. User can select the filter mode and click “Query” button to query the logged data. ADAM-3600-A1F User Manual...
  • Page 38 Total Amount, that meant the user want to query 1000 records of data with different timestamps. If each record of data contained 6 points of I/O data, then the total number of I/O points would be 6000. That exceeded the limitation. The user would see the notification message shown below. ADAM-3600-A1F User Manual...
  • Page 39 The digital input is in general DI mode The digital input is in Counter mode The digital input is in Frequency mode The digital output is in general DO mode The digital output is in Pulse output mode ADAM-3600-A1F User Manual...
  • Page 40 USB Thumb or SD card as the storage device. In the field of Data Format, you can see the data will be stored in CSV format. ADAM-3600-A1F User Manual...
  • Page 41 Index and End Index, then they can query the files in the storage device that the indexes in this period. If users selected File Format Filter, then they can query the CSV files in the storage device ADAM-3600-A1F User Manual...
  • Page 42 0, and the logged file would be stored in the sub-folder. The file name would be the last two bytes of the MAC address and the index started from 0. The indication of the CSV file format is shown below. ADAM-3600-A1F User Manual...

  • Page 43: Configure Adam-3600-A1F With Adam.net Utility

    Configure ADAM-3600-A1F with ADAM.NET Utility Install ADAM.NET Utility in your computer. (After successfully installation, there will be a shortcut generated on the screen) Double click the shortcut icon, and then you will see the main operation window. Click Search Module icon in Toolbar. You will see all online modules in the left Module Tree screen and an unconfigured new module, whose default password is 00000000, will appear on the Others section as below.
  • Page 44  Add Devices to Group It's used to add ADAM-3600-A1F modules to your favorite group. After activat- ing search function, all online modules will show on Module Tree Screen area. Now you can enable this function to select the device you want to add in the Module Tree Screen.
  • Page 45 Check this option to allow calibration function enabled on AI/O module. d. Help  Check Up-to-Date on the Web It will automatically connect to support and download page of Advantech web- site when it enabled. You can find and download the latest version of ADAM- 3600-A1F utility there. ...
  • Page 46 This will make you easier to find your interested modules. Right click on the ADAM-3600-A1F item under the Favorite Group item and you can select Add New Group to create a new group. After you create your own group, right click on your group and Add New Device into your group.

  • Page 47: Configuring Adam-3600-A1F With Adam.net Utility (Software)

    10/100 Mbps or higher Ethernet Card Configure the computer’s IP address as the same domain as ADAM-3600-A1F module. For the new ADAM-3600-A1F which default IP address is 10.0.0.1, the IP address of computer can be configured as 10.0.0.99 for example as follow- ing.
  • Page 48 In the "Device Info" tab, the detail information of this module will been shown The "QR" tab will generate the QR code of the web configuration web page for mobile device to access the module. User can also click the QR code to open the browser for further configuration. ADAM-3600-A1F User Manual...
  • Page 49 Note! If the ADAM-3600-A1F is not in the same domain as the computer, after power up and searching for it in the utility, the device name will been shown in the "Others" tree . Users have to change the device network setting to the same domain with the computer in the page as below.
  • Page 50 ADAM-3600-A1F User Manual...

  • Page 51: Appendix A I/O Modbus Mapping Table

    Appendix I/O Modbus Mapping Table...

  • Page 52: Modbus Function Code Introduction

    Write multiple data to force coil ON/OFF Preset Multiple Registers Write multiple data in 16-bit integer format ADAM-3600-A1F Default Modbus Mapping Table The address value for each item is fixed regardless of the type or existence of exten- sion I/O slots.
  • Page 53 0~15 41529~41560 0~15 41601~41632 0~15 41633~41664 0~15 Set Absolute 41665~41696 0~15 Pulse (2 addr / ch) 41697~41728 0~15 41729~41760 0~15 41801~41832 0~15 41833~41864 0~15 Set Incremental 41865~41896 0~15 Pulse (2 addr / ch) 41897~41928 0~15 41929~41960 0~15 ADAM-3600-A1F User Manual...

  • Page 54: Auto-Allocated Modbus Address

    DO Value Level Width (1 addr / ch) (2 addr / ch) 01009~01016 41017~41032 41301 DO Value 41302 41401~41416 Pulse Output High Level Width (2 addr / ch) 41417~41432 41601~41616 Set Absolute Pulse (2 addr / ch) 41617~41632 ADAM-3600-A1F User Manual...
  • Page 55 41801~41816 Set Incremental Pulse (2 addr / ch) 41817~41832 ADAM-3600-A1F User Manual...
  • Page 56 ADAM-3600-A1F User Manual...

  • Page 57: Adam-3600-A1F

    Appendix REST for ADAM-3600-...

  • Page 58: Introduction

    Web service by Amazon, Yahoo. The Web service of is developed based on HTML5 language, if user need to integrate this into other Web services, the following information/command list should be referred for implementation. ADAM-3600-A1F User Manual...

  • Page 59: Rest Resources For Adam-3600-A1F

    REST Resources for ADAM-3600-A1F B.2.1 Digital Input B.2.1.1 /di_value/slot_index/ch_num Description Retrieves information about the digital input value resource on specific slot. http://10.0.0.1/di_value/slot_index URL Structure http://10.0.0.1/di_value/slot_index/ch_num GET:Returns the representation of all of digital input value resource. HTTP Method PUT:Replace all of digital input value resource PATCH:Apply partial modifications to digital input value resource.
  • Page 60 "Cnting":0, "ClrCnt":0, "OvLch": 0 "Ch":2, "Md":1, "Stat":0, "Val":3378, "Cnting":1, "ClrCnt":0, "OvLch": 0 "Ch":3, "Md":3, "Stat":0, "Val":1, "Cnting":0, "ClrCnt":0, "OvLch": 0 Request : GET /di_value/slot_0/ch_2 Content-type: application/json Response: 200 OK "Ch":2, "Md":0, "Stat":1, "Val":1, "Cnting":0, "ClrCnt":0, "OvLch": 0 ADAM-3600-A1F User Manual...
  • Page 61 "OvLch": 0 "Ch":2, "Md":1, "Stat":0, "Val":3378, "Cnting":0, "ClrCnt":1, "OvLch": 0 "Ch":3, "Md":3, "Stat":0, "Val":0, "Cnting":0, "ClrCnt":0, "OvLch": 0 Response: 200 OK Request: PUT /di_value/slot_0/ch_2 Content-type: application/json "Ch":2, "Md":1, "Stat":0, "Val":3378, "Cnting":0, "ClrCnt":1, "OvLch": 0 Response: 200 OK ADAM-3600-A1F User Manual...
  • Page 62 "DIVal": [ "Ch":2, "Cnting": 1 PATCH "Ch":3, "OvLch":0 Response: 200 OK Request: PATCH /di_value/slot_0/ch_3 Content-type: application/json "Ch":3, "ClrCnt":1 Response: 200 OK  JSON array name definition: Field Abbreviation Data Type Array of Digital input configurations DIVal Array ADAM-3600-A1F User Manual...
  • Page 63 ClrCnt Number : Clear the counter value counter overflow or latch status Read Get/Clear Counter : overflow/latch occurred. Overflow or Latch Sta- OvLch Number : no overflow or latch Write : clear the overflow or latch status ADAM-3600-A1F User Manual...

  • Page 64: Digital Output

    Retrieves information about the digital output value resource on specific slot. http://10.0.0.1/do_value/slot_index URL Structure http://10.0.0.1/do_value/slot_index/ch_num GET:Returns the representation of all of digital output value resource. HTTP Method PUT:Replace all of digital output value resource PATCH:Apply partial modifications to digital output value resource. ADAM-3600-A1F User Manual...
  • Page 65 "PsCtn":0, "PsStop":0, "PsIV": 0 "Ch":2, "Md":1, "Stat":1, "Val":3378, "PsCtn":0, "PsStop":0, "PsIV": 0 "Ch":3, "Md":3, "Stat":1, "Val":1, "PsCtn":0, "PsStop":0, "PsIV": 0 Request : GET /do_value/slot_0/ch_2 Content-type: application/json Response: 200 OK "Ch":2, "Md":0, "Stat":1, "Val":1, "PsCtn":0, "PsStop":0, "PsIV": 0 ADAM-3600-A1F User Manual...
  • Page 66 "PsIV": 0 "Ch":2, "Md":1, "Stat":1, "Val":3378, "PsCtn":0, "PsStop":0, "PsIV": 0 "Ch":3, "Md":3, "Stat":1, "Val":1, "PsCtn":0, "PsStop":0, "PsIV": 0 Response: 200 OK Request: PUT /do_value/slot_0/ch_2 Content-type: application/json "Ch":2, "Md":2, "Stat":0, "Val":0, "PsCtn":0, "PsStop":0, "PsIV": 0 Response: 200 OK ADAM-3600-A1F User Manual...
  • Page 67 "DOVal": [ "Ch":2, "Md": 2 PATCH "Ch":3, "PsStop":1 Response: 200 OK Request: PATCH /do_value/slot_0/ch_3 Content-type: application/json "Ch":3, "PsCtn":1 Response: 200 OK  JSON array name definition: Field Abbreviation Data Type Array of Digital input DOVal Array configurations ADAM-3600-A1F User Manual...
  • Page 68 Stop the pulse outputting. (Continue is disabled, Absolute and incremental Stop Pulse Output PsStop Number values are reset to zero. DO signal status is set to logic low.) Incremental Pulse Out- PsIV Number Incremental Pulse Output Value put Value ADAM-3600-A1F User Manual...
  • Page 69 ADAM-3600-A1F User Manual...
  • Page 70 No part of this publication may be reproduced in any form or by any means, electronic, photocopying, recording or otherwise, without prior written permis- sion of the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2015...
