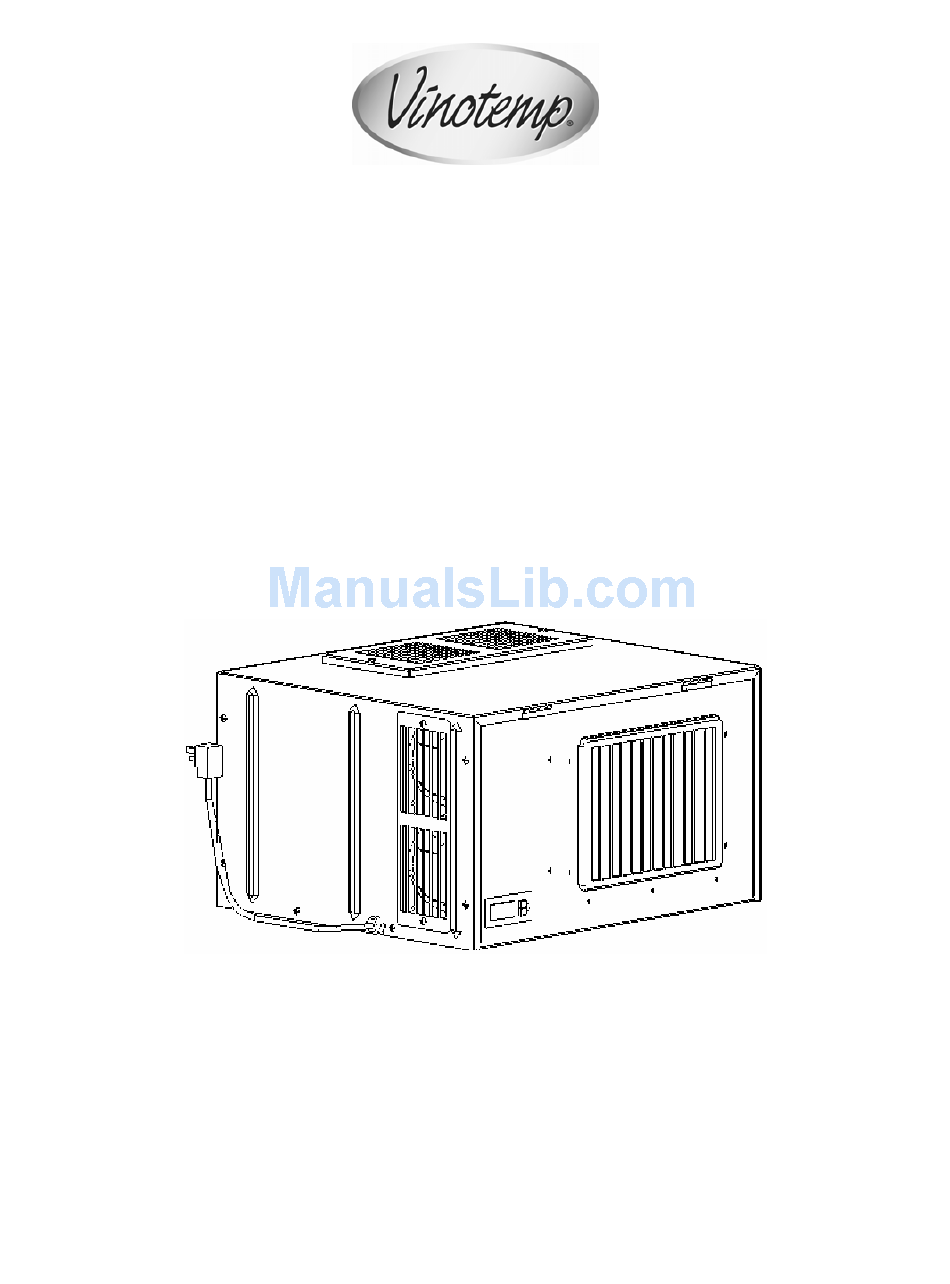

  • Page 1 WINEMATE Cooling Unit Use & Care Manual WM1500 HTD, HTD-TE WM2500 HTD, HTD-TE...

  • Page 2: Important Safety Information

    Important Safety Information • DO NOT PLUG IN UNTIL 24 HOURS AFTER DELIVERY. • DO NOT USE A GROUND FAULT INTERRUPTER (GFI). • A DEDICATED 15 AMPCIRCUIT IS HIGHLY RECOMMENDED. - 1 -...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Feature Description…………………………….……………..3 Installation Instruction………………………………………..5 Temperature & Humidity Control………………………….8 Care Guide……………………………………………………11 Troubleshooting……………………………………………..13 Wiring Diagram……………………………………….………16 Customer Support……………………………………………17 Warranty……………………………………………………….18 Appendix……………………………………………………….20 - 2 -...

  • Page 4: Feature Description

    Feature Description • WM1500HTD, HTD-TE and WM2500HTD, HTD-TE cooling units are designed and used to provide a subtle temperature between 50~65 °F for suitable space at a normal environment. • The refrigerated space will maintain humidity of 50~70% RH even when the environment becomes dry and humid.

  • Page 5: Model Description

    The dimension and capacity are specified as follows: Model Description 1500htd Rear Exhaust 1500htd Top Exhaust 2500htd Rear Exhaust 2500htd Top Exhaust • See the voltage, frequency and amp from the nameplate on the cooling unit. Fig. 1.2 DIMENSIONS Cooling Wine Capacity Capacity...

  • Page 6: Installation Instruction

    Installation Instruction 1. Location • Place the wine cabinet in a properly ventilated location. Otherwise, heat exhausted by the cooling unit will build up and it will not operate properly. • The exhaust area must not be closed space and must be ventilated. 1) Rear Exhaust •...
  • Page 7 Fig. 2.2 MOUNTING OPENINGS Fig. 2.3 TOP EXHAUST GASKET • Cut a rectangular opening with the ¼” clearance inwards to the width and height of the cooling unit, the opening is positioned from the top and center of the cabinet (see Fig. 2.2). - 6 -...
  • Page 8 • If top exhaust, cut a rectangular opening at the top of the cabinet to the length and width of the top exhaust openings (see Fig. 2.2). • Mount the gaskets on the four rear mounting sides. • If top exhaust, place the gaskets along the top openings at the top of the cooling unit.

  • Page 9: Temperature & Humidity Control

    Temperature & Humidity Control 1. Temperature Setting • Set the temperature at 55~60 • On initial start-up, the time required to reach the desired temperature will vary, depending on the quantity of bottles, temperature setting and surrounding temperature. • Allow 24 hours to stabilize the temperature for each new temperature setting operation 2.
  • Page 10 1.2 Front Panel Commands 2) Alarm Signals 2.1 Code Description 2.2 Alarm Recovery Probe alarms P1”, start a few seconds after the fault in the related probe; they automatically stop a few seconds after the probe restarts normal operation. Check connections before replacing the probe. Temperature alarms “HA”, “LA” automatically stops as soon as the temperature returns to normal value.
  • Page 11 2. Push and immediately release the SET key or wait for 5 seconds to display the probe value again. 3.2 How to change the set-point 1. Push the SET key for more than 3 seconds to change the Set point value; 2.

  • Page 12: Care Guide

    Care Guide I. Component Identification Fig. 4.1 Exploded View - 11 -...
  • Page 13 II. Condenser Coil Cleaning • The condenser coil is on the rear side of the wine cooling unit. • Clean the condenser coil regularly. Coil may need to be cleaned at least every 6 months. • Unplug the unit or disconnect power. •...

  • Page 14: Troubleshooting

    This Troubleshooting Chart is not prepared to replace the training required for a professional refrigeration service person, not is it comprehensive Complaint Possible Causes 1. Unit not running a. Power cord unplugged b. No power to unit c. Defrost light blinking d.
  • Page 15 Iced evaporator Low voltage k. Operating 60 Hz unit at 50Hz Sealed system problem m. Undercharge or overcharge 5. Unit running too long or continually a. Improper cabinet seals b. Exhaust too close to wall or ceiling c. Cabinet too large d.
  • Page 16 c. Failed thermistor d. Failed components e. Improper condenser airflow Dirty condenser g. Overcharge of refrigerant h. Discharge or suction pressure too high 8. Fan motor running but compressor not running a. Incorrect power supply b. Incorrect or loose wirings c.

  • Page 17: Wiring Diagram

    Wiring Diagram Fig. 6.1 WIRING DIAGRAM - 16 -...

  • Page 18: Customer Support

    Customer Support If you still have problems, please contact us at: Vinotemp International 17631 South Susana Road Rancho Dominguez, CA 90221 Tel: (310) 886-3332 Fax: (310) 886-3310 Email: info@vinotemp.com - 17 -...

  • Page 19: Warranty

    BTU/H. While every effort has been made to provide accurate guidelines, VINOTEMP can not warranty its units to cool a particular enclosure. In case of failure, VINOTEMP cooling units must be repaired by the factory or its authorized agent. Repairs or modifications made by anyone else will void the warranty.
  • Page 20 VINOTEMP will, at its discretion, repair or replace the unit and return it free of charge to the original retail customer. If the unit is found to be in good working order, or beyond the initial twelve month period, it will be returned freight collect.

  • Page 21: Appendix

    Appendix I. Enclosure This is only a guide and should be considered as minimum requirements. All interior walls and floors should have a vapor barrier and a minimum of R11 insulation. All exterior walls and ceiling should have a vapor barrier and a minimum of R19 insulation.
