Vinotemp WINE-MATE WM-1500LOWP Installation, Use & Care Manual

Vinotemp WINE-MATE WM-1500LOWP Installation, Use & Care Manual

Self-contained wine cooling system

Advertisement

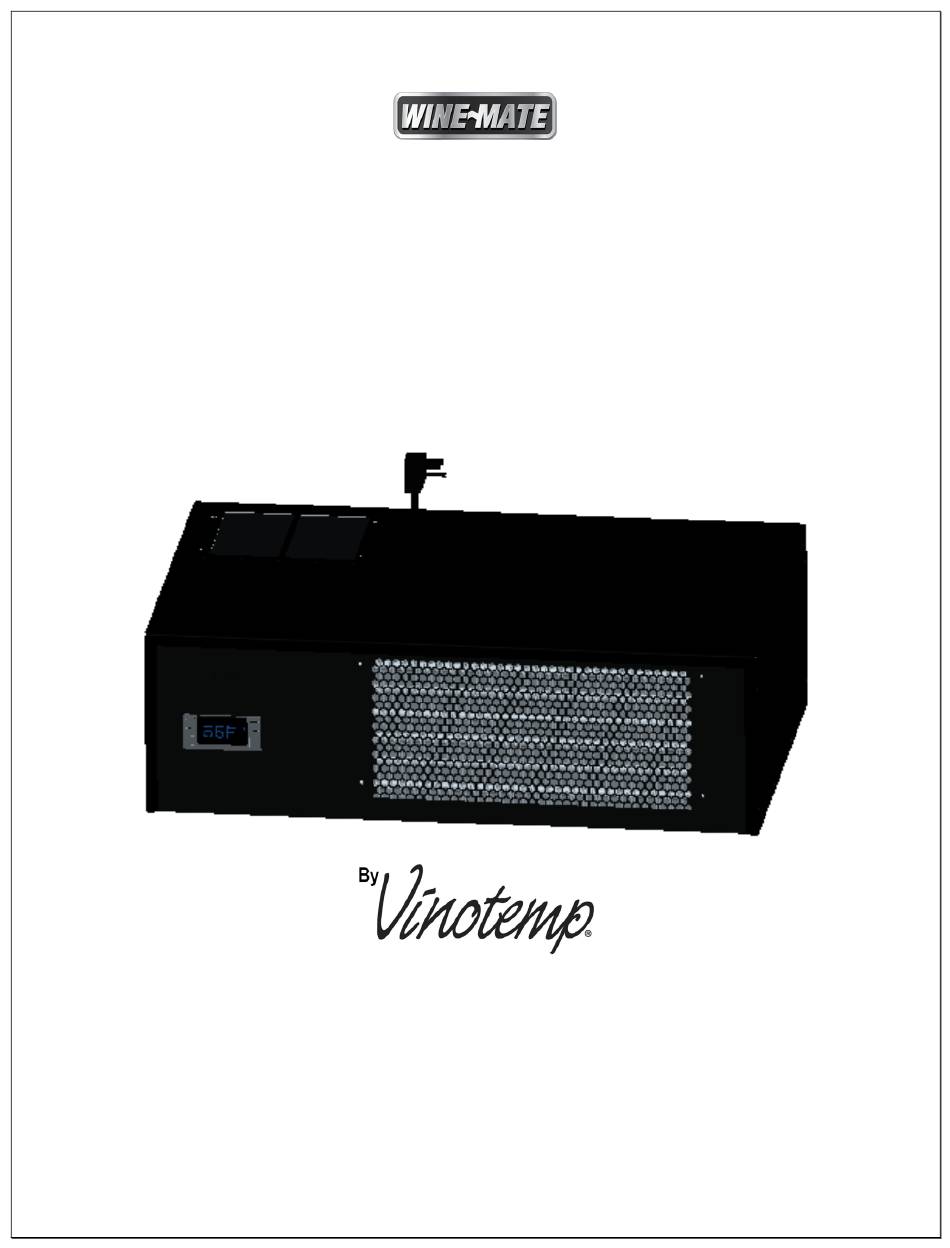

Installation, Use & Care Manual
Self-contained Wine Cooling System
Read and save these instructions.
Do not plug the unit into power until 24 hours after
delivery.
WM-1500LOWP
WM-1500LOWP-TE
WM-2500LOWP
WM-2500LOWP-TE

Advertisement

loading
Need help?

Need help?

Do you have a question about the WINE-MATE WM-1500LOWP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Vinotemp WINE-MATE WM-1500LOWP

  • Page 1 Installation, Use & Care Manual Self-contained Wine Cooling System WM-1500LOWP WM-1500LOWP-TE WM-2500LOWP WM-2500LOWP-TE Read and save these instructions. Do not plug the unit into power until 24 hours after delivery.
  • Page 2 SAFETY INSTRUCTIONS Electrical Safety Improper use of the power cord plug can result in the risk of electrical shock, property damage and personal injury or death. Unplug the unit or disconnect power before performing any DANGER maintenance. Upon receipt and inspection of the unit the power cord must be replaced if it is damaged.
  • Page 3: Table Of Contents

    Table of Contents Features & Specifications………………………………………………………….3 Installation Instructions…………………..……………………………………..5 Temperature and Humidity………………………………..…………………..12 Care Guide……………………………………………………………………..………16 Troubleshooting……………………………………………………………………..17 Electrical Wiring Diagram……………………………………………..…………20 Customer Support……………………..……………………………………………21 Warranty…………………………….………………………………………………….22 - 2 -...
  • Page 4: Features & Specifications

    Features and Specifications • WM-1500LOWP & 1500LOWP-TE and WM-2500LOWP & 2500LOWP-TE cooling units are designed to provide a subtle temperature between 50~65 °F for a properly insulated wine cabinet. • The refrigerated space will maintain humidity range within 50~70% RH. •...
  • Page 5 Fig. 1.2 Dimensions The specifications are listed as follows: Dim L x W x H Airflow Cabinet Size Electrical Weight Model No Exhaust (in) (CFM) (cu ft) Rating (lb) 24-1/4 x 15-1/8 x WM-1500LOWP Rear 115V/60Hz/3A 7-1/2 24-1/4 x 15-1/8 x WM-1500LOWP-TE 115V/60Hz/3A 7-1/2...
  • Page 6: Installation Instructions

    Installation Instructions Mounting brackets, screws, gaskets and other seal materials are not NOTE included. Do not install any ducts onto the supply, return, intake and exhaust. Because of potential safety hazards under a certain condition, we strongly recommend against the use of an extension cord. However, if you still elect to use an extension cord, it is absolutely necessary that it CAUTION will be a UL LISTED 3-wire grounding type extension cord having a 3-...
  • Page 7 2. Cooling Unit Installation • The cooling unit produces cooling supplied into the cabinet, meanwhile it also generates heat that must be exhausted outside the cabinet. So the cold-air supply and warm-air return must be separated from the hot-air exhaust and ambient-air intake.
  • Page 8 Fig. 2.2 Top Exhaust Cutouts 16” Fig. 2.3 Installing Screw Inserts Fig. 2.4 Installing Rear Gaskets Top Gasket Fig. 2.5 Installing Top Gaskets - 7 -...
  • Page 9 Fig. 2.6 Installing Cooling Unit - 8 -...
  • Page 10 Ambient Air Intake Rear Exhaust Fig. 2.7 Cooling Unit Installed (Rear Exhaust) - 9 -...
  • Page 11 Ambient Air Intake Top Exhaust Fig. 2.8 Cooling Unit Installed (Top Exhaust) - 10 -...
  • Page 12 Ambient Air Intake Top Exhaust Cover Low Front Grille Fig. 2.9 Cooling Unit Installed (Low Front Grille) - 11 -...
  • Page 13: Temperature And Humidity

    Temperature and Humidity 1. The controller Fig. 3.1 Temperature Controller 1) Keys SET: To display set-point; in programming mode it selects a parameter or confirms an operation. : To start a manual defrost. : To see the maximum stored temperature; in programming mode it browses the parameter codes or increases the displayed value.
  • Page 14 4) Alarm Signals The alarm codes are described as follows. MESSAGE CAUSE FUNCTION Temperature probe Compressor switching to Con and CoF faulty Probe temperature ALU higher than the High temperature alarm setting temperature; Outputs unchanged Probe temperature ALL lower than the Low temperature alarm setting temperature;...
  • Page 15 6. Parameter Programming 1) Press and hold the SET + keys until the “°C” or “°F” LED starts flashing, then release the keys. 2) Press and hold again the SET + keys until the Pr2 label is displayed, then release the keys.
  • Page 16 7. How to calibrate the air probe If the actual cellar temperature differs from the setting temperature, set parameter ot = actual cellar temperature minus set-point. 8. How to adjust defrost cycle In case there is excessive frost, the parameters FnC = C-y, idF = 4 and MdF = 20 can be used to avoid frost.
  • Page 17: Care Guide

    Care Guide 1. Cleaning Condenser • Clean the condenser regularly at least every 6 months. • Condenser is located on the ambient air intake side of the cooling unit. • Use a condenser brush or a vacuum cleaner with an extended attachment to clean the condenser.
  • Page 18: Troubleshooting

    Troubleshooting This Troubleshooting Chart is not prepared to replace the training required for a professional refrigeration service person, not is it comprehensive Complaint Possible Causes Response 1. Unit not running Power cord not plugged Check power cord b. No power from supply b.
  • Page 19 6. Temperature Improper cellar insulation & seal Check insulation, gasket and door opening, power cord grommet high or not b. Cellar too large b. Check for excessive size cooling and Ambient temperature too high Check installation location running d. Exhaust restricted d.
  • Page 20 12.Temperature a. Low temperature setting a. Raise the setting b. Low ambient temperature b. Move to another location c. Air probe fault c. Change a new one d. Temperature controller fault d. Change a new one 13.Evaporator a. Evaporator air flow restriction a.
  • Page 21: Electrical Wiring Diagram

    Electrical Wiring Diagram Fig. 6.1 Wiring Diagram - 20 -...
  • Page 22: Customer Support

    Customer Support If you need further assistance, please contact us at: Vinotemp International Corp 732 S Racetrack Rd. Henderson, NV 89015 Tel: (310) 886-3332 Fax: (310) 886-3310 Email: info@vinotemp.com - 21 -...
  • Page 23: Warranty

    VINOTEMP, in the original shipping carton, shipping prepaid, VINOTEMP will at its option, repair or replace the product free of charge.
  • Page 24 VINOTEMP will not accept COD shipments. If the unit is determined to be faulty and is within the twelve month warranty period VINOTEMP will, at its discretion, repair or replace the unit and return it free of charge to the original retail customer.
