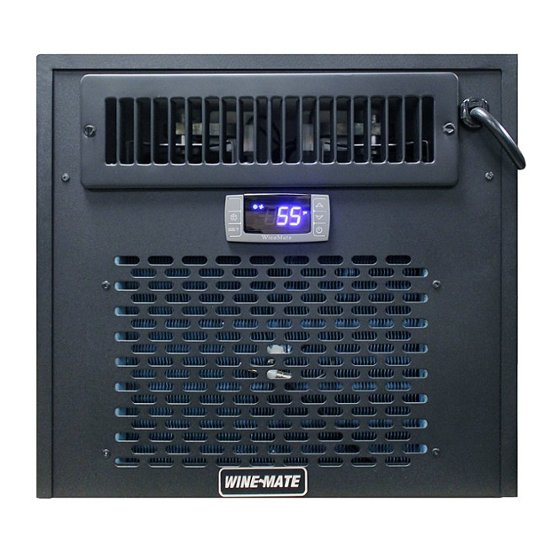

Vinotemp WINE-MATE WM-1500HZD Installation, Use & Care Manual

Wine cooling system
Hide thumbs Also See for WINE-MATE WM-1500HZD:
Table of Contents

Advertisement

Quick Links

See also: Service Manual

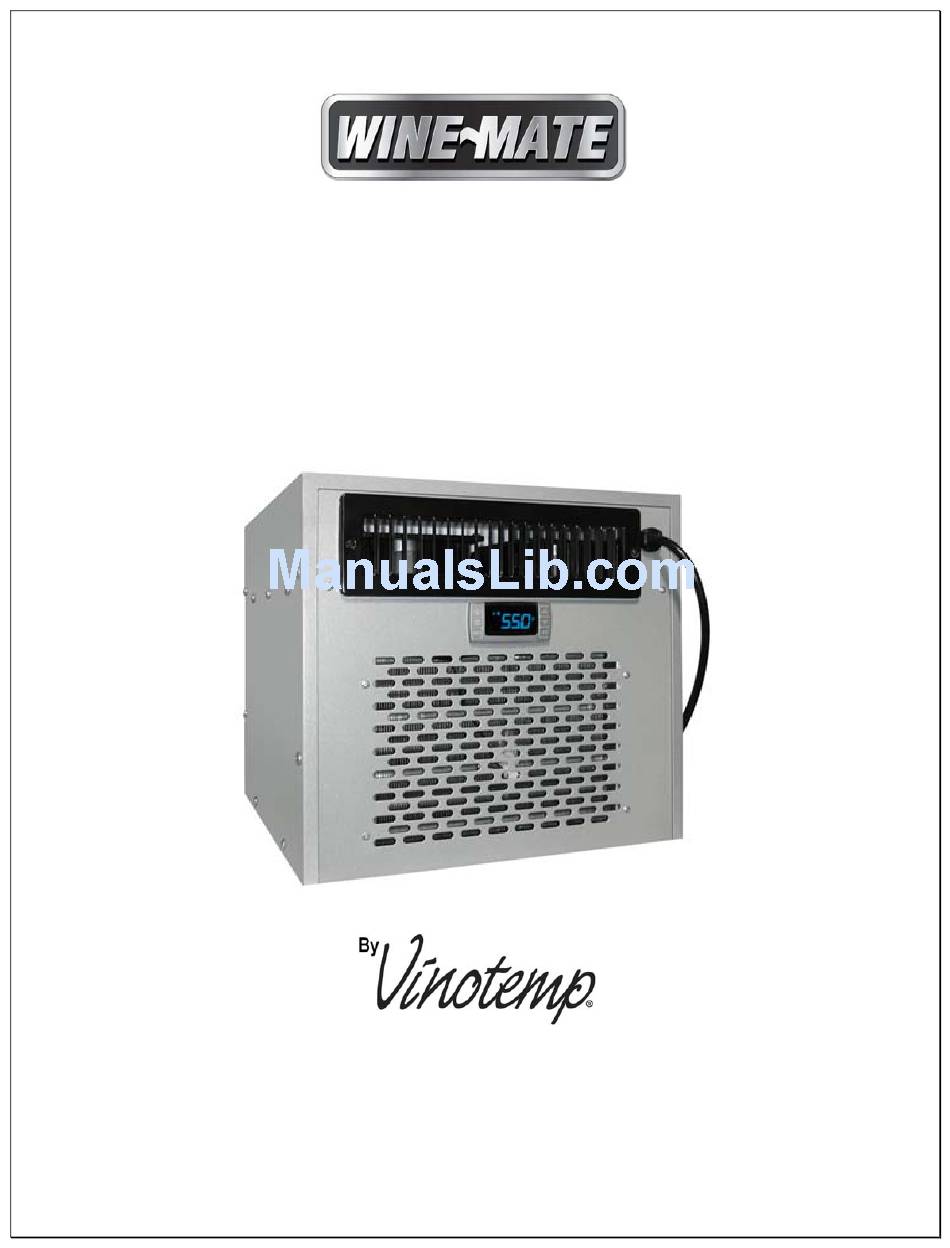

Wine Cooling System
WM-1500HZD, WM-2500HZD
WM-3500HZD, WM-4500HZD
WM-6500HZD, WM-8500HZD
Installation, Use & Care Manual
Read and save these instructions
w
w
w
.
w
i
n
e
m
a
t
e
.
c
o
m
w
w
w
.
w
i
n
e
m
a
t
e
.
c
o
m
w
w
w
.
v
i
n
o
t
e
m
p
.
c
o
m
w
w
w
.
v
i
n
o
t
e
m
p
.
c
o
m

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WINE-MATE WM-1500HZD and is the answer not in the manual?

Questions and answers

Related Manuals for Vinotemp WINE-MATE WM-1500HZD

Summary of Contents for Vinotemp WINE-MATE WM-1500HZD

  • Page 1 Wine Cooling System WM-1500HZD, WM-2500HZD WM-3500HZD, WM-4500HZD WM-6500HZD, WM-8500HZD Installation, Use & Care Manual Read and save these instructions...

  • Page 2: Important Safety Information

    Important Safety Information NOTES: • Do not plug in until 24 hours after delivery. • Do not use a ground fault interrupter (GFI). • A dedicated 20 AMP circuit for WM-1500~2500HZD and 30 AMP for WM- 4500~8500HZD are required. - 1 -...

  • Page 3: Table Of Contents

    Table of Contents Features & Specifications.…………………….……………..3 Installation Instructions……………..………………………..6 Temperature & Humidity…………………………..………..14 Care Guide…………………………………………………….18 Troubleshooting………….…………………………………..19 Electrical Diagrams………………..…………………….…22 Customer Support…….…………..…………………….…24 Warranty……………………………………………………….25 - 2 -...

  • Page 4: Features & Specifications

    Features and Specifications • HZD series cooling units are designed and used to provide a stable temperature between 50~65 °F for a properly insulated space. • The refrigerated space will maintain humidity ranges within 50~70% RH. • These temperature and humidity ranges are optimized for long term storage of wine.
  • Page 5 Fig. 1.2 DIMENSIONS The specifications and dimensions are listed as follows: Cellar Size Dimensions Weight Model Electrical (cu ft) W”XD”XH” (lb) WM-1500HZD 14.25X16X13.25 115V/60HZ/4A WM-2500HZD 14.25X16X13.25 115V/60HZ/5A WM-3500HZD 14.25X21.25X19.75 115V/60Hz/6A WM-4500HZD 1000 14.25X21.25X19.75 115V/60Hz/9A WM-6500HZD 1500 17X28X22 115V/60Hz/14A WM-8500HZD 2000 17X28X22 115V/60Hz/16A NOTES:...

  • Page 6: Installation Instructions

    Installation Instructions NOTES: • Mounting brackets, screws, gaskets and other seal materials are not included. • Do not install any ducts onto the supply, return, intake and exhaust. • Because of potential safety hazards under a certain condition we strongly recommend against the use of an extension cord.
  • Page 7 2. WM-1500~2500HZD cabinet installation • Cut a rectangular inside opening with the 1/4” clearance inwards to the width and height of the cooling unit. By not going through, leave 1/2” lip inside at the wall to place the gaskets (see Fig 2.1). •...
  • Page 8 Fig. 2.2 THREAD INSERT Fig. 2.3 REAR GASKET - 7 -...
  • Page 9 Fig. 2.4 TOP EXHAUST GASKET Fig. 2.5 COOLING UNIT MOUNTING - 8 -...
  • Page 10 Fig. 2.6 SECURING BRACKET & SCREW - 9 -...
  • Page 11 Fig. 2.7 CABINET GRILLE - 10 -...
  • Page 12 3. WM-3500~8500HZD through-wall installation Fig. 2.8 THROUGH- WALL INSTALLATION • The cooling unit shall be mounted near the ceiling with equal distance from each side of the room. • Cut a rectangular opening at the wine room wall as illustrated. The dimensions of the opening shall be 1/4”...
  • Page 13 NOTE: The cooling unit can be installed with the front of the unit flush with the inside of the wall. Construct a shelf outside the room accordingly. Fig. 2.9 THROUGH-WALL INSTALLATION Fig. 2.10 TOP EXHAUST GASKET - 12 -...
  • Page 14 Fig. 2.11 WALL GRILLE 4. Cellar Construction This is only a guide and shall be considered as minimum requirements. All interior walls and floors shall have a vapor barrier and a minimum of R13 insulation. All exterior walls and ceiling shall have a vapor barrier and a minimum of R19 insulation.

  • Page 15: Temperature & Humidity

    Temperature and Humidity 1. Use of the controller Fig. 3.1 TEMPERATURE CONTROLLER 1) Keys SET: To display target set point; in programming mode it selects a parameter or confirm an operation. (DEF): To start a manual defrost. (UP): To see the maximum stored temperature; in programming mode it browses the parameter codes or increases the displayed value.
  • Page 16 4) Alarm Signals The alarm codes are described as follows. MESSAGE CAUSE FUNCTION Temperature probe faulty Compressor switching to Con and CoF Probe temperature ALU higher than the High temperature alarm setting temperature; Outputs unchanged Probe temperature ALL lower than the Low temperature alarm setting temperature;...
  • Page 17 5. How to calibrate the air probe If the actual cellar temperature differs from the displayed temperature, set ot = actual cellar temperature minus displayed temperature. 6. How to adjust defrost cycle In case the cooling unit does not stop, the parameters FnC = C-n, idF =4 and MdF = 30 can be used to cycle off.
  • Page 18 3) Press up/down keys to scroll to the required parameter within 10 sec. 4) Press the “SET” key to display its value. 5) Use up/down keys to change its value within 10 sec. 6) Press “SET” to store the new value. 7) To exit: Press SET + or wait 15sec without pressing a key.

  • Page 19: Care Guide

    Care Guide 1. Cleaning Condenser • Clean the condenser regularly at least every 6 months. • Condenser is located on the ambient air intake side of the cooling unit. • Use a condenser brush or a vacuum cleaner with an extended attachment to clean the condenser.

  • Page 20: Troubleshooting

    Troubleshooting This Troubleshooting Chart is not prepared to replace the training required for a professional refrigeration service person, not is it comprehensive Complaint Possible Causes Response a. Power cord not plugged a. Check power cord 1. Unit not b. No power from supply b.
  • Page 21 high or not opening b. Cellar too large b. Check for excessive size cooling and c. Ambient temperature too high c. Check installation location running d. Exhaust restricted d. Leave minimum 3 feet clearance for continually the hot air exhaust side and leave minimum 1 foot clearance for the fresh air intake side e.
  • Page 22 b. Low ambient temperature b. Move to another location c. Air probe fault c. Change a new one d. Temperature controller fault d. Change a new one a. Evaporator air flow restriction a. Check for fans and CFM 13.Evaporator b. Condenser air flow restriction b.

  • Page 23: Electrical Wiring Diagrams

    Electrical Wiring Diagrams Fig. 6.1 WM-1500~2500HZD WIRING DIAGRAM Fig. 6.2 WM-1500~2500HZD WIRING DIAGRAM (ALARM CALL) - 22 -...
  • Page 24 Fig. 6.3 WM-3500~8500HZD WIRING DIAGRAM Fig. 6.4 WM-3500~8500HZD WIRING DIAGRAM (ALARM CALL) - 23 -...

  • Page 25: Customer Support

    Customer Support If you need further assistance, please contact us at: Vinotemp International 17631 South Susana Road Rancho Dominguez, CA 90221 Tel: (310) 886-3332 Fax: (310) 886-3310 Email: info@vinotemp.com - 24 -...

  • Page 26: Warranty

    BTU/H. While every effort has been made to provide accurate guidelines, VINOTEMP can not warranty its units to cool a particular enclosure. In case of failure, VINOTEMP cooling units must be repaired by the factory or its authorized agent. Repairs or modifications made by anyone else will void the warranty.
  • Page 27 VINOTEMP will, at its discretion, repair or replace the unit and return it free of charge to the original retail customer. If the unit is found to be in good working order, or beyond the initial twelve month period, it will be returned freight collect.
