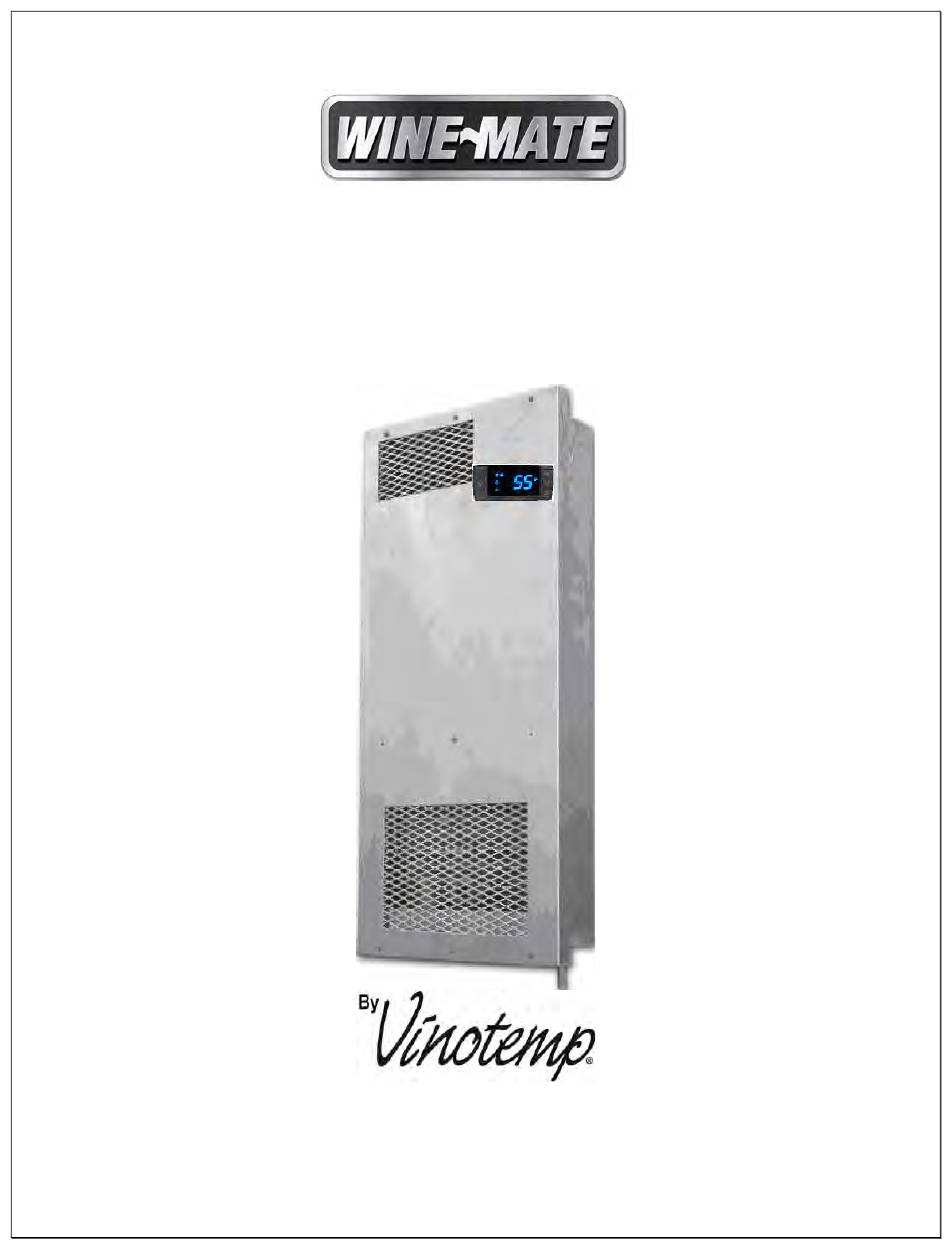

- Page 1 Wall Split Cooling System Installation, Operation & Care Manual WM-1520SSW WM-2520SSW www.vinotemp.com www.vinotemp.com Read and save these instructions Read and save these instructions...
- Page 2 Important Safety Information WARNING: • Do not use a ground fault interrupter (GFI). • A dedicated 10 AMP circuit is required.
-
Page 3: Table Of Contents
Table of Contents Cellar Construction.…………………………….……………..3 Features & Specifications…………………….….…………..4 Temperature & Humidity……….…………..………..……….6 Care Guide……………………………………………………10 User’ Troubleshooting…….………………………………...11 Installer’s Instructions………….…..….……..…………….15 Electrical Wirings..…………….…..….……..………………24 Customer Support……………………………………………26 Warranty……………………………………………………….27... -
Page 4: Cellar Construction
Cellar Construction This is only a guide and shall be considered as minimum requirements. All interior walls and floors shall have a vapor barrier and a minimum of R13 insulation. All exterior walls and ceiling shall have a vapor barrier and a minimum of R19 insulation. -
Page 5: Features & Specifications
Features and Specifications • Wine-Mate wall split cooling systems WM-1520~2520SSW are designed and used to provide a cold temperature between 50~65 °F for a properly insulated wine cellar. • The wine cellar will maintain humidity range within 50~70% RH. • These temperature and humidity ranges like in natural caves are optimized for long term storage of wine. - Page 6 NOTE: To prepare rough-in, leave minimum 4” clearances for electrical wiring and refrigeration piping. The specifications and dimensions are listed as follows: Electrical Weight (lb) Evap Unit Cond Unit Btu/h Cellar Size Model No Refrigerant Evap Unit/ Evap Unit/ L”xD”xH” L”xD”xH”...
-
Page 7: Temperature & Humidity
Temperature and Humidity 1. The controller Fig. 2 TEMPERATURE CONTROLLER 1) Keys SET: To display set-point; in programming mode it selects a parameter or confirms an operation. : To start a manual defrost. : To see the maximum stored temperature; in programming mode it browses the parameter codes or increases the displayed value. - Page 8 4) Alarm Signals The alarm codes are described as follows. MESSAGE CAUSE FUNCTION Temperature probe faulty Compressor switching to Con and CoF Probe temperature ALU higher than the High temperature alarm setting temperature; Outputs unchanged Probe temperature ALL lower than the Low temperature alarm setting temperature;...
- Page 9 6. Parameter Programming 1) Press and hold the SET + keys until the “°C” or “°F” LED starts flashing, then release the keys. 2) Press and hold again the SET + keys until the Pr2 label is displayed, then release the keys. The first parameter Hy will be displayed. 3) Press up/down keys to scroll to the required parameter within 10 sec.
- Page 10 8. How to adjust defrost cycle In case there is excessive frost, the parameters FnC = C-y, idF = 4 and MdF = 20 can be used to avoid frost. 9. How to adjust the humidity The parameter Fon is used to adjust the humidity in the wine cellar. Higher Fon results in higher relative humidity.
-
Page 11: Care Guide
Care Guide In general, always unplug system or disconnect power while doing care. 1. Coil Cleaning • Clean the condenser coil regularly. Coil may need to be cleaned at least every 6 months. • Use a vacuum cleaner with an extended attachment to clean the coil when it is dusty or dirty. -
Page 12: User' Troubleshooting
User’s Troubleshooting This Troubleshooting Chart is not prepared to replace the training required for a professional refrigeration service person, not is it comprehensive. Complaint Possible Causes Response 1. Unit not a. Power cord not plugged a. Check power cord b. No power from supply b. - Page 13 high or not b. Cellar too large b. Check for excessive size c. Ambient temperature too high c. Check installation location cooling and d. Exhaust restricted d. Leave minimum 3 feet clearance for running the hot air exhaust side and leave continually minimum 1 foot clearance for the ambient air intake side...
- Page 14 fan running b. Failed components b. Check start relay, start capacitor, overload protector, compressor. c. Low refrigerant c. Call service condensing unit not running 13.Temperature a. Low temperature setting a. Raise the setting b. Low ambient temperature b. Move to another location c.
- Page 15 high ambient temperatures or airflow restriction d. Defective components d. Call service for checking internal loose, inadequate lubrication and incorrect wirings...
-
Page 16: Installer's Instructions
WINE-MATE split system is shipped as components and is ready for use only after a certified refrigeration technician has properly installed the system. Proper installation is critical. Vinotemp can only warrant the quality of the components. The installation and proper operation of the system must be warranted by the installer. - Page 17 CAUTION: Liquid and suction line locations may differ from what are shown here, please check on the units for proper installation. Fig. 3 WM-152~252SFCW Evaporator Unit...
- Page 18 Fig. 4 WM-152~252SCU Condensing Unit Fig. 5 Liquid Filter Fig.6 Liquid Indicator 2. Temperature Controller and Air Probe Installation 1) The air probe shall be located in the wine cellar 5 ft above the floor or the air return area, but it shall not be located in the air supply area or other areas where air is not circulated.
- Page 19 2) Air supply shall be unobstructed minimum 12” for a direct blow installation; leave 2” clearance for a deflector installation; air return shall be unobstructed minimum 6”. 3) A grille can be used to cover the supply and return with 0~2” clearance; or 2-3 ft long duct can be added.
- Page 20 BACK POSITION FRONT POSITION MIDDLE POSITION Fig. 7 ROTALOCK Valve Operation BACK POSITION FRONT POSITION MIDDLE POSITION Fig. 8 Base Valve Operation Checking Pressure Control Settings 1) Use of the encapsulated pressure control (if applicable) Fixed suction pressure setting: Cut in = 32 psig; Cut out = 10 psig Fig.
- Page 21 Use of the crankcase heater The crankcase heater is installed around the lower part of the compressor and shall be turned on all the time. The heater is self-regulated. Use of the condenser fan control Head pressure setting: Cut in=170 psig; Cut out=110 psig; Differential=60 psig It closes on rise of pressure.
- Page 22 difference is more than 10 ft or the line set exceeds 75 ft, use both inverted U trap and suction accumulator. 3) If the condensing unit is located more than 10 ft above the evaporator unit, use U trap to aid oil returning to the compressor. 4) Complete pipe brazing, check solenoid valve and expansion valve restrictions and test leak.
- Page 23 clockwise to increase the minimum speed. The minimum speed should be adjusted until it supplies the required CFM. Fig. 11 Fan Speed Control 2) The subcooling at the condensing unit shall be around 10°F. The charge may be complete when there are no more bubbles forming in the liquid indicator. 3) Head pressure range: 120 ~ 150 psig at 70 ~ 90 °F condensing unit ambient temperature.
- Page 24 10. Pressure, Superheat and Subcooling Readings CAUTION: To read properly the service valves must be in the middle positions. Complaint Possible Causes 1) High suction pressure and low head pressure 1) Compressor may be bad Zero superheat and zero subcooling 2) High suction pressure and low head pressure 2) Expansion valve...
-
Page 25: Electrical Wirings
Electrical Wiring Diagrams CAUTION: • Hidden lines are the field wirings • Use minimum 14 gauge wires for power lines. • If equipped with low ambient condition kit, use low ambient temperature wiring diagrams. • A safety switch is always recommended for the condensing unit. Fig. - Page 26 Fig. 14 Low Ambient Temperature WM-1520~2520SSW-LA Electrical Wiring Diagram...
-
Page 27: Customer Support
Customer Support If you need further assistance, please contact us at: Vinotemp International 17631 South Susana Road Rancho Dominguez, CA 90221 Tel: (310) 886-3332 Fax: (310) 886-3310 Email: info@vinotemp.com... -
Page 28: Warranty
BTU/H. While every effort has been made to provide accurate guidelines, VINOTEMP can not warranty its units to cool a particular enclosure. In case of failure, VINOTEMP cooling units must be repaired by the factory or its authorized agent. Repairs or modifications made by anyone else will void the warranty. - Page 29 VINOTEMP will, at its discretion, repair or replace the unit and return it free of charge to the original retail customer. If the unit is found to be in good working order, or beyond the initial twelve month period, it will be returned freight collect.
