1. Location

• Place the wine cellar in a properly ventilated location. Otherwise, heat
exhausted by the cooling unit will build up and it will not operate properly.
• The exhaust area must not be closed space and must be ventilated.
1) Rear Exhaust
• Leave min 6 "clearance from the rear to the wall.
• Leave min 12" clearance from the top to the ceiling.
• Leave min 6" clearance from the left and right sides.
2) Front Exhaust
• Leave min 6" clearance from the front if left and right sides unobstructed.
• Or, leave min 36" clearance from the front if left and right sides obstructed
3) Top Exhaust
• Leave min 12" from the top to the ceiling.
• Leave min 2 "clearance from the rear to the wall.
• Leave min 2" clearance from the left and right sides.
4) Side Exhaust
• Leave min 6 "clearance from the left or right side to the wall.
• Leave min 12" clearance from the top to the ceiling.

2. Installation

WM1500 HTD, HTD-TE
WM2500 HTD, HTD-TE

Installation Instruction

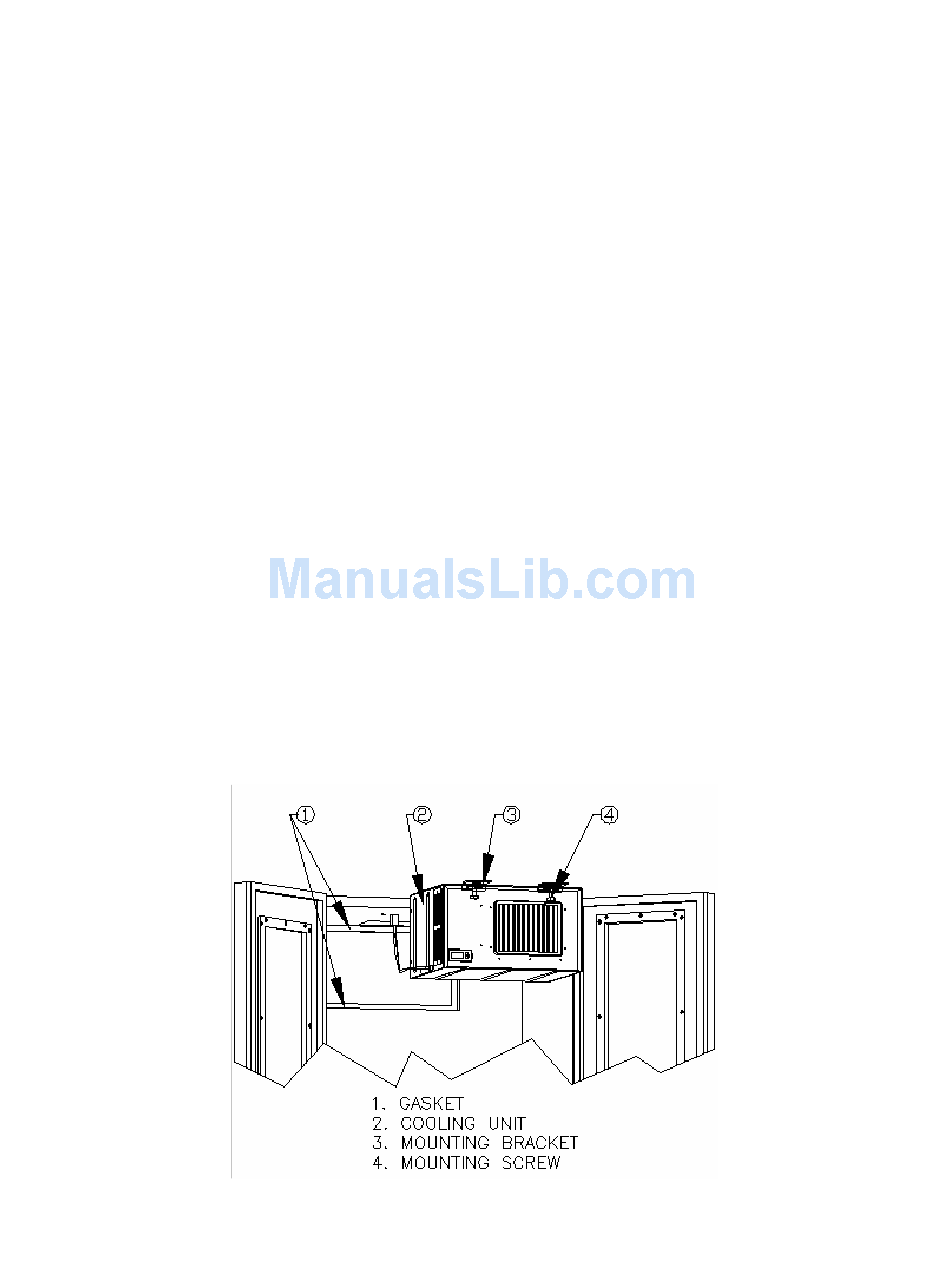

Fig. 2.1 COOLING UNIT MOUNTING
- 1 -
