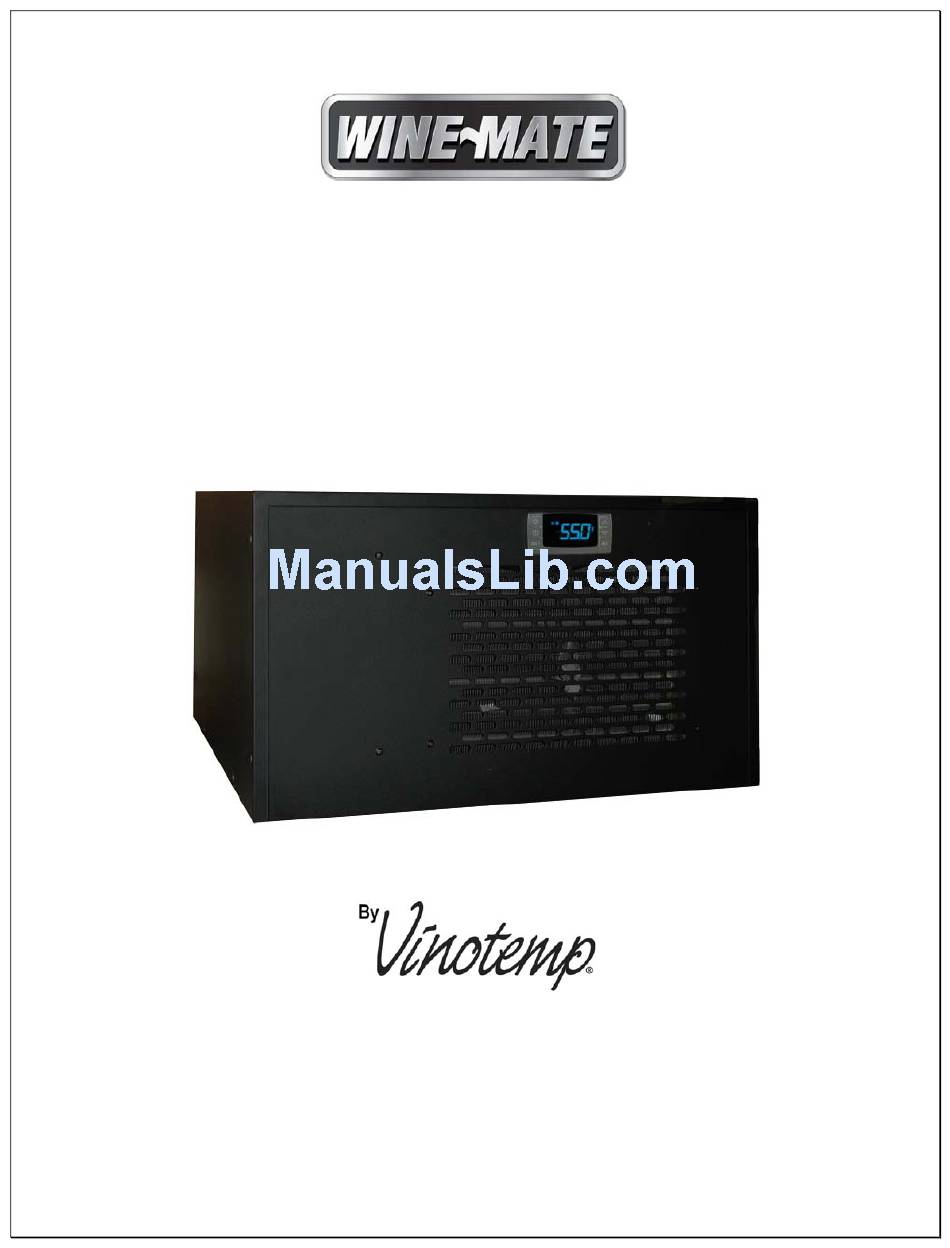

Wine Cooling System
WM-1520CD WM-1520CTED
WM-2520CD WM-2520CTED
Installation, Use & Care Manual
Read and save these instructions
w
w
w
.
w
i
n
e
m
a
t
e
.
c
o
m
w
w
w
.
w
i
n
e
m
a
t
e
.
c
o
m
w
w
w
.
v
i
n
o
t
e
m
p
.
c
o
m
w
w
w
.
v
i
n
o
t
e
m
p
.
c
o
m

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WINE-MATE WM-1520CTED and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vinotemp WINE-MATE WM-1520CTED

Summary of Contents for Vinotemp WINE-MATE WM-1520CTED

  • Page 1 Wine Cooling System WM-1520CD WM-1520CTED WM-2520CD WM-2520CTED Installation, Use & Care Manual Read and save these instructions...

  • Page 2: Important Safety Information

    Important Safety Information • DO NOT PLUG IN UNTIL 24 HOURS AFTER DELIVERY. • DO NOT USE A GROUND FAULT INTERRUPTER (GFI). • A DEDICATED 10 AMP CIRCUIT IS REQUIRED. - 1 -...

  • Page 3: Table Of Contents

    Table of Contents Features & Specifications…………….………….…………..3 Installation Instructions……………………………………..5 Temperature and Humidity …………………………..….…10 Care Guide…………………………………………………..14 Troubleshooting……………………………………………..15 Wiring Diagram……………………………………….………18 Customer Support……………………………………………20 Warranty……………………………………………………….21 - 2 -...

  • Page 4: Features & Specifications

    Features and Specifications • WM-1520CD, CTED and WM-2520CD, CTED cooling units are designed and used to provide a subtle temperature between 50~65 °F for a properly insulated wine cabinet. • The refrigerated space will maintain humidity range within 50~70% RH. •...
  • Page 5 Fig. 1.2 DIMENSIONS (in) The specifications and dimensions are listed as follows: Cabinet Size Model Exhaust Electrical Weight(lb) (cu ft) WM-1520cd Rear Exhaust 220V/50Hz/2A Top Exhaust 220V/50Hz/2A 1520cted WM-2520cd Rear Exhaust 220V/50Hz/3A Top Exhaust 220V/50Hz/3A 2520cted NOTES: • Also see the voltage, frequency and current specified on the label at the cooling unit.

  • Page 6: Installation Instructions

    Installation Instructions NOTES: • Mounting brackets, screws, gaskets and other seal materials are not included. • Do not install any ducts onto the supply, return, intake and exhaust. • There is a grommet on the power cord. Press and fit the grommet into the hole at the bottom of the cooling unit to prevent the exhaust air from going to the cabinet.
  • Page 7 Fig. 2.1 CUTOUT AND HOLE DIMENSIONS • The cooling unit produces cooling supplied into the cabinet, meanwhile it also generates heat that must be exhausted outside the cabinet. So the cold-air supply with return-air intake and hot-air exhaust with ambient-air side must be separated and sealed.
  • Page 8 • Move the cooling unit towards the mounting sides and push to press the gaskets. • Use 2 mounting brackets and 1/4” screws with 7/16” wrench to secure the cooling unit (see Fig 2.7). • Attach the exhaust wall grille with screws from the rear side of the cabinet. •...
  • Page 9 Fig. 2.4 MOUNTING SCREW INSERT Fig. 2.5 REAR GASKET Fig. 2.6 TOP EXHAUST GASKET - 8 -...
  • Page 10 Fig. 2.7 COOLING UNIT MOUNTED - 9 -...

  • Page 11: Temperature And Humidity

    Temperature and Humidity 1. Use of the controller Fig. 3.1 TEMPERATURE CONTROLLER 1) Keys SET: To display target set point; in programming mode it selects a parameter or confirm an operation. (DEF): To start a manual defrost. (UP): To see the maximum stored temperature; in programming mode it browses the parameter codes or increases the displayed value.
  • Page 12 4) Alarm Signals The alarm codes are described as follows. MESSAGE CAUSE FUNCTION Temperature probe faulty Compressor switching to Con and CoF Probe temperature ALU higher than the High temperature alarm setting temperature; Outputs unchanged Probe temperature ALL lower than the Low temperature alarm setting temperature;...
  • Page 13 5. How to calibrate the air probe If the actual cellar temperature differs from the displayed temperature, set ot = actual cellar temperature minus displayed temperature. 6. How to adjust defrost cycle In case the cooling unit does not stop, the parameters FnC = C-n, idF =4 and MdF = 30 can be used to cycle off.
  • Page 14 3) Press up/down keys to scroll to the required parameter within 10 sec. 4) Press the “SET” key to display its value. 5) Use up/down keys to change its value within 10 sec. 6) Press “SET” to store the new value. 7) To exit: Press SET + or wait 15sec without pressing a key.

  • Page 15: Care Guide

    Care Guide 1. Cleaning Condenser • Clean the condenser regularly at least every 6 months. • Condenser is located on the ambient air intake side of the cooling unit. • Use a condenser brush or a vacuum cleaner with an extended attachment to clean the condenser.

  • Page 16: Troubleshooting

    Troubleshooting This Troubleshooting Chart is not prepared to replace the training required for a professional refrigeration service person, not is it comprehensive Complaint Possible Causes Response a. Power cord not plugged a. Check power cord 1. Unit not b. No power from supply b.
  • Page 17 high or not seal opening b. Cabinet too large b. Check for excessive size cooling and c. Ambient temperature too high c. Check installation location running d. Exhaust restricted d. Leave minimum clearance for the continually hot air exhaust and fresh air intake sides e.
  • Page 18 d. Temperature controller fault d. Change a new one a. Evaporator air flow restriction a. Check for fans and CFM 13.Evaporator b. Condenser air flow restriction b. Check for fans and CFM freezing up c. Not stopping due to air leak, high c.

  • Page 19: Wiring Diagram

    Wiring Diagram Fig. 6.1 WIRING DIAGRAM - 18 -...
  • Page 20 Fig. 6.2 WIRING DIAGRAM (ALARM CALL) - 19 -...

  • Page 21: Customer Support

    Customer Support If you need further assistance, please contact us at: Vinotemp International 17631 South Susana Road Rancho Dominguez, CA 90221 Tel: (310) 886-3332 Fax: (310) 886-3310 Email: info@vinotemp.com - 20 -...

  • Page 22: Warranty

    BTU/H. While every effort has been made to provide accurate guidelines, VINOTEMP can not warranty its units to cool a particular enclosure. In case of failure, VINOTEMP cooling units must be repaired by the factory or its authorized agent. Repairs or modifications made by anyone else will void the warranty.
  • Page 23 VINOTEMP will, at its discretion, repair or replace the unit and return it free of charge to the original retail customer. If the unit is found to be in good working order, or beyond the initial twelve month period, it will be returned freight collect.
