Summary of Contents for Bartec QST 250

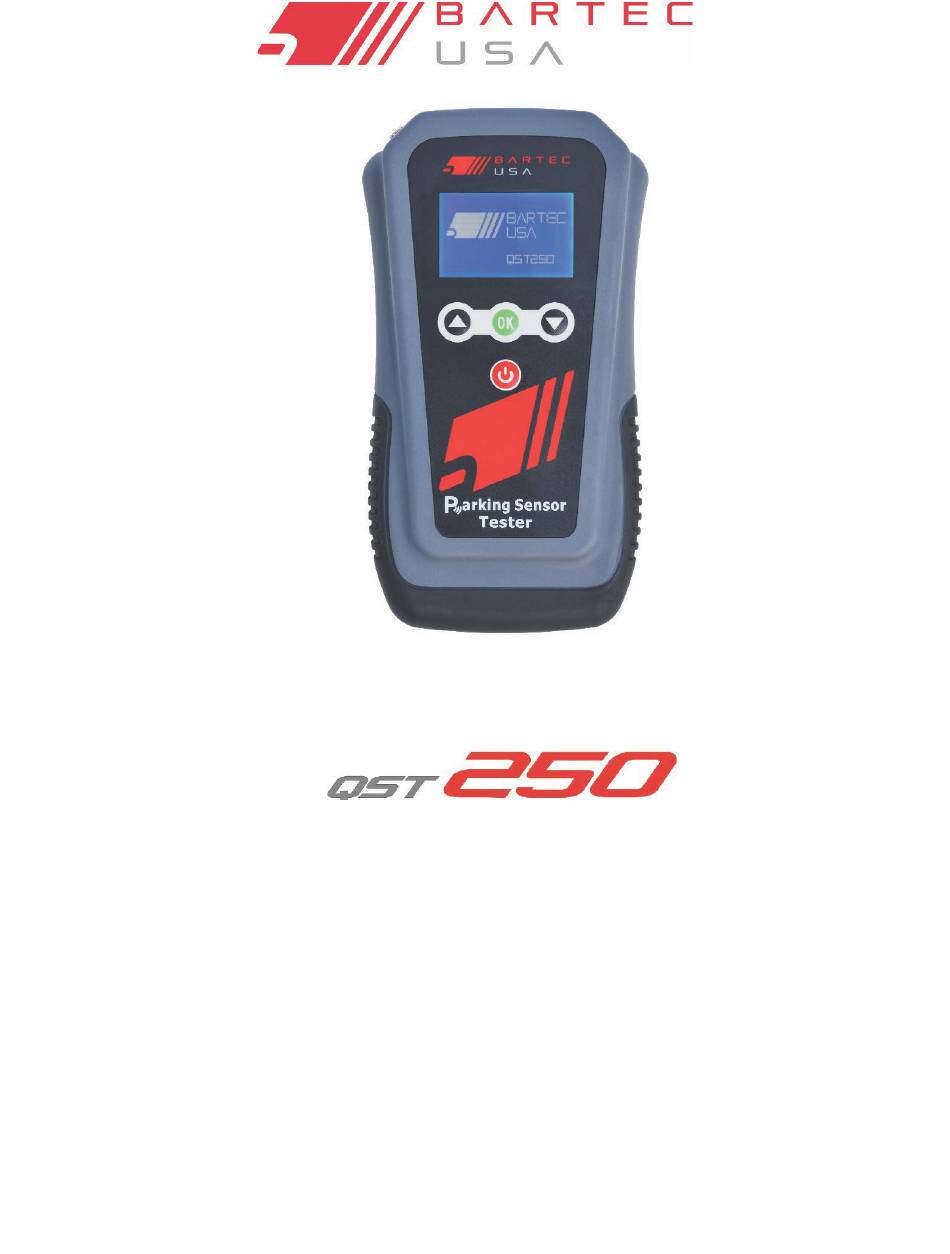

- Page 1 USER GUIDE...
-
Page 2: Important Notices
Bartec reserves the right to make changes at any time without obligation to notify any person or organization. Bartec will do its best to keep customers informed of any changes that might affect the tool’s performance. -
Page 3: Table Of Contents
User Guide QST250 Ultra Sonic Parking Sensor Tester Contents Important Notices ............................1 COPYRIGHT ..............................1 DISCLAIMER............................... 1 CE COMPLIANCE ............................1 Kit Contents ..............................3 Tool Layout ..............................3 Installing Batteries ............................3 Power On/Off ..............................3 Checking the Parking Sensors ........................3 Using Tool [Stand Alone] ........................... -
Page 4: Kit Contents
User Guide QST250 Ultra Sonic Parking Sensor Tester Kit Contents QST250 Tool • External Sensor (Probe) • Sticky Pad • Tool Layout Installing Batteries The QST250 is powered by 4 AAA Alkaline Batteries. Batteries will provide operational time of over 20 hours and will indicate when the batteries are low. -
Page 5: Using Tool [Stand Alone]
User Guide QST250 Ultra Sonic Parking Sensor Tester Using Tool [Stand Alone] To use the tool, Stand Alone, select either Quick Test or pick form the list of Advanced Tests. Once you are in an operations screen, point the tool towards the parking sensor. The tool will detect and display the output signal as shown here. -
Page 6: Pulse Oscilloscope
User Guide QST250 Ultra Sonic Parking Sensor Tester Pulse Oscilloscope This allows the technician to see the Signal Pulse of the sensor displayed in an “on-tool” oscilloscope. Peak Output Scan Shows output level on a continuously updating graph. Bar Graph Shows output level on a bar graph Frequency Analyzer As some sensors can be of varying frequency, this feature allows you... -
Page 7: Software Version
• Confirmation of your return shipping address • Do not attempt to open your Bartec tool, as this will void your warranty! Technical Support To speak with our Technical Support team, please call our toll-free number: (866) 407-8767 Or contact us by email: help@bartecusa.com... -
Page 8: Limited Warranty And Repair
THIS WARRANTY APPLIES ONLY TO THE ORIGINAL CONSUMER PURCHASER OF THIS PRODUCT. In the event of a defect, Bartec USA LLC will, at its discretion, repair or replace the tool with a product of like kind or quality, which may be new or reconditioned. - Page 9 The Warranty applies ONLY to the ORIGINAL OWNER and is not transferable. In the unlikely event of a defect, Bartec will at its discretion repair or replace the tool with a product of like kind or quality which may be new or reconditioned.
-
Page 10: Tool Registration Form (By Fax Or Mail)
Date of Purchase: ______/______/________________ Supplier Purchased from:_____________________________ Serial Number: ________________________________ Model: _______________________________________ Email Address: ________________________________ Please complete and mail to: Bartec USA: Attention Inside Sales 44231 Phoenix Drive, Sterling Heights, MI 48314 Or fax to 586-323-3801 Rev 1.0 November 2021...
