Operating Instructions RDW 03 Monitoring Electronics
The system quickly and reliably detects even small
liquid leakages. It transmits a warning in form of an
acoustic and optical alarm signal. At the same time,
floating contacts take care of the transfer of corre-
sponding messages to the building management
and control system.
The system is equipped with
• Electronic monitoring system
• Point sensor/sensor cable
• Accessories
Applications
Computer centers, ultraclean rooms, libraries,
banks, insurance companies, public buildings
Reservation Technical data subject to change without notice. Changes, errors and misprints may not be used as a basis for any claim for damages.
www.bartec.de
Technical data RDW 03, Type 17-85F3-8322
Enclosure
wall mounting polyester enclosure with a transp-box with
membrane keyboard and separate terminal compartment
Dimensions (W x H x D)
166 mm x 160 mm x 84 mm
Inputs
power supply
AC 230 V/50 Hz/5.3 VA or DC 24 V/1.3 W ± 10 % as standard
sensor via two-wire lead
sensor cable length: max. 1 000 m
point sensors: max. 50 pcs
Outputs
alarm relay, 2 separate changeover contacts
(6 A at AC 230 V/6 A at DC 24 V)
Memory
alarm/open circuit memory
Method of measurement
conductive (conductive liquids > 2 µS/cm)
Sensitivity
adjustable
Self-monitoring
sensor rupture and power failure
Operating elements
two-step confirm button (step 1: buzzer o ); on/o button
Signal
optical: LED-displays for operation/alarm/open circuit
acoustic: piezoelectric buzzer
Ambient temperature
0 °C to +60 °C
Protection class
IP 54

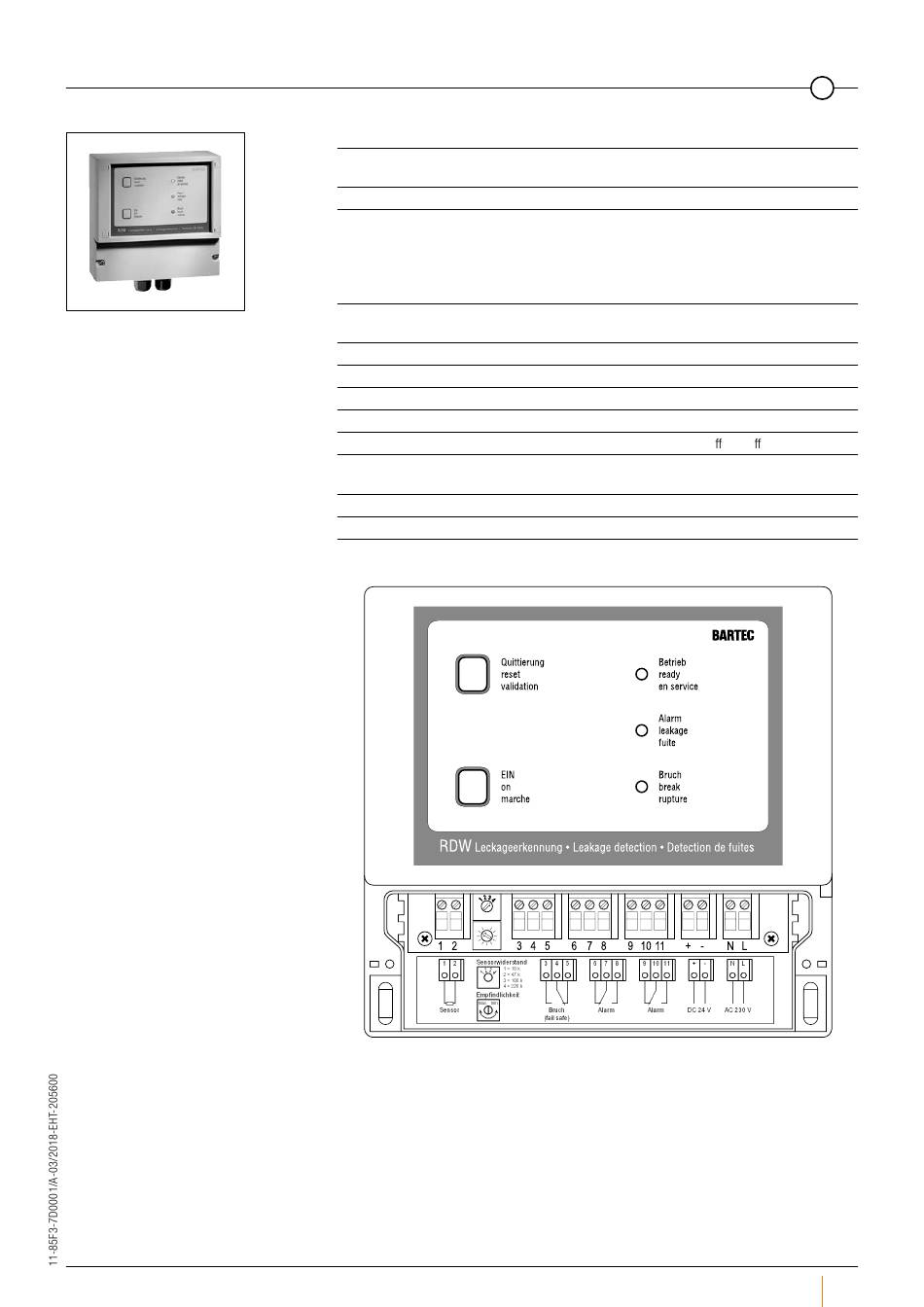

Terminal assignment
The contact overviews shown for the "break" and "alarm" relays under terminal assignment in the
documentation for the connected RDW 03 are depicted with the following status:
RDW 03 to voltage – sensor connected – operating status ready = no leakage present
"Break" relay is energised, i.e. electrical contact between terminals 4 - 5;
"Alarm" relays are de-energised, i.e. electrical contact between terminals 6 - 7, 9 – 10
When the RDW 03 is disconnected from the power supply,
the "Break" relay is de-energised = fail safe for system safety.
If a leak is detected, the "Alarm" relays are energised;
recommendation: use terminals 6 - 7, 9 - 10 = fail safe for detecting a leak.
M
BARTEC
EN 1/4
