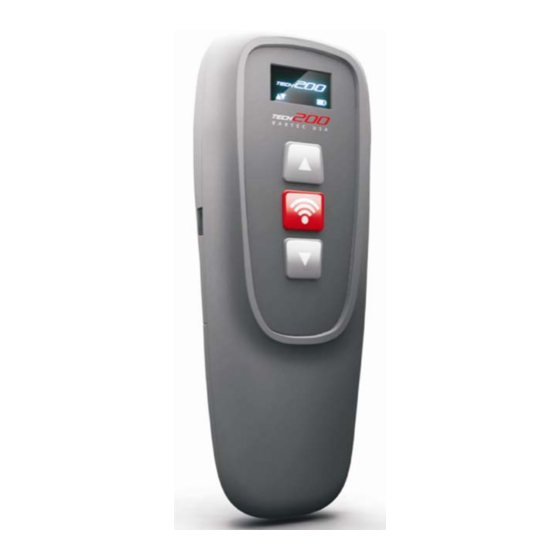

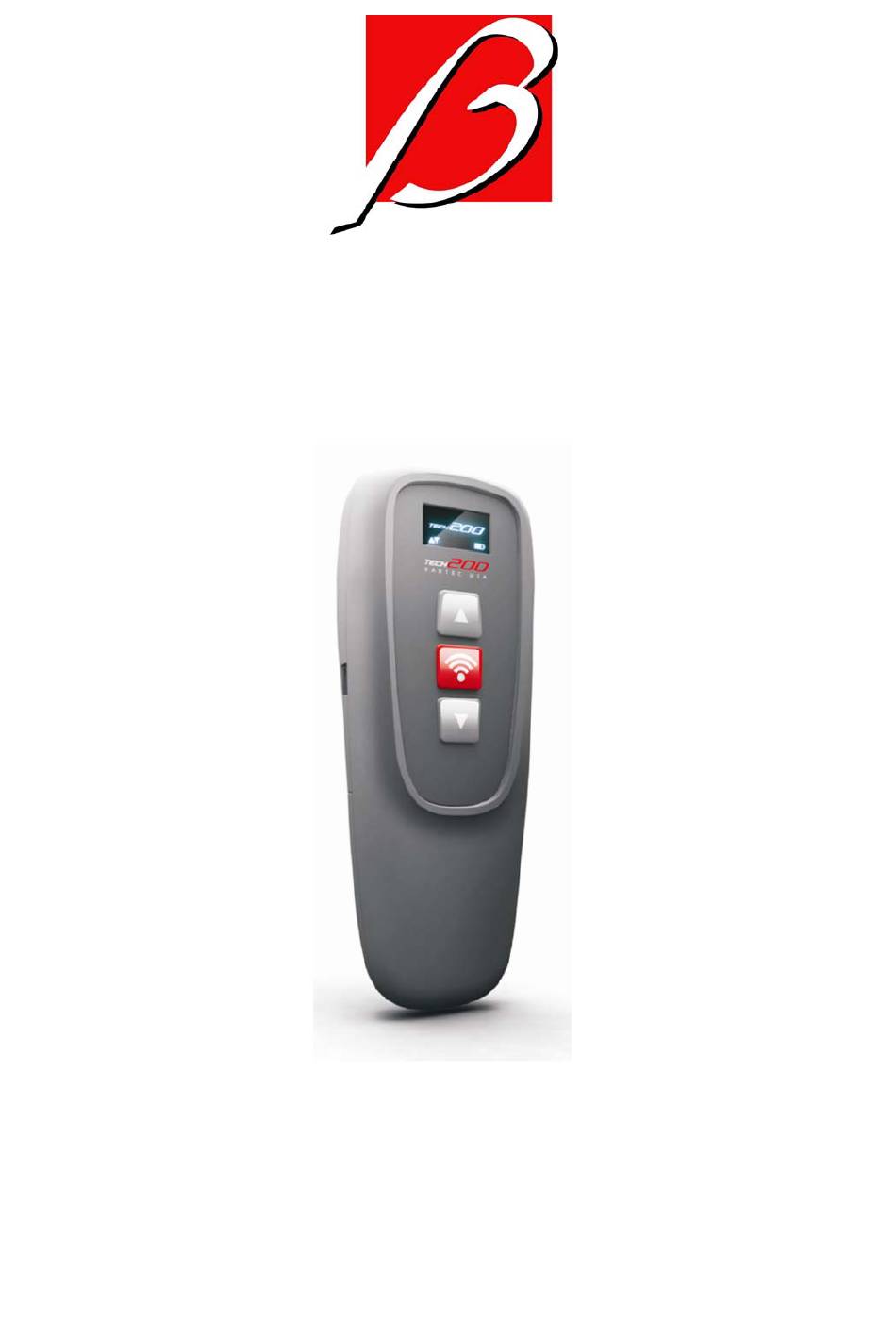

- Page 1 Tire Pressure Monitoring System Tool MODEL Tech200 User Guide J-45295-A...
- Page 2 Please become fully familiar with the instructions in this user’s manual. It should be kept ready to hand for consultation whenever required. The TECH200 tool is a test tool for testing and diagnostics of vehicle TPM systems. It is designed for future updating and extension with new functions and vehicle coverage.
- Page 3 CONTENTS Important Notices Inside Front Cover Safety Precautions Kit Components Powering the TECH200 ON and OFF Navigating the TECH200 Menu Using the TECH200 Updating the TECH200 firmware TECH200 Technical Specification SPX Corporation Limited Warranty...
- Page 4 Safety Precautions Read carefully the installation, operating and maintenance instructions in the Operator’s manual. Do not allow unqualified persons to use this equipment. This will prevent injury to persons and damage to the equipment. The work place must be dry, sufficiently lighted and well ventilated. Don’t forget that breathing carbon monoxide (odourless) can be very dangerous and even fatal.
- Page 5 Do not open the TECH200 or attempt to perform maintenance or repair operations on any internal parts. • You are advised to keep the packaging and to re-use it if the TECH200 is moved to another site. When using the TECH200 remember: •...
- Page 6 Note that this only works when in the menu system. Turning the TECH200 Off To switch the TECH200 off, you go back to the bottom menu, and then use the UP/DOWN arrow keys to navigate to the Off menu item, and press .
- Page 7 Button. The TECH200 will indicate SEARCHING. NOTE: In order to read properly, the TECH200 must be held against the tire and not the wheel or valve stem, refer to image shown above which shows the correct TECH200 position. Once you press at the NISSAN or Select Year prompt, the TECH200 tool will search for the TPM sensor.
- Page 8 Click on the shortcut to start the program. vii. To get the latest TECH200 firmware, login to your account and select the tool that you wish to update. viii. Download the firmware file to your PC, making a note of where the file has been downloaded. This is usually “My Documents/Downloads”...
- Page 9 TECH200 TECHNICAL SPECIFICATION Power Supply: Internal Li Ion rechargeable battery Max power consumption: 1.5W Schrader TPM, 0.5W all others Display: OLED single colour, graphic, resolution 96 x 39 pixels Keyboard: 3 keys, dust, water and grease-resistant Input/output: Mini-B style USB used to Connect to PC for firmware update Working environment: Temperature 0°C - 45°C, Humidity: 20-55%...
