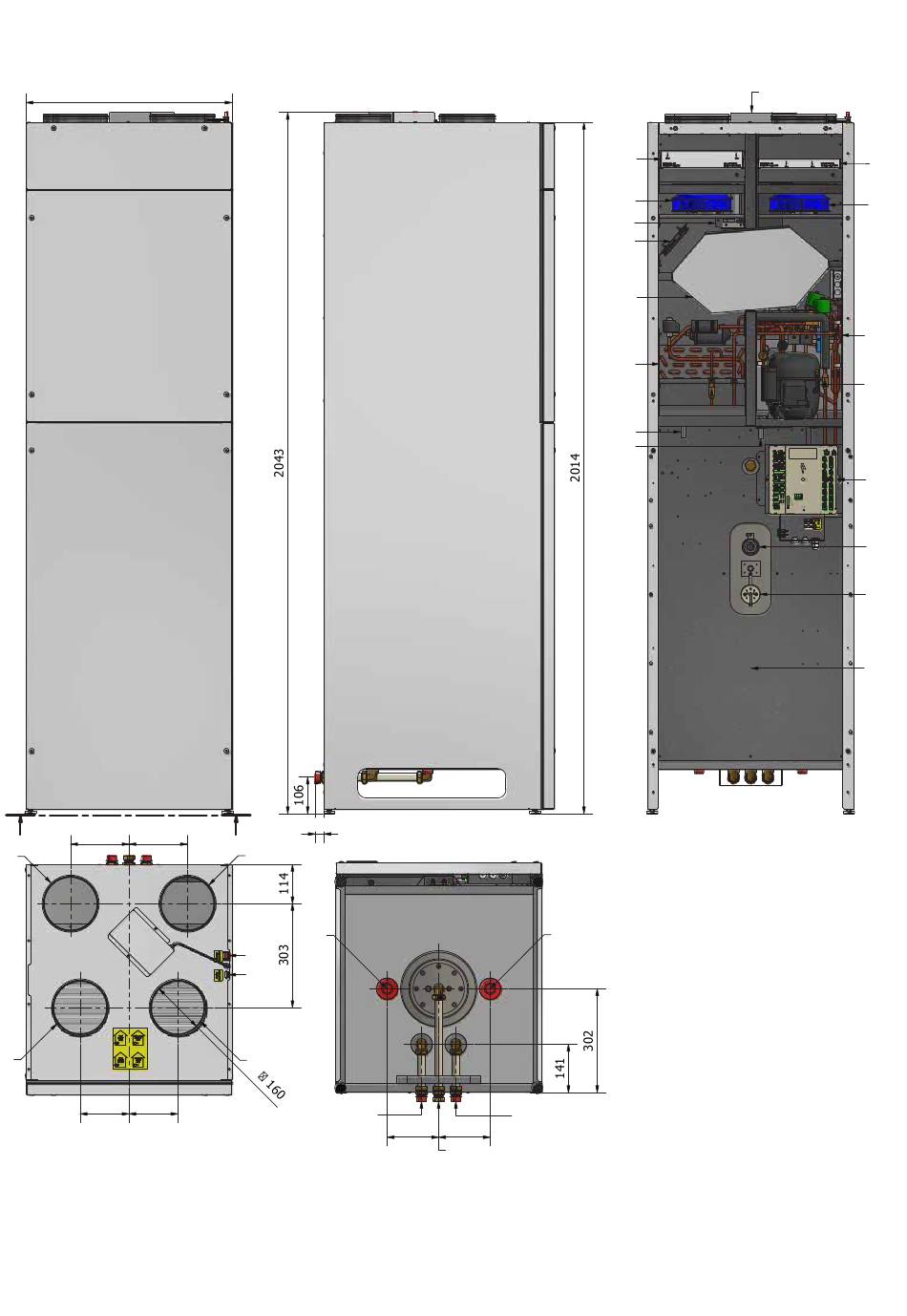

COMBI BLUELINE OVERVIEW

600
A
170 170
1
4
142 142
6
A
26
2
7
5
6
3
9
150
A
8
11
150
10
20
19
18
17
16
15
14
13
12
1. Dicharge air
2. Supply air
3. Extract air
4. Incoming air
5. I n ternet con nection
6. Display conn ection
7. Heating coil in let 3/4" RG
8. Heating coil outlet 3/4" RG
9. Hot water ou tlet 3/4" RG
10. Hot water circu lation 3/4" RG
11. Cold water inlet 3/4" RG
12. Condensate drain - Supply air
13. Condensate drain - Exhaust air
14. Evaporator
15. Counterflow heat exchanger
16. 1200W Electric preheater ( Option
17. Bypass
18. 90W Supply air fan
19. ePM1/F7 - Supply air filter
19. Coarse/G4 - Supply air filter
20. Bypass m otor
21. Coarse/G4 - Extract air filter
22. 90W Extract air fan
23. Condenser
24. Com pressor
25. Optim a 314 controller
26. 5/4" anode
27. 1 kW electric heating elem ent
28. 185 L. tank
1. Afkastluft
2. Tilluft
21
22
23
24
25
26
27
28
al)
