Summary of Contents for Genvex GE Premium 3

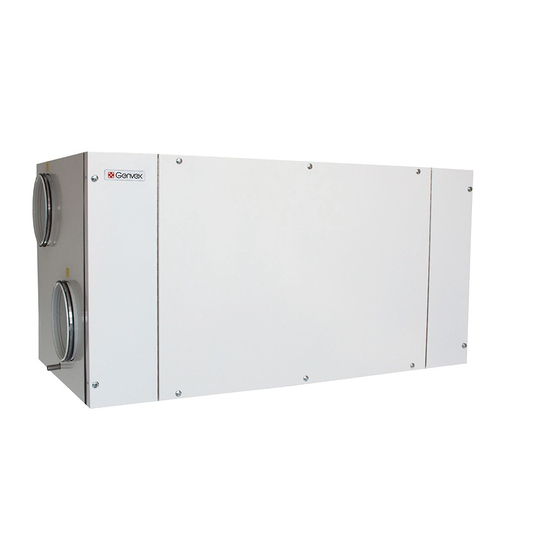

- Page 1 Installations Manual Active Ventilation Heat pump GES Premium 1/1L GE Premium 1/1L GE Premium 2 GE Premium 3 Version V1.04 - 0310...
-
Page 2: Table Of Contents
Table of contents Installation ................4 Duct connection ..............5 Duct system ................5 Condensate drain ..............6 Insulation of ducts in cold loft spaces ........6 Insulation of ducts in heated spaces........7 Electrical installation............... 7 Commissioning of the unit ............. 8 Maintenance of the unit ............ - Page 3 100 mm. This instruction must be followed. If the drain is 4) Make sure that the drain flows downwards all not made according to this instruction GENVEX the way from the unit. A/S cannot be made responsible for any additio-...
-
Page 4: Installation
Installation Installation Dimensions in mm 1373 The GE Premium range is available with supply air on the right-hand side (as shown) or supply air on the left-hand 1186 side and as a reversible cool/heat exchanger. When it is a left-hand version the unit is build laterally reversed, which means that the power connection is placed on the left-hand side. -
Page 5: Duct Connection
Installation Duct connection Friskluft At all duct connections there is a yellow sticker indicating Incomming Air which ventilation duct to be connected. Frischluft Connect the supply air duct: Afkast Duct system from the unit to the supply outlet in the living Exhaust Air Fortluft room... -
Page 6: Condensate Drain
Installation Condensate drain The units produces up to 5-8 litres of condensate per day. It is therefore important that the condensate drain is Fresh air Extract air correctly made and that the unit has a slight fall towards the condensate drain. The condensate drain pipe must Exhaust air Supply air be mounted with the necessary gradient and be led to an... -
Page 7: Insulation Of Ducts In Heated Spaces
If you wish to start up the unit before adjustment, do as follows. Before starting up the unit: 1: Make sure that the Genvex unit is correctly mounted and that all ducts are insulated as required. 2: Make sure that inspection doors can be opened so that service and maintenance of the unit can be carried out. -
Page 8: Commissioning Of The Unit
10-15 seconds until the Genvex logo starts flashing again and the equipment is back in normal operation. Careful handling of the plates is required. They have sharp edges and must not be damaged. - Page 9 Service: If you are unable to maintain your unit yourself, you can sign a service agreement with the Genvex service 100 mm department. If any faults arise in the unit, contact the Genvex service department.
-
Page 10: Fault Finding
Installation Fault finding Fault finding The display shows: Unit has stopped: Data fault: No light in any of the lamps on the control panel, even - no communication between the display and controller. though both buttons are pressed. - cable between display and circuit board is too long Fault: ... -
Page 12: Flow Diagram Ge Premium-Serie
Flow diagram GE Premium range Fresh Air Extract Air Counter current Evaporator (cooling coil) Condenser (heating coil) heat exchanger Exhaust Air Supply Air Control panel High pressure switch Compressor... -
Page 13: Eu-Declaration Of Conformity
Notes:... - Page 14 Notes:...
- Page 15 Notes:...
- Page 16 Tel.: + 385/ (0) 1/ 65 45 407 Fax: + 385/ (0) 1/ 65 45 409 E-Mail: pichler@zg.hnet.hr Portugal Iberterm PT-4475-493 Nogueira Maia Tel: +351 229 065 123/4 Fax: +351 229 065 125 E-Mail: paulo.neto@iberterm.com Web: www.iberterm.com Published by Genvex A/S, Sverigesvej 6, DK-6100 Haderslev www.genvex.dk...
