DVK-SFxx-y-GEVK EVBUM
AX-SFxx-y-GEVK
Evaluation Board
User's Manual
Introduction
The DVK−SFxx−y−GEVK kit is a quick start solution for the
development of Sigfox
on Chip (SoC).
The xx in the part numbers in this document refer to: xx = EU, US,
JK, or AZ which correspond to Sigfox regions RCZ1, RCZ2, RCZ3,
and RCZ4, respectively. The y is for the revision.
This user manual is applicable for all four kits.
The y in the part numbers refer to the current version of the kit.
Usage
Customers can communicate with the AX−SFxx−y SoC by terminal
emulation software or with an external micro−controller to test Sigfox
connectivity and to develop their application using the
pre−programmed AT command set as documented in the
corresponding product datasheets.
Kit Contents
•
1 Mini−module with AX−SFxx−x SoC and SMA Connector
•
1 Debugger Interface with Ribbon Cable
•
1 Mini−USB Cable
•
1 SMA Antenna
© Semiconductor Components Industries, LLC, 2017
June, 2017 − Rev. 0
Arrow.com.
Downloaded from
®
applications using the AX−SFxx−y System
www.onsemi.com
EVAL BOARD USER'S MANUAL

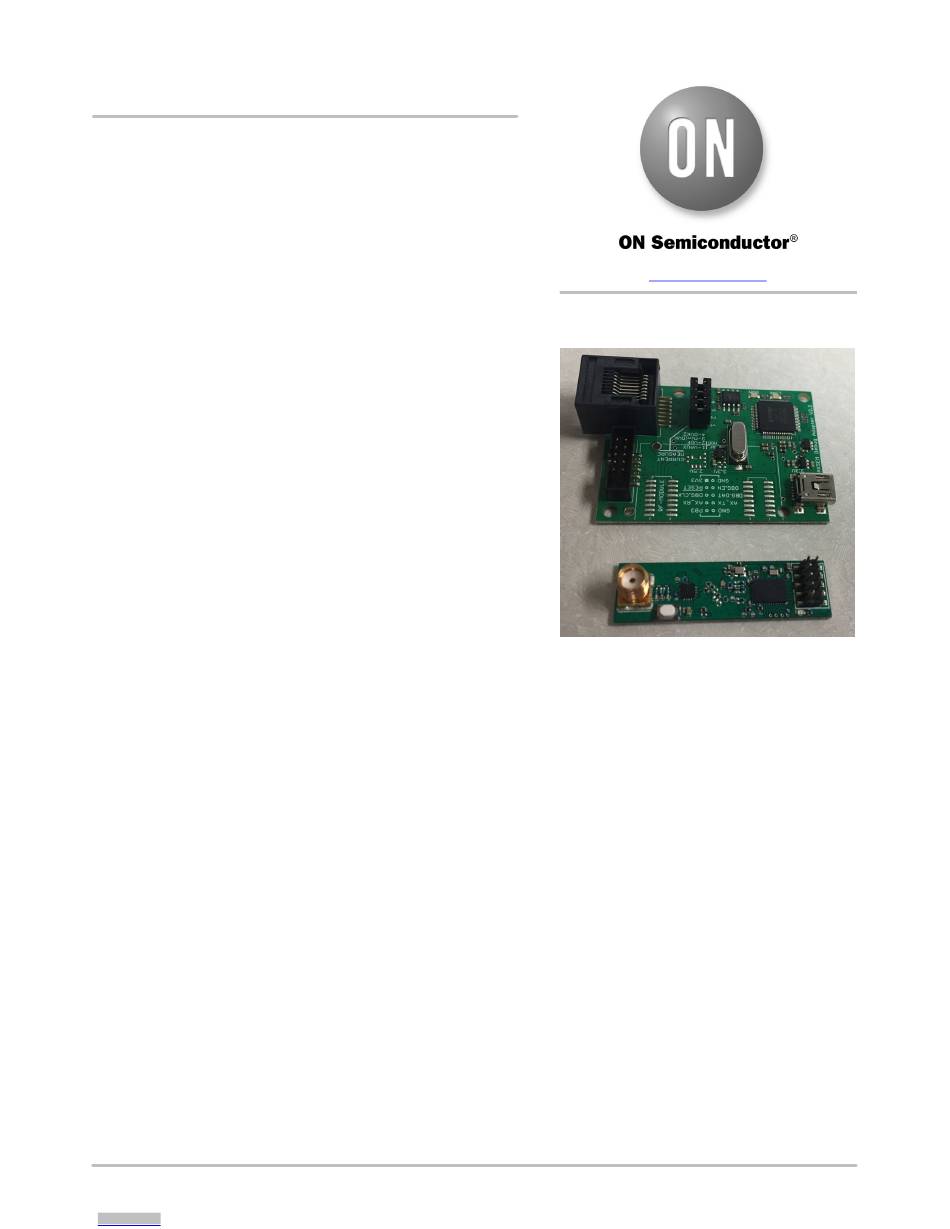

Figure 1. DVK Boards
1
Publication Order Number:
EVBUM2501/D
