NB3L208KMNGEVB
NB3L208K
Evaluation Board
User's Manual

Introduction

The NB3L208K is a differential 1:8 Clock fanout buffer
with High-speed Current Steering Logic (HCSL) outputs.
Inputs can directly accept differential LVPECL, LVDS and
HCSL signals. Single-ended LVPECL, HCSL, LVCMOS,
or LVTTL levels are accepted with a proper external V
reference supply. These signals will be translated to HCSL
and eight identical copies of Clock will be distributed,
operating up to 350 MHz.
This manual should be used in conjunction with the device
datasheet, which contains full technical details on the device
specifications and operation.
Top View
© Semiconductor Components Industries, LLC, 2016
April, 2016 − Rev. 1
TH

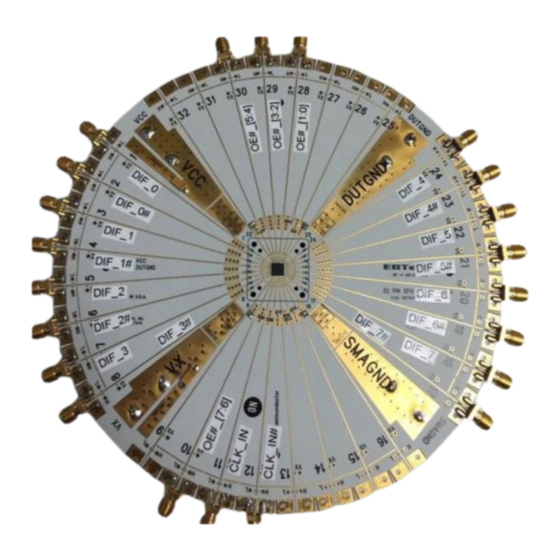

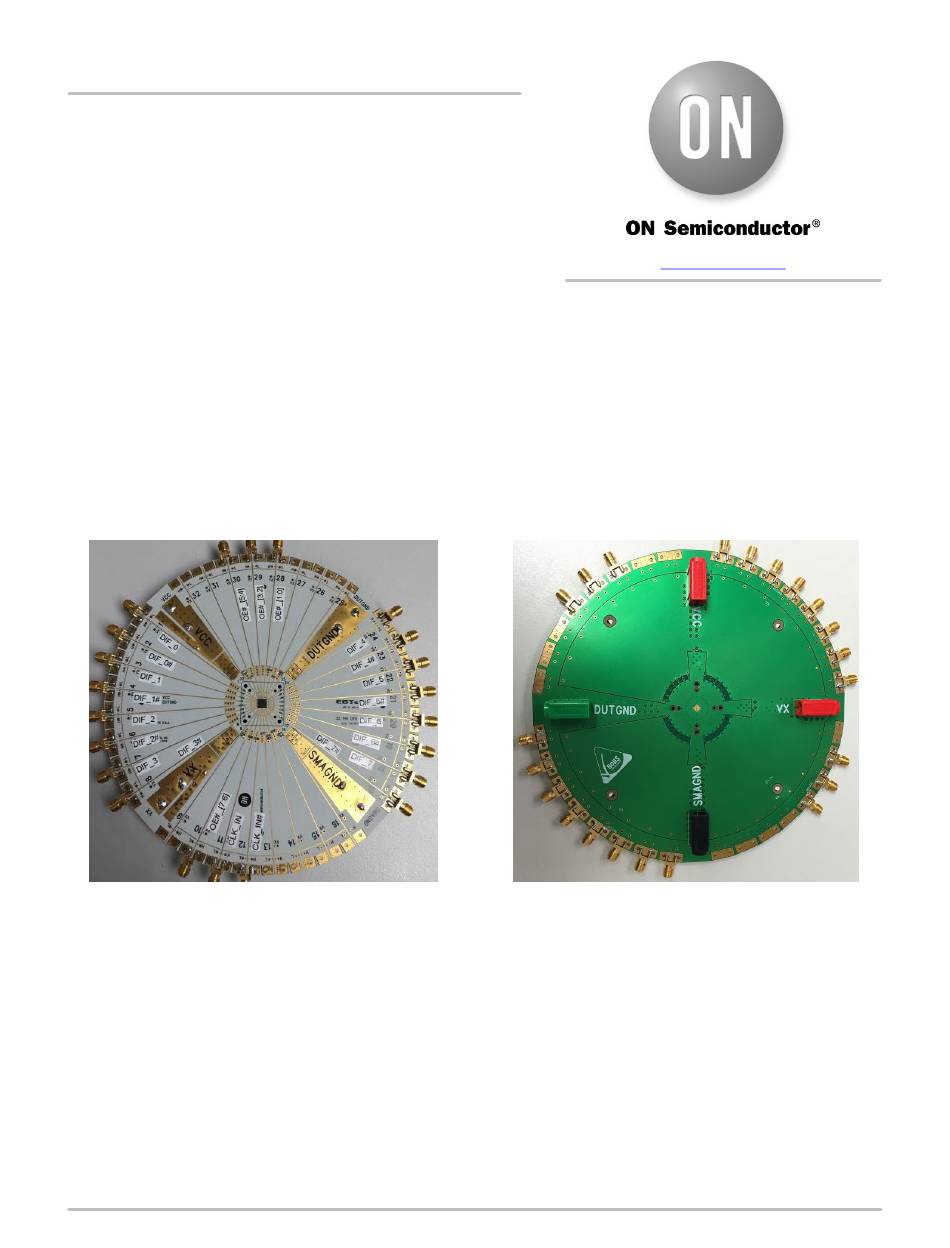

Figure 1. NB3L208KMNGEVB Top and Bottom View
1
www.onsemi.com
EVAL BOARD USER'S MANUAL
This evaluation board manual contains:
Information on the NB3L208K Evaluation Board
Block Diagram and Board Schematic
Assembly Instructions
Bottom View
Publication Order Number:
EVBUM2295/D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NB3L208K and is the answer not in the manual?

Questions and answers

Summary of Contents for ON Semiconductor NB3L208K

  • Page 1 Evaluation Board User's Manual www.onsemi.com Introduction The NB3L208K is a differential 1:8 Clock fanout buffer EVAL BOARD USER’S MANUAL with High-speed Current Steering Logic (HCSL) outputs. Inputs can directly accept differential LVPECL, LVDS and HCSL signals. Single-ended LVPECL, HCSL, LVCMOS,...
  • Page 2 Source Analyzer CH1 CH2 CH3 CH4 Balun DIF_0−7 CLK_IN CLK_IN DIF_0−7# NB3L208K DIF_0−7 DIF_0−7# Note: Balun Connected to Outputs Only during Phase Noise Testing. Figure 2. Time and Frequency Domain Block Diagram Power Supplies HCSL Outputs Each VDD, VDD_0 (VX on board), GND_0 (DUTGND...
  • Page 3 NB3L208KMNGEVB SMAGND C1 0.1 mF C5 0.1 mF VDD_0 VDD_0 OE#_[7:6] GND_0 CLK_IN OE#_[5:4] CLK_IN# OE#_[3:2] EP TIED TO DUT GND OE#_[1:0] C2 0.1 mF R3 475 W IREF GND_0 GND_0 VDD_0 VDD_0 SMAGND C3 0.1 mF C4 0.1 mF 10 mF Figure 4.
  • Page 4 Power-Up Sequence 1. Connect VDD and VDD_0 (VX on board) of 1. Turn on DUT power supply. the NB3L208K to DC source with power supply 2. Setup the generator V levels to set up cables (do not turn power on, yet).
  • Page 5 Screw Screw, 4−40 × 0.25, PHP Building Fasteners PMS 440 0025 PH Digi-Key H342−ND Evaluation Board NB3L208KEVB ON Semiconductor NB3L208KEVB QFN−32 Evaluation Board Device Under Test ON Semiconductor NB3L208K www.onsemi.com NOTE: Components are available through most distributors, i.e. www.newark.com, www.Digikey.com.
  • Page 6 onsemi, , and other names, marks, and brands are registered and/or common law trademarks of Semiconductor Components Industries, LLC dba “onsemi” or its affiliates and/or subsidiaries in the United States and/or other countries. onsemi owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of onsemi’s product/patent coverage may be accessed at www.onsemi.com/site/pdf/Patent−Marking.pdf.
  • Page 7 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: onsemi NB3L208KMNGEVB...
