SensorRF−GEVK Developer's Guide
Introduction
The SensorRF−GEVK IoT Development Platform allows
you to develop your own applications using battery-free
wireless sensors from ON Semiconductor based on the
®
Magnus
−S chip. SensorRF−GEVK allows you to control
the AMS Radon Reader to read sensor tags and display the
results to the user on a display or send the data to a remote
user through either a UART, TCP, CAN, I
interface.
The Developer's Tool
Everything you need to develop a custom application for
SensorRF−GEVK is included in the software image
pre-installed in the kit. The image includes:
•
The Debian Version of the Linux
which Includes the Linux Socket Interface
•
The Qt Toolkit
•
The QWT Library
•
The AMS Radon Reader Application Programming
Interface (API)
© Semiconductor Components Industries, LLC, 2016
June, 2016 − Rev. 0
2
C or SPI

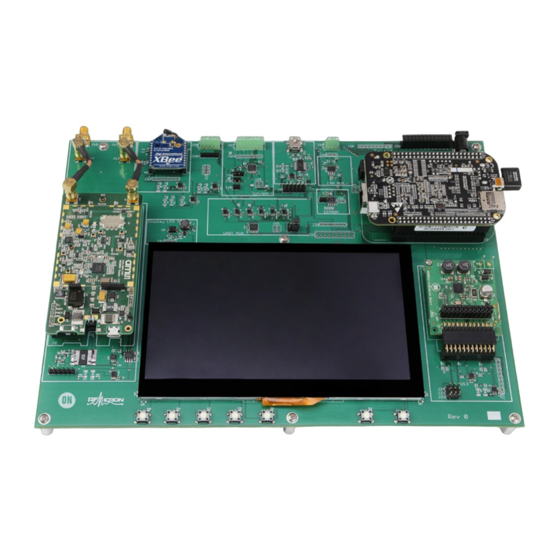

Figure 1. Photo of Development Platform
®
Operating System
1
www.onsemi.com
EVAL BOARD USER'S MANUAL
•
The GNU Compiler Collection (GCC)
•
The GDB Debugger
You can use the Integrated Development Environment or
the programming editor of your choice available for Linux.
To begin development, you can learn about the
SensorRF−GEVK Demo application which is described in
this document.
Publication Order Number:
EVBUM2479/D
