NB7NPQ1104MMTGEVB
NB7NPQ1104MMTGEVB
Evaluation Board
User's Manual
Introduction
The NB7NPQ1104MMTGEVB evaluation board was developed to
provide a convenient platform to quickly verify the operation of the
NB7NPQ1104M redriver in a USB type−A system environment.
This evaluation board manual contains:
•
Information on the NB7NPQ1104M Evaluation Board
•
Board Schematics
•
Bill of Materials
Features
•
Accommodates the Functional Evaluation of the NB7NPQ1104M
•
Acts as a Reference Design that can Easily be Modified for Active
Cables, UFP (Upstream Facing Port), DFP (Downstream Facing
Port), and DRP (Dual Role Port) Applications
•
Type−A Plug and Receptacle to Easily Place in the Existing System
Environment
•
On Board Control Pins for Adjusting Settings without Compromising
Form Factor
Part Description
The NB7NPQ1104M is a 3.3 V quad channel, linear redriver for
USB 3.1 applications that supports both 5 and 10 Gbps data rates.
Signal integrity degrades from PCB traces and transmission cables
which may cause inter symbol interference (ISI). The
NB7NPQ1104M compensates for these losses by engaging varying
levels of equalization at the input receiver. The output transmitter
circuitry provides user selectable flat gain settings to create the best
eye openings for the outgoing data signals. The flexibility of this part
allows it to fit into many system applications.
After power up, the NB7NPQ1104M periodically checks both of the
TX output pairs of each port for a 50 W termination for a Super Speed
USB receiver. When the receiver is detected on either channel of
a port, the internal RX termination will be enabled of that respective
channel. The port becomes active once both TX outputs have detected
50 W termination, and the NB7NPQ1104M is set to perform the
redriver function. Port AB (channels A & B) and port CD (channels C
& D) are independent of each other.
This manual should be used in conjunction with the device datasheet
NB7NPQ1104M which contains full technical details on the device
specifications and operation.
© Semiconductor Components Industries, LLC, 2019
June, 2019 − Rev.0
EVAL BOARD USER'S MANUAL

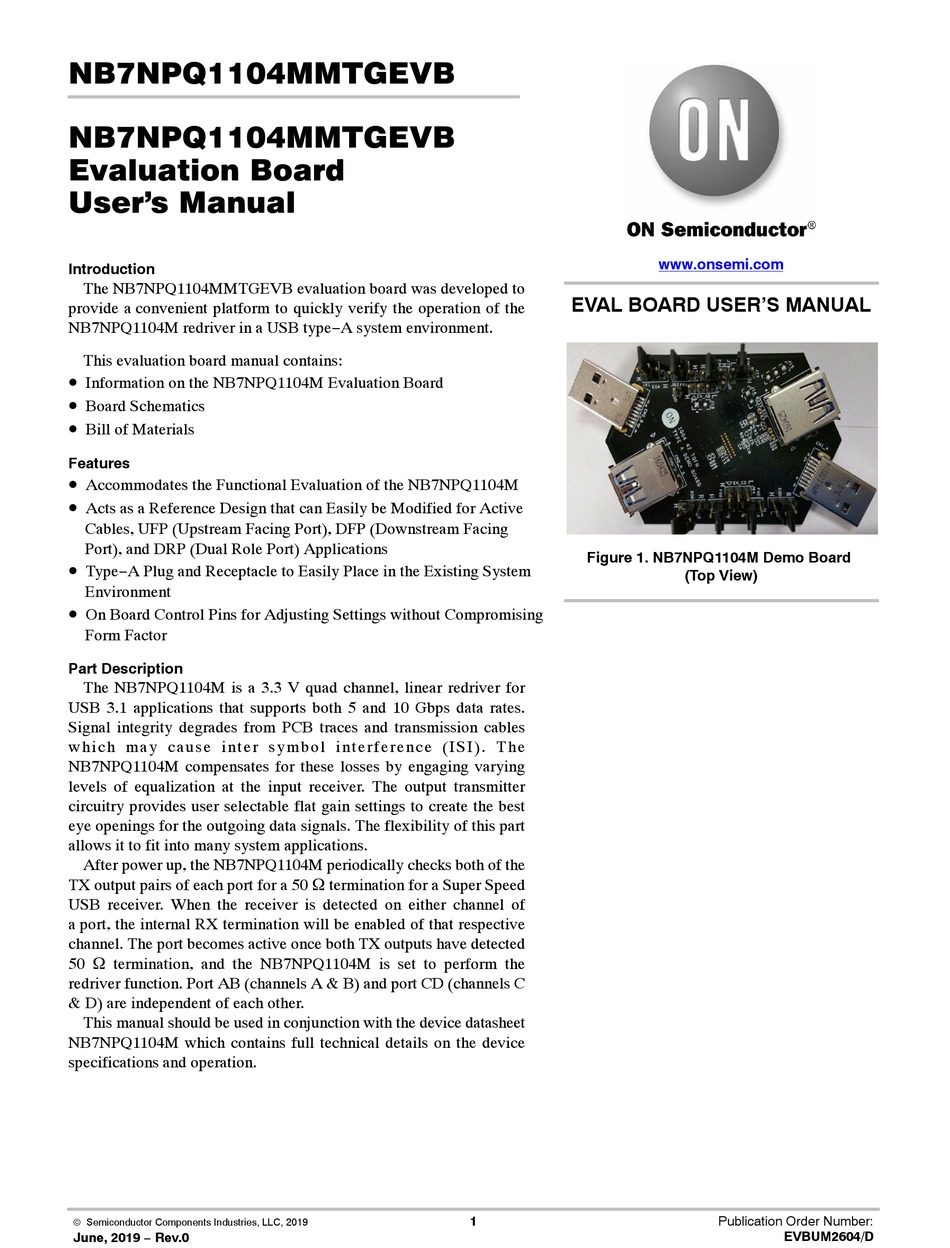

Figure 1. NB7NPQ1104M Demo Board
1
www.onsemi.com
(Top View)
Publication Order Number:
EVBUM2604/D
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ON Semiconductor NB7NPQ1104MMTGEVB
Summary of Contents for ON Semiconductor NB7NPQ1104MMTGEVB
- Page 1 Evaluation Board User's Manual www.onsemi.com Introduction The NB7NPQ1104MMTGEVB evaluation board was developed to EVAL BOARD USER’S MANUAL provide a convenient platform to quickly verify the operation of the NB7NPQ1104M redriver in a USB type−A system environment. This evaluation board manual contains: •...
- Page 2 NB7NPQ1104MMTGEVB BOARD MAP AND FUNCTIONAL SUMMARY Resistor R2, R17, (R18, R19 on the Bottom Side): and GND Pins: These Pins can be used to These are 0 W that connects to the USB 2.0 data line. Power the 1104 Device directly with 3.3 V supply and to...
- Page 3 NB7NPQ1104MMTGEVB Select Power Source This is useful if you cannot easily tell whether the The NB7NPQ1104MMTGEVB has the flexibility to be downstream facing port has acknowledged a Super powered through USB’s VBUS, or an external power Speed (+) connection with the inserted loss, or if it stepped supply.
- Page 4 NB7NPQ1104MMTGEVB COMPLETE BOARD SCHEMATICS 0402 EN_AB 0.1UF NC−1 EN_AB NC−0 RECEPTACLE VDD3P3_0 VDD3P3_6 TXp1 TXp1 P_SSTXp1 R_SSTXp1 RXAP TXAP PLUG TXn1 TXn1 R_SSTXn1 P_SSTXn1 RXAN TXAN TEST1#(VDD3P3) NC (VDD3P3)1 RECEPTACLE 0402 VDD3P3_1 VDD3P3_5 RXp1 RXp1 P_SSRXp1 R_SSRXp1 TXBP RXBP PLUG 0.1UF...
-
Page 5: Bill Of Materials
NB7NPQ1104MMTGEVB BILL OF MATERIALS Table 2. BILL OF MATERIALS Sl. No. Description Reference Manufacturer Manufacturer PN USB 3.1 Redriver ON Semiconductor NB7NPQ1104M 3.3 V Voltage Regulator ON Semiconductor NCP3335ADM330R2G USB Type−A Receptacle CN1_B, CN2_A Amphenol GSB4111312HR Commercial Products USB Type−A Plug... -
Page 6: Additional Information
onsemi, , and other names, marks, and brands are registered and/or common law trademarks of Semiconductor Components Industries, LLC dba “onsemi” or its affiliates and/or subsidiaries in the United States and/or other countries. onsemi owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of onsemi’s product/patent coverage may be accessed at www.onsemi.com/site/pdf/Patent−Marking.pdf.
