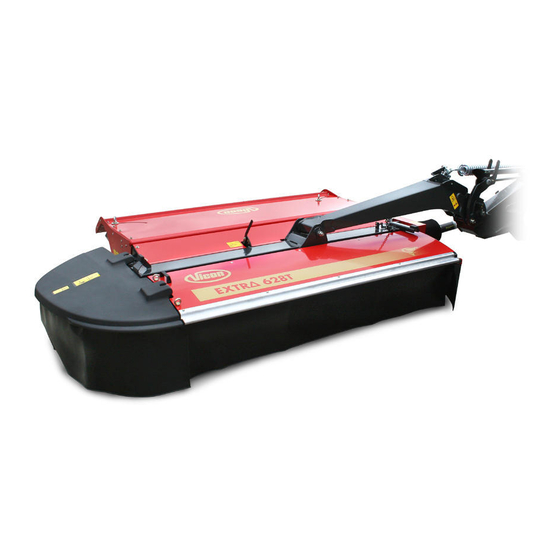

EXTR 628 FT - 632 FT -
Operator's Manual
Translated from the original instruction manual
Date of publication
Date printed
Language
Valid as from serial No.:
Reference No:
Index
635 FT
10/2011
10/2011
EN
KT 419.478
91000203EN
2011-10
