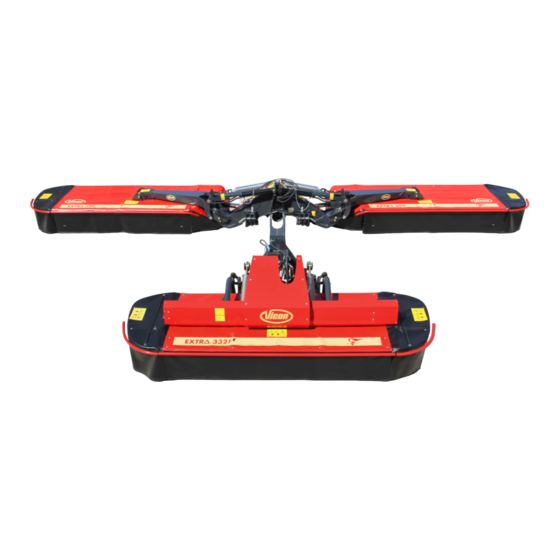

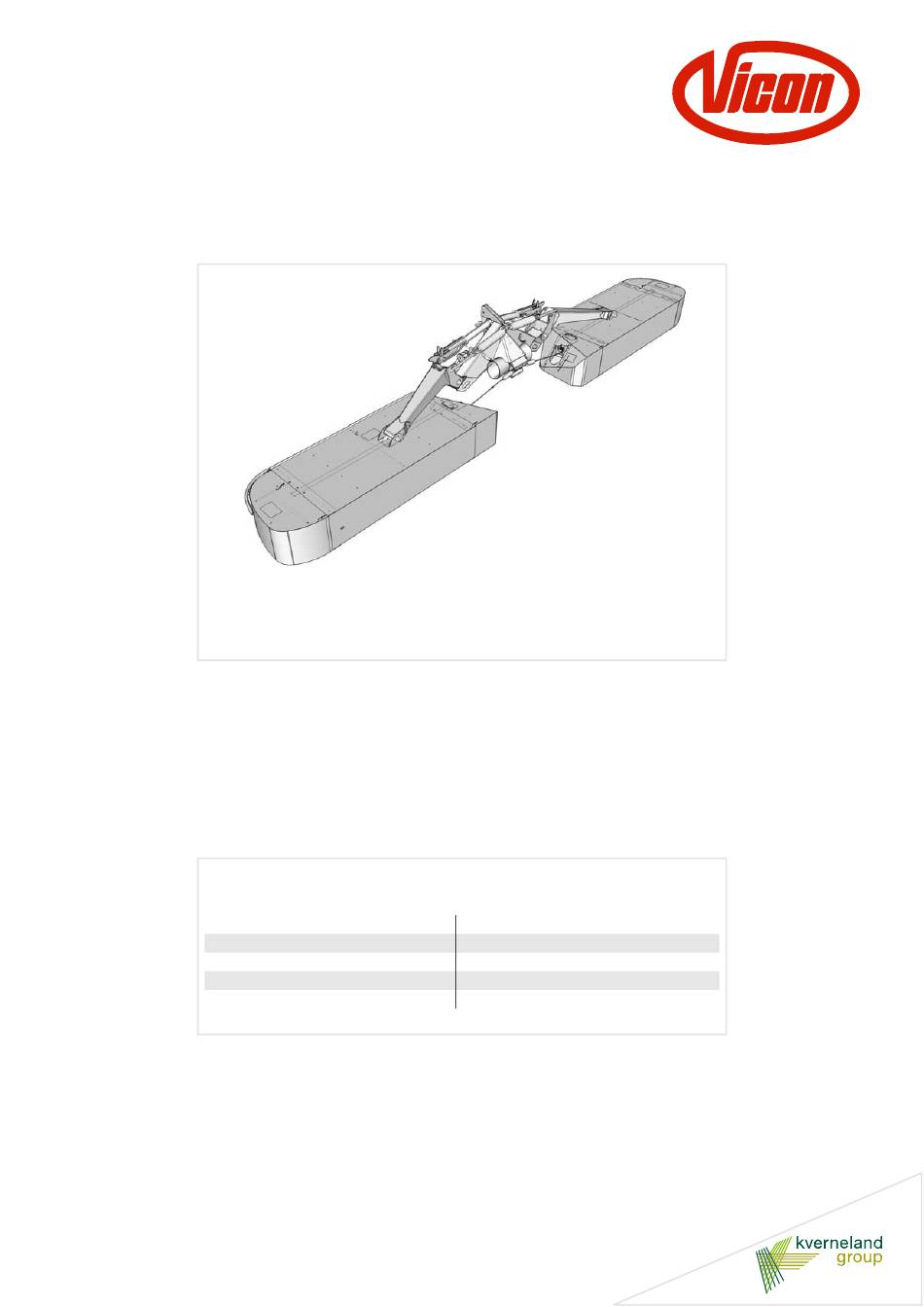

- Page 1 Extra 390 - 395 Assembly instructions Translated from the original assembly manual Version 01.2013 Date printed 02.2013 Language Document number KT19001211EN Index number 2013-01...
- Page 2 INSTRUCTIONS FOR RECIPIENTS These instructions describe how to unpack and assemble the machine. The machine is split into main components which are out together using these assembly instructions. Follow the order for assembly given in the instructions and use the size and type of bolt shown for assembling the parts - see the symbols below.
- Page 3 Contents The meaning of the symbols Contents This symbol indicates tips additional information. This warning triangle indicates important safety information and dangers. If this is not complied with, it can lead to: • Serious errors with the machine's operation. • Damage to the machine.
- Page 4 Assembly The transport safety device is removed from Assembly the hitch. Fit the hitch on the tractor. Red marking Connect the hydraulics to the tractor. Single colour marking: the hydraulic cylinder is driven out to max. Right length [+] cutting unit Double colour marking:...
- Page 5 Assembly Remove the bolt and bushing from the arm. Apply oil or grease to the bushings. 58.237.000 Inject some grease or viscous oil into the groove for the O-ring on both sides of the hinged points on the arm. ...
- Page 6 Assembly Fit the arm on the cutting units. The machine's cutting units can be moved 260 mm so that the attachment point is moved as shown. Moving the attachment point shortens the P.T.O shaft. See the Instruction manual for further instruc- tions.
- Page 7 Assembly Fit and secure the steel wire on both cutting units. Attach the PTO shafts to the transmission. Remember that the friction clutch on the PTO shaft must be fitted with the main gear. • PTO shaft for left side: 99252164 •...
- Page 8 Assembly Secure the PTO shafts with chains. Attach the PTO shaft to the cutting units. Do not forget the clamping ring! Fit and secure the guard on the cutting units. Rotate the sleeve so that the lubrication hole in the universal joint is turned as shown.
- Page 9 Assembly Raise the machine's cutting unit. Fit the chain on both arms with the number of chain links shown in the diagram. Model Recommended chain link Swivel the support leg down. Disconnect and park the machine. Support leg...
